SCHAEFFLER 6317-2Z-C3 Deep Groove Radial Ball Bearing 85 mm Bore x 180 mm OD x 41 mm W

Product Description

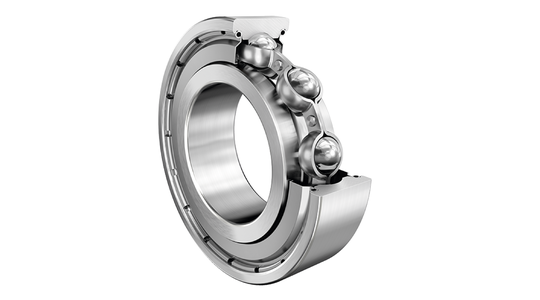

The Schaeffler 6317-2Z-C3 is a single row deep groove radial ball bearing with an eighty-five millimeter bore and a one hundred eighty millimeter outer diameter. This bearing features double shielding and a sheet steel cage for durability and reliability.

• Can support axial loads in both directions as well as radial loads.
• Designed for low friction, making them suitable for high-speed applications.
• Available in various sizes and designs with options for open and sealed types.

Product Highlights

The Schaeffler 6317-2Z-C3 provides strong performance and efficiency for various applications where load support is needed.

Product Information

Standard Information

• Brand: Schaeffler Group
• Part Number: 6317ZZ05

Technical Specifications

• Bore Diameter: 85 mm
• Outside Diameter: 180 mm
• Width: 41 mm
• Load Capacity (Dynamic): 141000 N
• Load Capacity (Static): 97000 N
• Cage Material: Sheet Steel
• Enclosure Type: Double Shield
• Speed Rating: 4300 rpm (Limiting), 5300 rpm (Reference)
• Temperature Rating: -30 to 120 °C
• Clearance: C3
• Lubrication Type: Grease
• Weight: 4.33 kg
