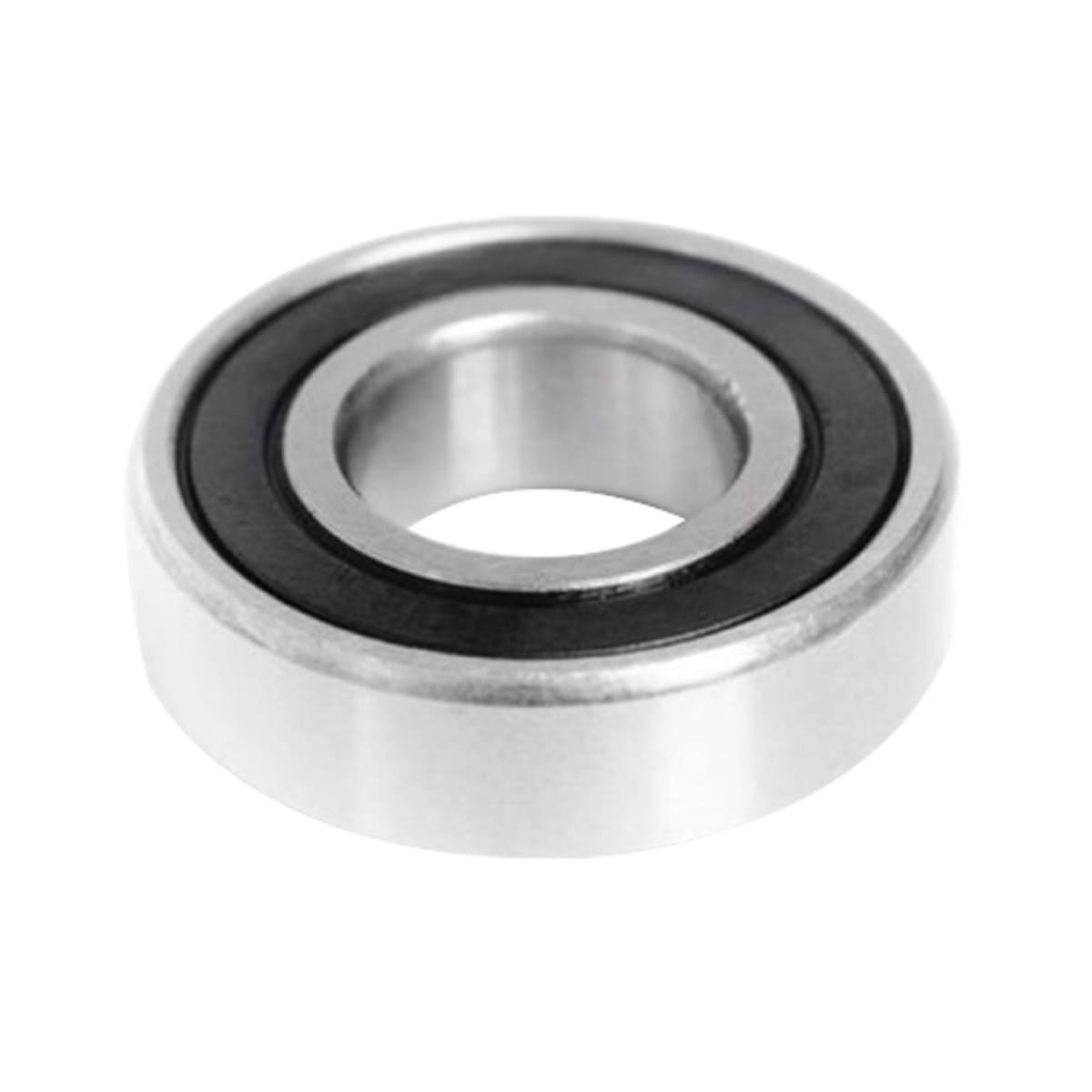

Schaeffler 6312-2RSR-C3 Deep Groove Radial Ball Bearing

Product Description

Schaeffler 6312-2RSR-C3 is a single row deep groove radial ball bearing with a bore diameter of sixty millimeters, an outer diameter of one hundred thirty millimeters, and a width of thirty-one millimeters. This bearing features a double seal and sheet steel cage. It is designed for high-speed applications and can support both radial and axial loads. The self-retaining design enhances stability and durability.

• Suitable for high-speed operations
• Double seal for enhanced protection against contaminants
• Versatile design for various applications

Product Highlights

These bearings are simple in design and easy to maintain. They come in open and sealed variants, making them adaptable to different environments. The C3 clearance rating allows for good fit and motion tolerance during operation.

Product Information

Standard Information

• Brand: Schaeffler Group
• Part Number: 6312-2RS05

Technical Specifications

• Bore Diameter: 60 mm
• Outside Diameter: 130 mm
• Width: 31 mm
• Dynamic Load Capacity: 89000 N
• Static Load Capacity: 52000 N
• Speed Rating: 3300 rpm
• Temperature Rating: -30 to 110 °C
• Cage Material: Sheet Steel
• Seal Material: Nitrile Butadiene Rubber
• Number of Rows: 1
• Lubrication Type: Grease
• Enclosure Type: Double Seal
• Clearance: C3
