Schaeffler 6310-2Z-L038-C3 Deep Groove Radial Ball Bearing

Product Description

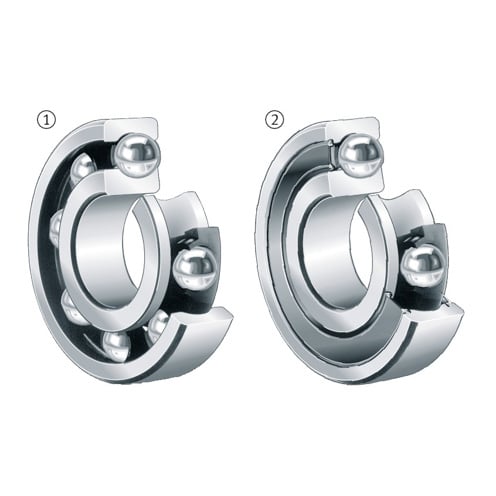

The Schaeffler 6310-2Z-L038-C3 is a deep groove radial ball bearing designed for versatile applications. This single row bearing features a bore diameter of fifty millimeters, an outer diameter of one hundred ten millimeters, and a width of twenty-seven millimeters.

• Self-retaining design with solid outer and inner rings.
• Suitable for high-speed applications.
• Double shield for enhanced protection against contaminants.

Product Highlights

This bearing is ideal for applications requiring durability and effective load handling.

Product Information

Standard Information

• Brand: Schaeffler Group
• MPN: 6310-2Z-L038-C3

Technical Specifications

• Bore Diameter: 50 mm
• Outside Diameter: 110 mm
• Width: 27 mm
• Dynamic Load Capacity: 68000 N
• Static Load Capacity: 38500 N
• Clearance: C3
• Speed Rating: 8000 rpm Limiting, 7700 rpm Reference
• Temperature Rating: -30 to 120 °C
