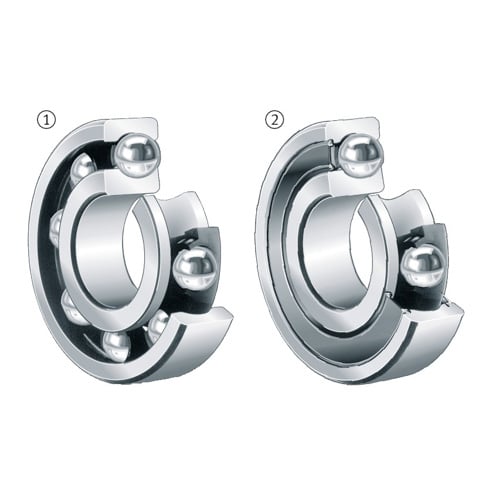

Schaeffler 6309-2RSR-L038-C3 Deep Groove Radial Ball Bearing

Product Description

Schaeffler 6309-2RSR-L038-C3 is a single row deep groove radial ball bearing. It features a bore diameter of forty-five millimeters, an outer diameter of one hundred millimeters, and a width of twenty-five millimeters. The bearing is designed for high-speed applications with a temperature rating of minus thirty to one hundred ten degrees Celsius.

• Constructed with solid outer rings and inner rings.
• Double seal design enhances protection against contaminants.
• Suitable for high-speed use, offering low frictional torque.

Product Highlights

This bearing is versatile and easy to maintain, making it a reliable choice for various mechanical applications.

Product Information

Standard Information

• Brand: Schaeffler Group
• Part Number: 6309-2RS05

Technical Specifications

• Bore Diameter: 45 mm
• Outside Diameter: 100 mm
• Width: 25 mm
• Dynamic Load Capacity: 56000 N
• Static Load Capacity: 31500 N
• Temperature Rating: 110 °C
• Clearance: C3
• Cage Material: Sheet Steel
• Seal Material: Nitrile Butadiene Rubber
• Enclosure Type: Double Seal
• Lubrication Type: Grease
