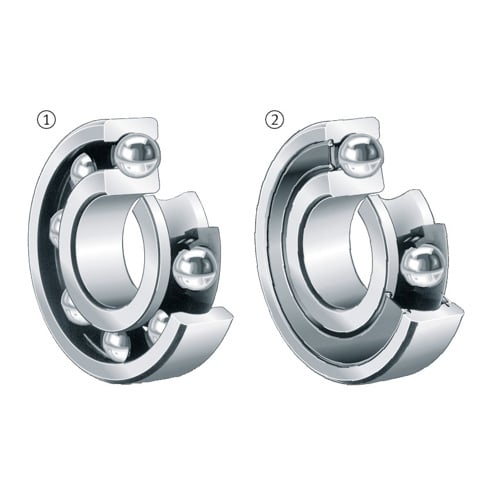

Schaeffler 6308-2Z-L038-C3 Single Row Deep Groove Radial Ball Bearing 40 mm Bore x 90 mm OD x 23 mm W

Product Description

The Schaeffler 6308-2Z-L038-C3 is a single row deep groove radial ball bearing designed for versatile applications. It features a bore diameter of forty millimeters, an outside diameter of ninety millimeters, and a width of twenty-three millimeters. This bearing comes with double shields made of sheet steel, providing protection against contaminants.

• Supports both radial and axial loads.
• Designed for high speed operations.
• Available with either open or sealed variants.

Product Highlights

This model is engineered for durability and efficiency, making it suitable for various machinery applications.

Product Information

Standard Information

• Brand: Schaeffler Group
• MPN: 6308-2Z-L038-C3

Technical Specifications

• Bore Diameter: 40 mm
• Outside Diameter: 90 mm
• Width: 23 mm
• Cage Material: Sheet Steel
• Enclosure Type: Double Shield
• Number of Rows: 1
• Dynamic Load Capacity: 45500 N
• Static Load Capacity: 25000 N
• Lubrication Type: Grease
• Temperature Rating: -30 to 120 °C
• Speed Rating: 9100 rpm Limiting
