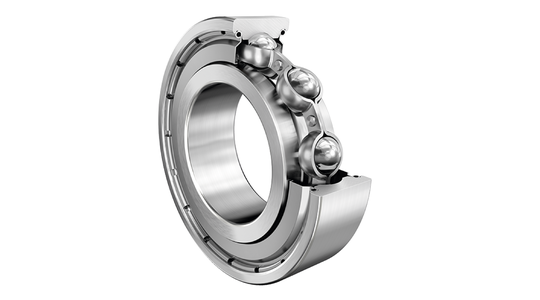

Schaeffler 6306-2Z-L038-C3 Deep Groove Radial Ball Bearing, 30 mm Bore x 72 mm OD x 19 mm W

Product Description

The Schaeffler 6306-2Z-L038-C3 is a single row deep groove radial ball bearing designed for high-speed applications. It features a bore diameter of thirty millimeters, an outside diameter of seventy-two millimeters, and a width of nineteen millimeters. This bearing type provides excellent performance in both radial and axial load support.

• Supports high-speed operations.
• Double shielded for added protection against contaminants.
• Made with a sheet steel cage for durability.

Product Highlights

This bearing combines simple design with robust operation. It is easy to maintain and is available in various designs, including open and sealed variants.

Product Information

Standard Information

• Brand: Schaeffler Group
• Part Number: 6306ZZ05

Technical Specifications

• Bore Diameter: 30 mm
• Outside Diameter: 72 mm
• Width: 19 mm
• Dynamic Load Capacity: 30500 N
• Static Load Capacity: 16200 N
• Clearance: C3
• Temperature Rating: -30 to 120 °C
• Speed Rating: 11700 rpm limiting
