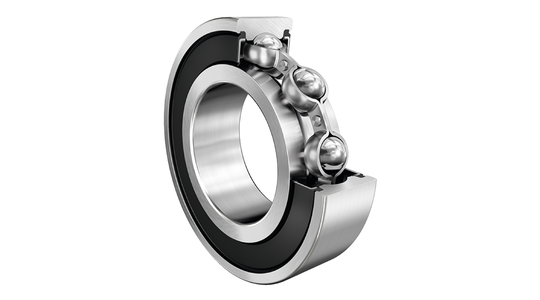

Schaeffler 6306-2RS05 Single Row Deep Groove Radial Ball Bearing, 30 mm Bore x 72 mm OD x 19 mm W + Replacement MPN

Product Description

The Schaeffler 6306-2RS05 is a single row deep groove radial ball bearing designed for various applications. This bearing features a bore diameter of thirty millimeters and an outer diameter of seventy-two millimeters, with a width of nineteen millimeters. It includes double seals to protect against contaminants, making it suitable for high-speed operations.

• Versatile self-retaining design
• Suitable for both radial and axial loads
• Low friction for high-speed applications

Product Highlights

This bearing is ideal for use in machinery that requires reliable and efficient performance under various conditions. Its simple design allows for easy maintenance.

Product Information

Standard Information

• Brand: Schaeffler Group
• MPN: 6306-2RSR-L038-C3

Technical Specifications

• Bore Diameter: 30 mm
• Outside Diameter: 72 mm
• Width: 19 mm
• Dynamic Load Capacity: 30500 N
• Static Load Capacity: 16200 N
• Clearance: C3
• Temperature Rating: -30 to 110 °C
• Speed Rating: 6000 rpm
