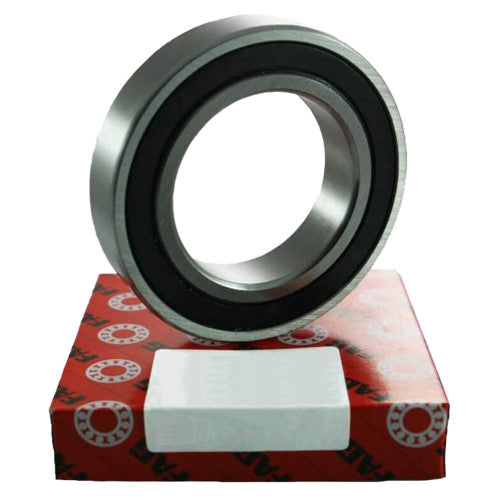

Schaeffler 6218-2RSR-C3 Deep Groove Radial Ball Bearing, 90 mm Bore x 160 mm OD x 30 mm W, Double Seal

Product Description

The Schaeffler 6218-2RSR-C3 is a deep groove radial ball bearing designed for high performance with a bore diameter of ninety millimeters. This bearing features a double seal for protection against contaminants, enhancing durability and reliability in various applications.

• Solid outer and inner rings along with a ball and cage assembly
• Suitable for high-speed operations
• Low frictional torque for improved efficiency

Product Highlights

This single row bearing is well-suited for both radial and axial loads, making it versatile for different machinery and equipment.

Product Information

Standard Information

• Brand: Schaeffler Group
• Part Number: 6218-2RS05

Technical Specifications

• Bore Diameter: 90 mm
• Outside Diameter: 160 mm
• Width: 30 mm
• Cage Material: Sheet Steel
• Seal Material: Nitrile Butadiene Rubber
• Enclosure Type: Double Seal
• Number of Rows: 1
• Lubrication Type: Grease
• Dynamic Load Capacity: 102000 N
• Static Load Capacity: 74000 N
• Temperature Rating: -30 to 110 °C
• Clearance: C3
• Speed Rating: 2380 rpm
