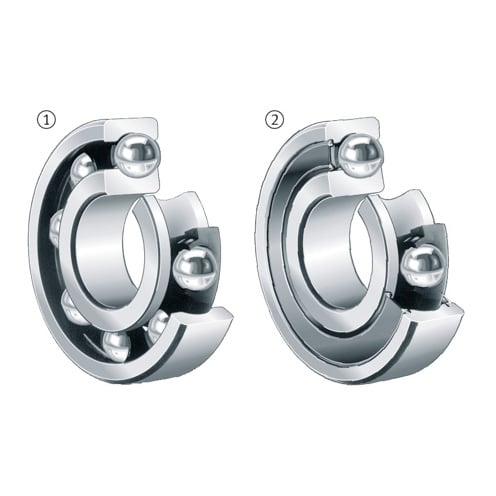

Schaeffler 6212-2Z-L038-C3 Deep Groove Radial Ball Bearing

Product Description

The Schaeffler 6212-2Z-L038-C3 is a single row deep groove radial ball bearing. This component features a bore diameter of sixty millimeters and an outer diameter of one hundred ten millimeters with a width of twenty-two millimeters. This ball bearing is designed for versatile applications, making it a reliable choice for trade professionals.

• Single row design for robust stability
• Double shield feature for enhanced protection
• Grease lubrication for reduced maintenance

Product Highlights

The Schaeffler deep groove ball bearing provides high speed capabilities with low frictional torque, supporting both radial and axial loads efficiently.

Product Information

Standard Information

• Brand: Schaeffler Group
• MPN: 6212-2Z-L038-C3

Technical Specifications

• Bore Diameter: 60 mm
• Outside Diameter: 110 mm
• Width: 22 mm
• Cage Material: Sheet Steel
• Enclosure Type: Double Shield
• Dynamic Load Capacity: 57000 N
• Static Load Capacity: 36500 N
• Temperature Rating: -30 to 120 °C
• Speed Rating: 7900 rpm Limiting, 6800 rpm Reference
