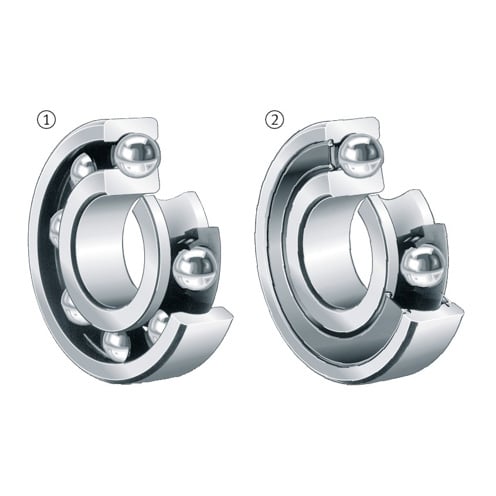

Schaeffler 6210-2Z-L038-C3 Single Row Deep Groove Radial Ball Bearing 50 mm Bore x 90 mm OD x 20 mm W

Product Description

The Schaeffler 6210-2Z-L038-C3 is a single row deep groove radial ball bearing designed for versatility and reliability. This bearing features a bore of fifty millimeters and an outer diameter of ninety millimeters, making it suitable for a variety of applications.

• Low frictional torque suitable for high speeds
• Double shield design for enhanced protection
• Self-retaining for ease of use and installation

Product Highlights

This bearing offers excellent load capacity and is ideal for both radial and axial loads.

Product Information

Standard Information

• Brand: Schaeffler Group
• MPN: 6210-2Z-L038-C3

Technical Specifications

• Bore Diameter: 50 mm
• Outside Diameter: 90 mm
• Width: 20 mm
• Cage Material: Sheet Steel
• Lubrication Type: Grease
• Enclosure Type: Double Shield
• Static Load Capacity: 24200 N
• Dynamic Load Capacity: 39000 N
• Speed Rating: 9000 rpm Limiting, 8200 rpm Reference
• Temperature Rating: -30 to 120 °C
