Schaeffler 6209-2Z-L038-C3 Single Row Deep Groove Radial Ball Bearing 20.63

Product Description

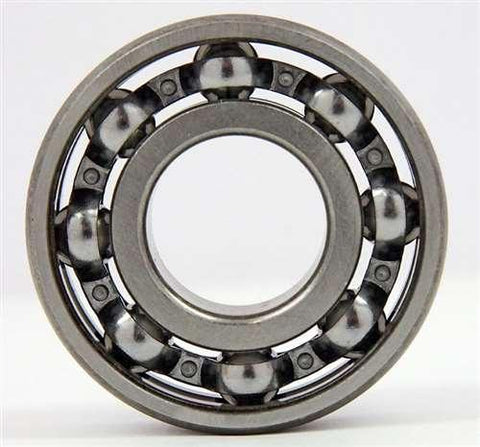

Schaeffler 6209-2Z-L038-C3 is a deep groove radial ball bearing designed for high speed applications. This bearing features a bore diameter of forty-five millimeters and an outside diameter of eighty-five millimeters. It is crafted with a double shield and has a sheet steel cage for added durability.

• Supports both radial and axial loads
• Capable of operating at speeds up to 9800 rpm
• Temperature rated from minus thirty to one hundred twenty degrees Celsius

Product Highlights

This single row deep groove ball bearing is versatile and easy to maintain, making it suitable for various applications.

Product Information

Standard Information

• Brand: Schaeffler Group
• MPN: 6209-2Z-L038-C3

Technical Specifications

• Bore Diameter: 45 mm
• Outside Diameter: 85 mm
• Width: 19 mm
• Static Load Capacity: 20300 N
• Dynamic Load Capacity: 33000 N
• Speed Rating: 9800 rpm
• Cage Material: Sheet Steel
• Lubrication Type: Grease
