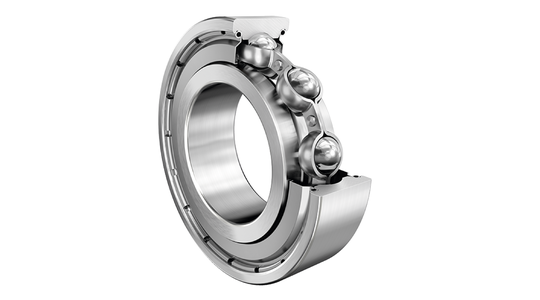

Schaeffler 6204-2Z-C3 Deep Groove Radial Ball Bearing

Product Description

The Schaeffler 6204-2Z-C3 is a single row deep groove radial ball bearing designed for multiple applications. It features a bore diameter of twenty millimeters and an outside diameter of forty-seven millimeters, making it suitable for high-speed operations. This bearing has a robust design with double shields, enhancing its durability and lubrication retention.

• Designed for high-speed applications
• Self-retaining design for easy maintenance
• Manufactured with a double shield for added protection

Product Highlights

This bearing can handle radial and axial loads in both directions, making it versatile for various mechanical needs.

Product Information

Standard Information

• Brand: Schaeffler Group
• Part Number: 6204ZZ05

Technical Specifications

• Bore Diameter: 20 mm
• Outside Diameter: 47 mm
• Width: 14 mm
• Cage Material: Sheet Steel
• Enclosure Type: Double Shield
• Static Load Capacity: 6600 N
• Dynamic Load Capacity: 13600 N
• Temperature Rating: -30 to 120 °C
