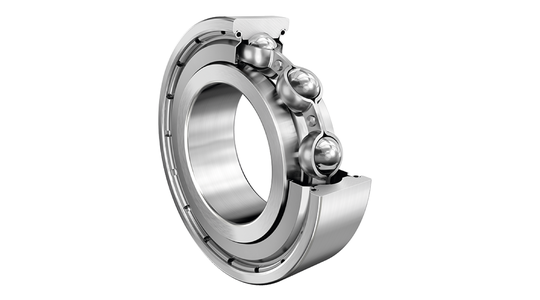

Schaeffler 6202-C-2Z-L038-C3 V Single Row Deep Groove Radial Ball Bearing

Product Description

The Schaeffler 6202-C-2Z-L038-C3 V is a single row deep groove radial ball bearing. This bearing is designed to accommodate both radial and axial loads. It features a solid outer ring, inner ring, and ball and cage assembly. The design makes it suitable for high-speed applications.

• Deep groove design supports radial and axial loads.
• Double shielded for reduced contamination.
• Manufactured in a compact size, suitable for various applications.

Product Highlights

This bearing is ideal for demanding applications requiring reliability and high performance.

Product Information

Standard Information

• Brand: Schaeffler Group
• Part Number: 6202ZZ05

Technical Specifications

• Bore Diameter: 15 mm
• Outside Diameter: 35 mm
• Width: 11 mm
• Dynamic Load Capacity: 8200 N
• Static Load Capacity: 3750 N
• Cage Material: Sheet Steel
• Enclosure Type: Double Shield
• Speed Rating: 25500 rpm Limiting
• Temperature Rating: -30 to 120 °C
