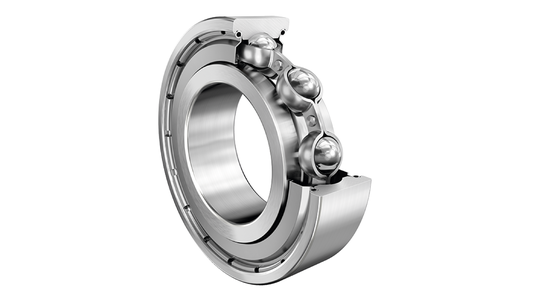

Schaeffler 6201-2Z-L038-C3 Deep Groove Radial Ball Bearing

Product Description

The Schaeffler 6201-2Z-L038-C3 is a deep groove radial ball bearing designed for various applications. This model features a bore diameter of twelve millimeters, an outer diameter of thirty-two millimeters, and a width of ten millimeters. It is equipped with a double shield for added protection and a sheet steel cage for durability.

• Designed for high-speed use
• Effective gap seals on both sides
• Single row design for versatile applications

Product Highlights

This bearing provides excellent load capacity and is suitable for dynamic applications.

Product Information

Standard Information

• Brand: Schaeffler Group
• Series: 6201

Technical Specifications

• Bore Diameter: 12 mm
• Outside Diameter: 32 mm
• Width: 10 mm
• Dynamic Load Capacity: 7300 N
• Static Load Capacity: 3100 N
• Temperature Rating: -30 to 120 °C
• Speed Rating: 28500 rpm Limiting
• Cage Material: Sheet Steel
