Schaefer Brush 43703 Condenser Tube Brush 5/16 in Nylon

Product Description

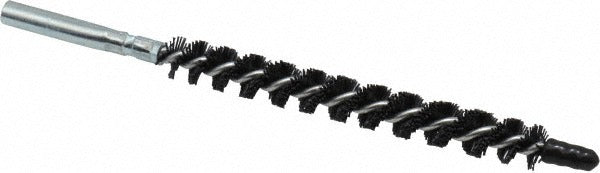

The SCHAEFER BRUSH 43703 is a single stem spiral condenser tube brush designed for cleaning the interior of condenser tubes in HVAC and refrigeration equipment. The brush measures 5/16 inches in diameter with a 6-1/4 inch overall length and a 4-inch brush length. Nylon bristles provide effective mechanical cleaning of tube walls without scoring or damaging softer tube materials. The 8-32 female threaded connection accepts standard brush extension rods, allowing technicians to reach deeper into tube bundles as needed. This brush is a standard hand-tool item for preventive maintenance on condensers, chillers, and heat exchangers.

This brush is used in routine maintenance of HVAC condensers, chiller tube bundles, and heat exchanger tubes found in both residential and commercial refrigeration systems. It is well suited for field service technicians and in-shop cleaning operations where tube fouling from scale, algae, or debris reduces heat transfer efficiency. The compact 5/16-inch diameter fits standard small-bore condenser and evaporator tube sizes commonly found in split systems and packaged units.

Key Features

• 5/16 inch brush diameter fits small-bore condenser and evaporator tubes
• Nylon bristles clean effectively without scoring or damaging tube walls
• 4-inch brush length provides thorough coverage of tube bore per pass
• 6-1/4 inch overall length for direct hand use or rod attachment
• 8-32 female threaded connection accepts standard extension rods for deep-reach applications
• Lightweight at 0.04 pounds, suitable for repeated use during multi-tube cleaning operations

Compatibility

Designed as a standard replacement and maintenance tube brush for HVAC and refrigeration condenser tube cleaning applications requiring a 5/16-inch diameter nylon-bristle brush with an 8-32 female threaded connection.

Installation Notes

This brush is used by HVAC technicians and refrigeration service professionals during scheduled preventive maintenance. Isolate and lock out the refrigerant circuit or chilled-water loop before opening any tube bundle for cleaning. Attach extension rods as needed to reach full tube depth, and ensure the 8-32 female connection is fully threaded onto the rod before inserting into the tube. Inspect bristles for wear after extended use and replace when bristle density is reduced to maintain cleaning effectiveness.
