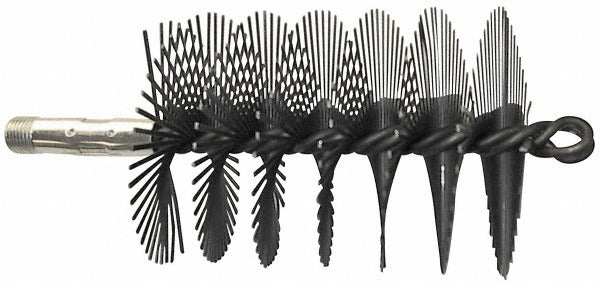

Schaefer Brush 43034 Flue Scraper 3-1/2 in Dia 7-3/4 in Oal

Product Description

The SCHAEFER BRUSH 43034 is a flat wire single spiral flue scraper designed to remove deposits and buildup from the interior walls of flue passages and heat exchanger tubes. Built from tempered steel wire, this scraper delivers the mechanical rigidity needed to break loose scale, soot, and corrosion without collapsing under load. At 3-1/2 inches in diameter with a 4-1/2-inch brush length and an overall length of 7-3/4 inches, it fits a specific range of flue openings commonly found in residential and light commercial heating equipment. The 1/4-inch male NPSM connection allows it to attach to standard extension rods, making it practical for deep flue runs. HVAC technicians and chimney service pros are the primary installers of this tool.

This scraper is suited for flue cleaning during annual preventive maintenance on gas furnaces, boilers, and water heaters. It is also used in heat exchanger tube cleaning applications where consistent spiral contact improves cleaning coverage along the full bore of the passage. The tempered steel wire construction holds its spiral form through repeated use in abrasive environments. It is commonly deployed during combustion-season prep and post-season inspection work where flue debris removal is required before efficiency or safety testing.

Key Features

• Flat wire single spiral design maintains consistent wall contact through the full bore of the flue
• Tempered steel wire construction resists deformation under mechanical load
• 3-1/2-inch diameter fits a specific range of residential and light commercial flue passages
• 4-1/2-inch brush length provides effective scraping coverage per pass
• 1/4-inch male NPSM connection threads onto standard extension rods for deep-reach access
• Compact 7-3/4-inch overall length allows use in tight or restricted access situations

Compatibility

Designed as an OEM-style flue scraper for use with standard 1/4-inch NPSM extension rod systems on residential and light commercial flue cleaning equipment.

Installation Notes

This tool is installed and operated by HVAC technicians, boiler technicians, and chimney service professionals. Always ensure the heating appliance is shut down and fully cooled before inserting any cleaning tool into the flue or heat exchanger. Inspect the NPSM threaded connection for full engagement before applying rotational force to avoid thread stripping or tool separation inside the flue. Follow applicable NFPA and IFGC guidelines for flue inspection and cleaning procedures.
