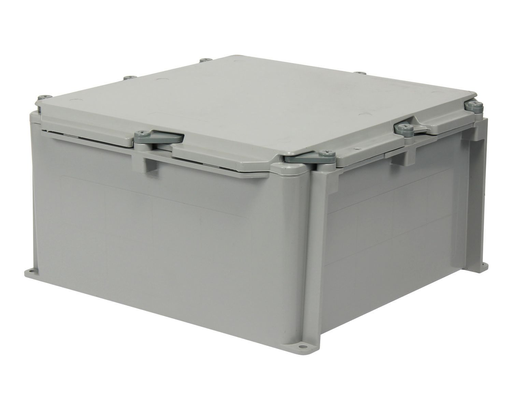

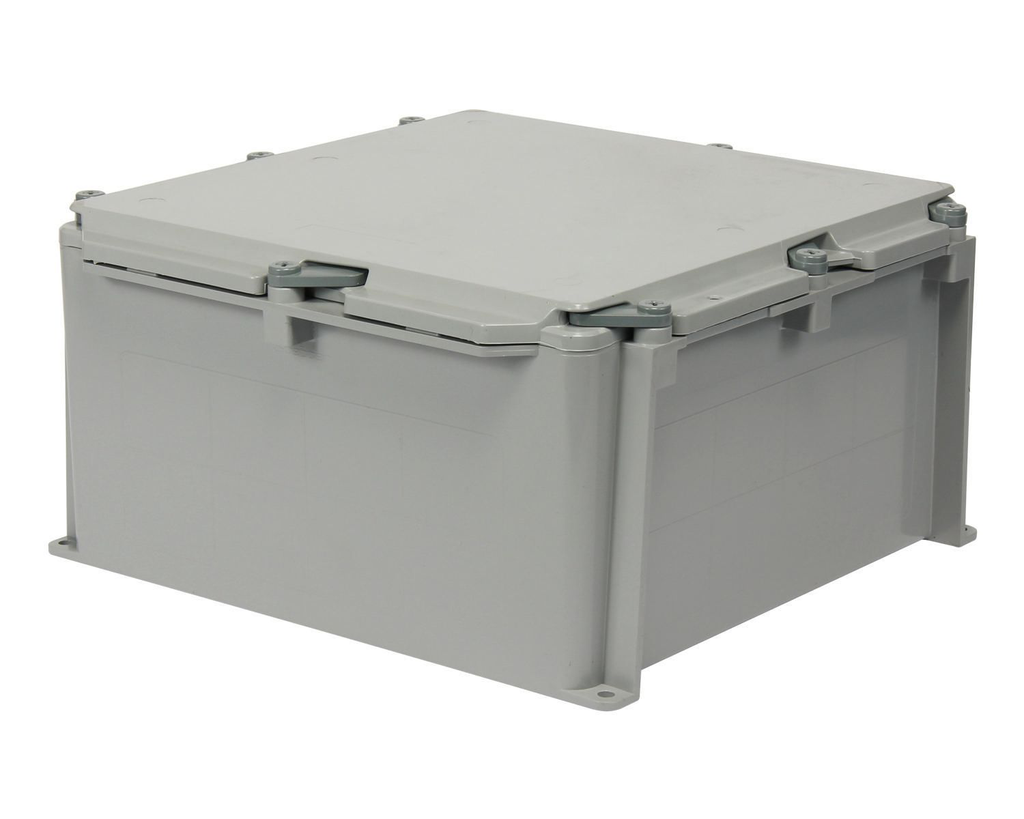

Scepter 277009(JBX12126) PVC Junction Box - 12 x 12 x 6 in

Product Description

The Scepter 277009(JBX12126) is a PVC junction box designed to measure twelve by twelve by six inches. This product is made of molded PVC and is non-metallic, offering strong resistance to corrosion. It is suitable for both indoor and outdoor electrical applications. The junction box provides NEMA Type 1, 2, 3R, 4, 4X, 6, 6P, 12, and 13 protection against various environmental conditions.

• Offers durability with a permanently fixed gasket attached to the cover.
• Equipped with molded mounting feet for easy surface mounting and conduit connections.
• Facilitates knockout drilling with built-in gridlines.

Product Highlights

This junction box is ideal for enclosing joints and splices, as well as housing electrical equipment in non-hazardous locations, adhering to CSA and UL standards for safety.

Product Information

Standard Information

• Material: PVC
• Color: Gray

Technical Specifications

• Weight: 3.609 kg
• Dimensions: 12 in x 12 in x 6 in
• NEMA Rating: 1, 2, 3R, 4, 4X, 6, 6P, 12, 13
• Mounting Type: Surface
• Suitable For Use With: Rigid Non-Metallic Conduit System
