Scepter 029559(IS5545) SCEPTER 4 x 3 Intermediate Vertical-Lok Spacer REPLACEMENT MPN

Product Description

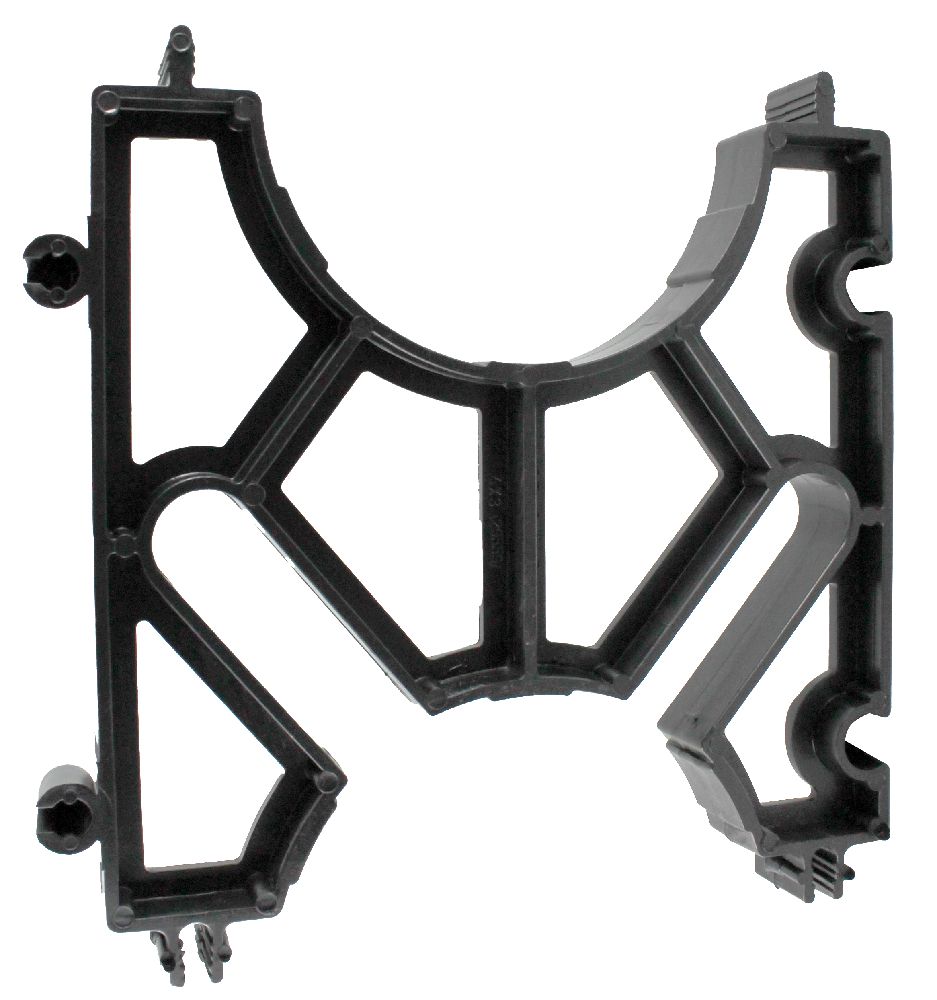

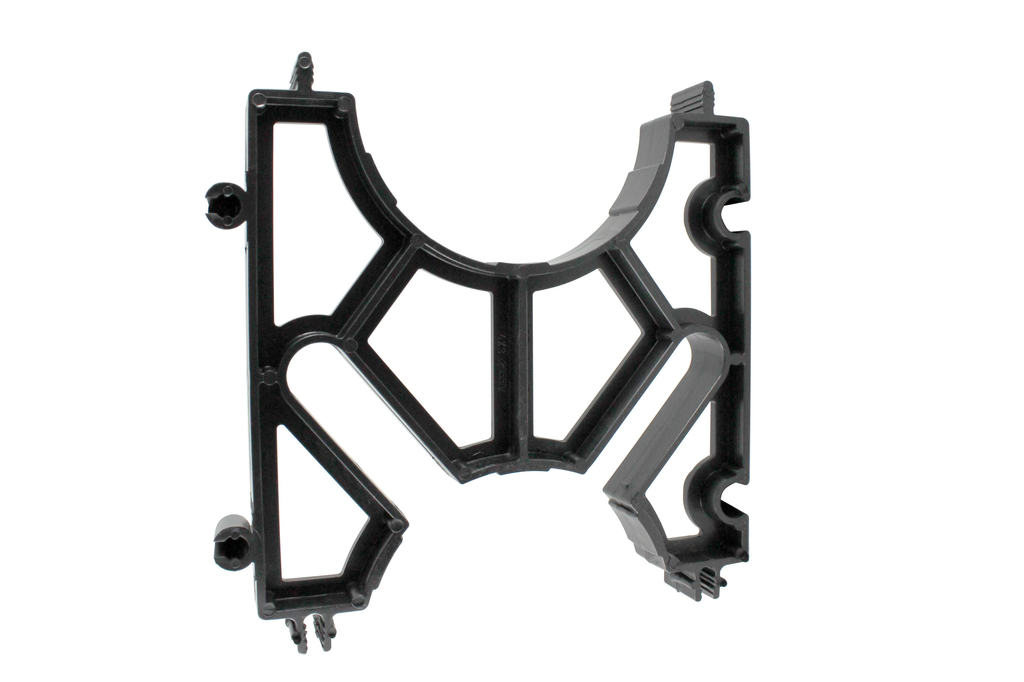

The Scepter 029559 (IS5545) is a four inch by three inch Intermediate Vertical-Lok utility duct spacer made from PVC. This product is used in communication and utility installations, especially for underground duct bank supports. It maintains uniform spacing between conduit rows and columns, providing a solid structure for concrete encasement.

• Offers uniform separation for conduits in duct bank setups.
• Features a snap-fit system for easy assembly in both orientations.
• Includes molded slots for rebar placement.

Product Highlights

This spacer is designed for various applications, including utilities, residential, and infrastructure projects.

Product Information

Standard Information

• Part Description: Utility Duct Spacer
• Country of Origin: United States

Technical Specifications

• Type: Intermediate, Vertical Lock (IVL)
• Duct Size: 4 inches x 3 inches
• Duct Spacing: 3 inches
• Material: PVC
• Connection Type: Snap Fit
• Temperature Rating: One hundred twenty-two degrees Fahrenheit
• Applicable Standards: NEMA TC2, NSF
• Approvals: UL, CSA
