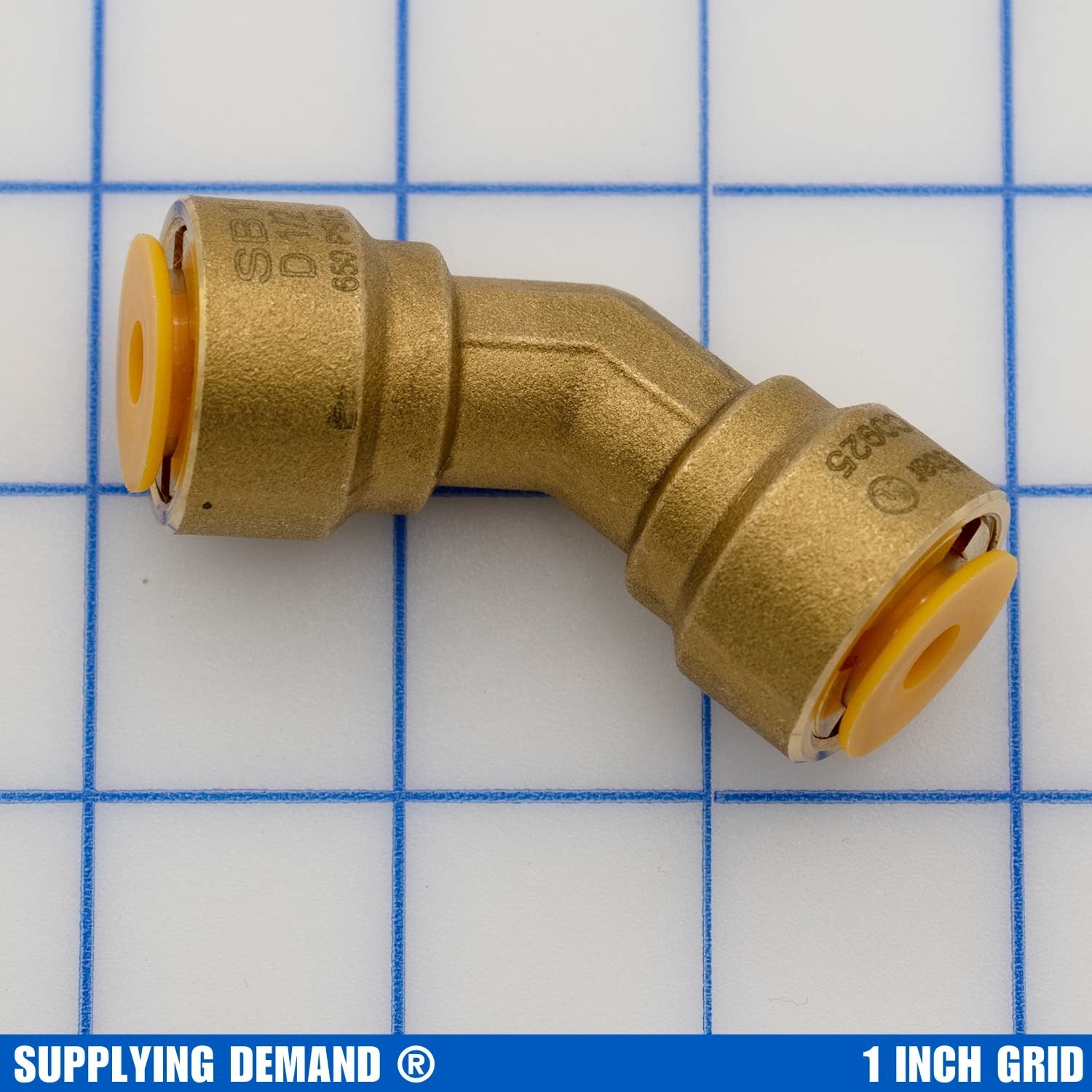

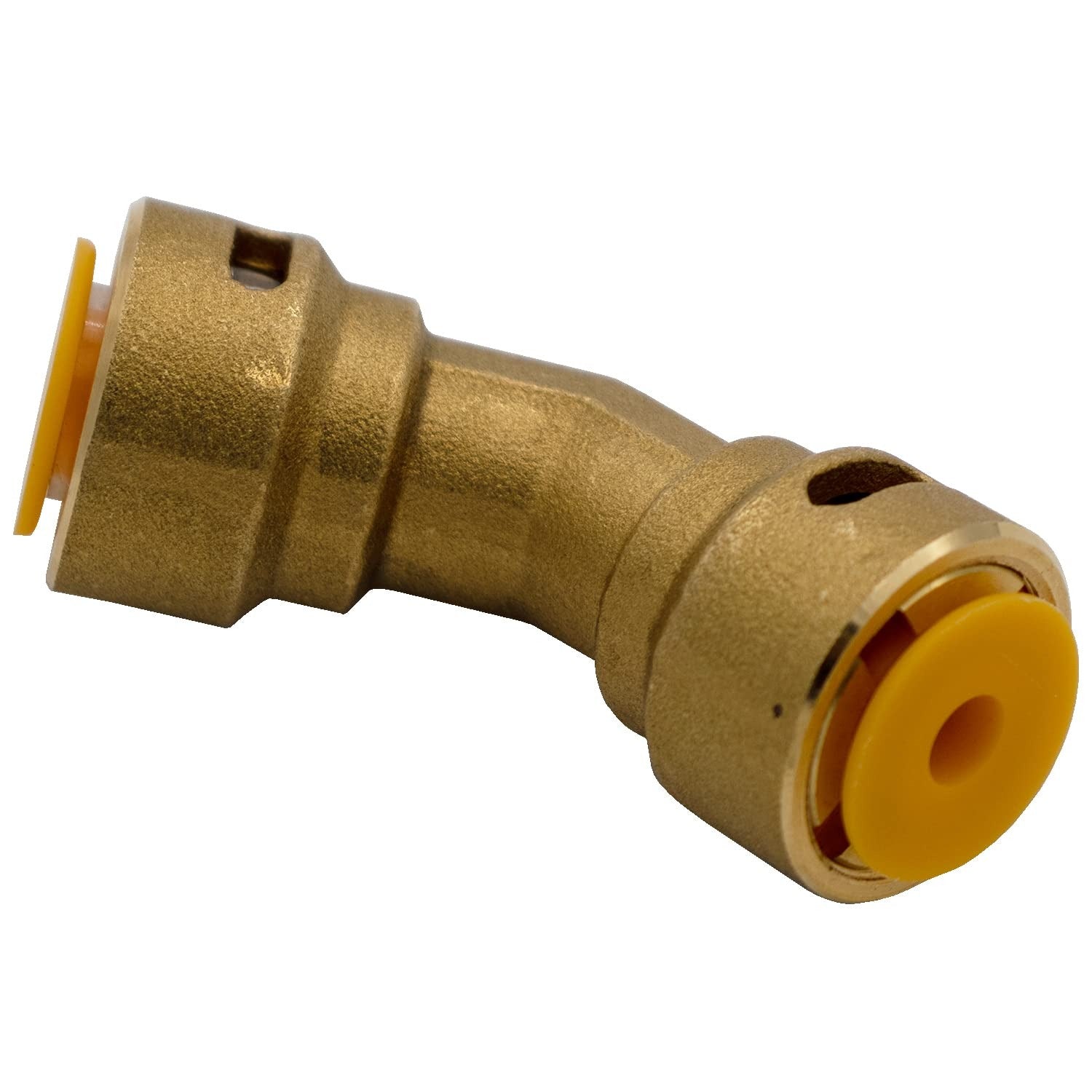

SBE4512 45-degree Quick Connect Brass Elbow 1/2 Inch Hvac

Product Description

The SBE4512 is a 45-degree quick-connect brass elbow fitting designed for use in HVAC refrigerant line assemblies. Built with a C3771 brass body and polycarbonate components, this fitting allows field technicians to make secure, leak-tight connections without brazing, nitrogen purge, or specialty tools. It measures 0.500 inches at the connection size with a 1.339-inch outside diameter and a 3/4-16 UNF connection thread. The fitting is rated to a maximum working pressure of 870 PSI and a minimum burst pressure of 3,600 PSI, making it suitable for demanding refrigerant system service work. Licensed HVAC technicians and refrigeration mechanics are the primary installers.

This fitting is approved for use with hard drawn copper tubing in sizes 1/4 through 7/8 inch, type ACR, M, L, and K. It is also approved for hard soft copper (annealed) in sizes 1/4 through 7/8 inch, type ACR, L, and K. Typical applications include residential and light commercial HVAC refrigerant line sets where a 45-degree directional change is required and field brazing is not practical or permitted. The chloroprene O-ring seals the connection across a temperature range of -40 degrees F to 250 degrees F, covering the full span of standard refrigerant system operating conditions.

Key Features

• No brazing, nitrogen purge, or specialty tools required for installation
• C3771 brass body construction for corrosion resistance in refrigerant service
• Rated to 870 PSI maximum working pressure and 3,600 PSI minimum burst pressure
• Vacuum-capable to 30 microns, suitable for system evacuation verification
• Chloroprene O-ring rated from -40 degrees F to 250 degrees F continuous operating temperature
• Compatible with hard drawn and annealed copper tubing, 1/4 through 7/8 inch, types ACR, M, L, and K

Compatibility

Designed as an OEM-style replacement fitting compatible with major HVAC brands; always verify fitment with the specific application and tubing type before installation. Approved for hard drawn copper type ACR, M, L, K and hard soft copper (annealed) type ACR, L, K in sizes 1/4 through 7/8 inch.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician in accordance with applicable mechanical codes. Before installing or removing any refrigerant line fitting, recover refrigerant per EPA Section 608 requirements and relieve system pressure completely. Ensure tubing ends are cut cleanly and deburred before seating into the fitting to achieve a proper O-ring seal. Do not exceed the maximum rated pressure of 870 PSI during pressure testing.
