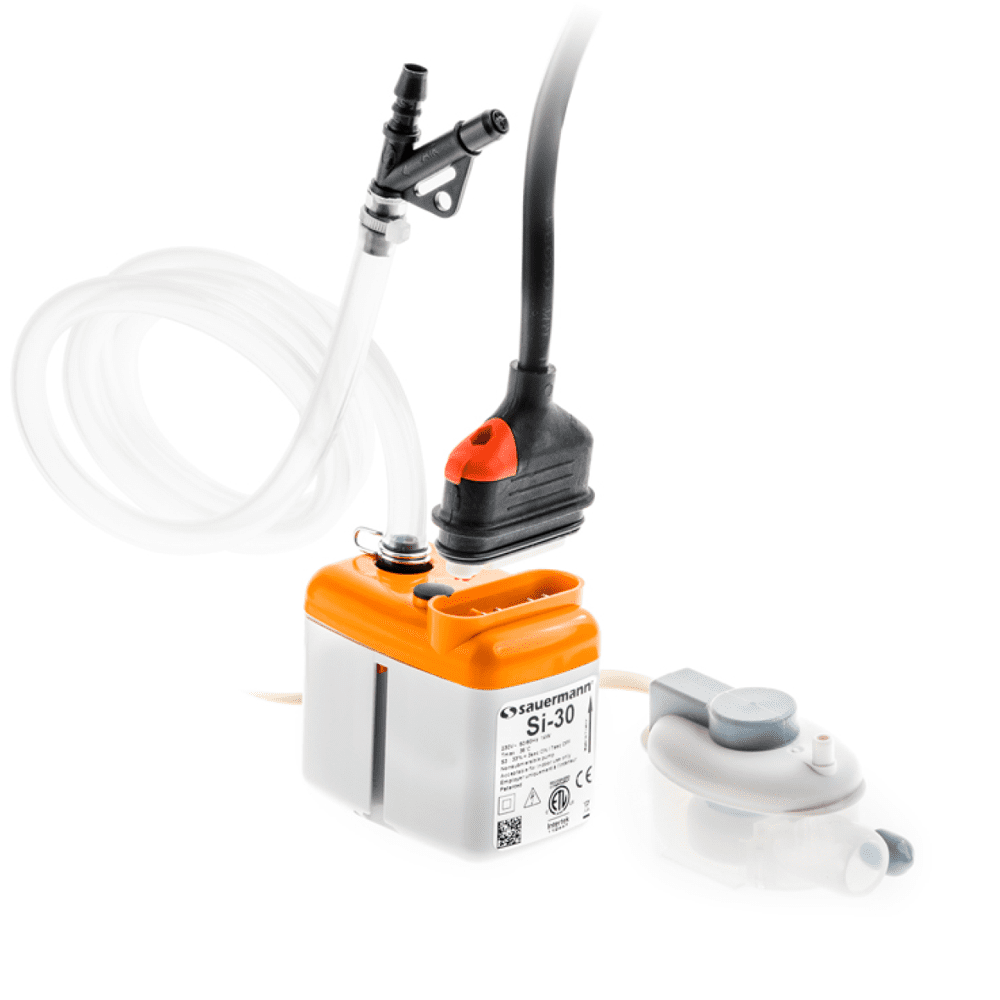

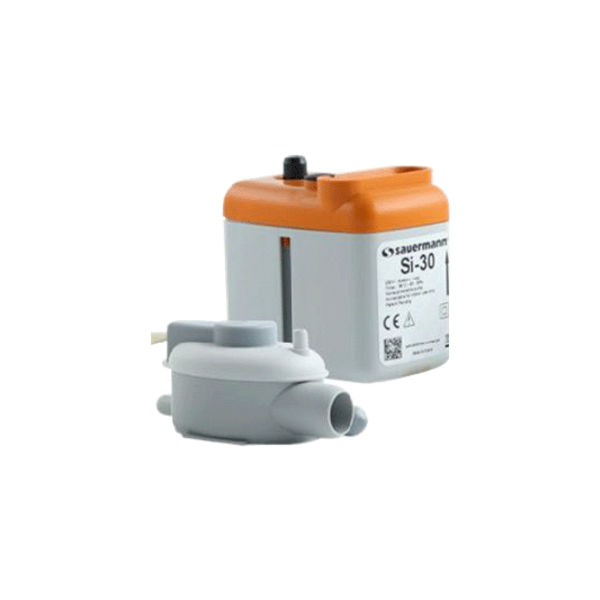

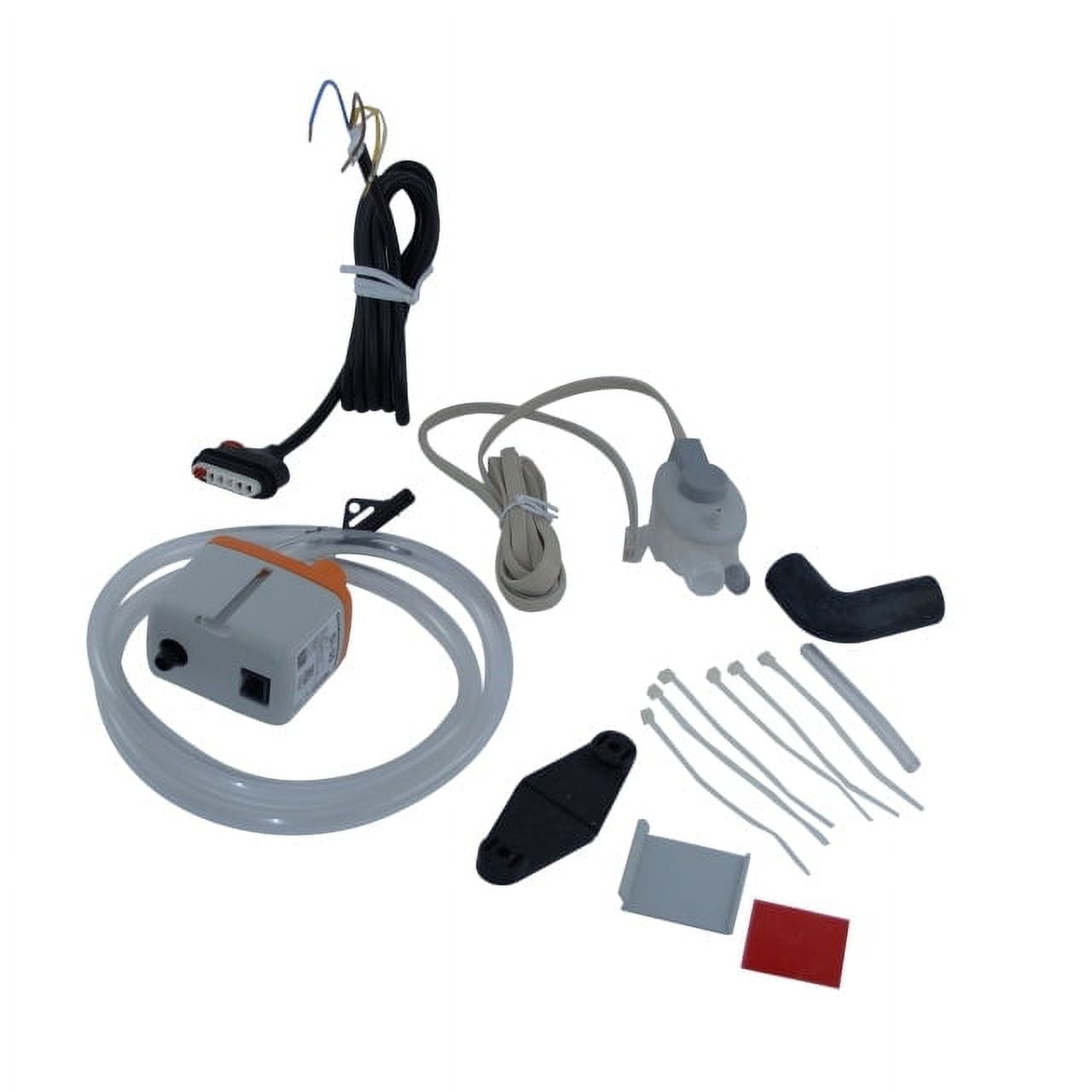

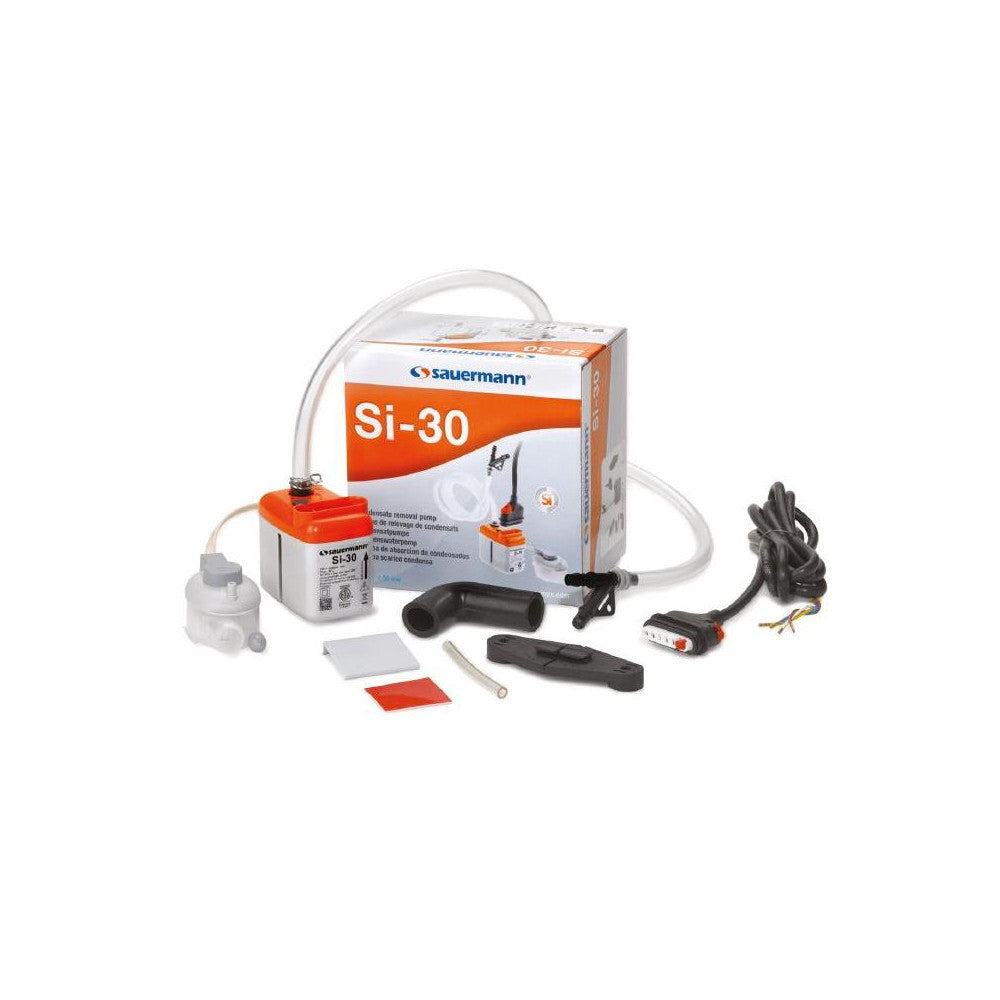

Sauermann SI30UL01UN12 Si-30 Mini Condensate Removal Pump 5GPH 120V

Product Description

The Sauermann SI30UL01UN12 is a mini condensate pump designed for remote installation above air conditioning units. This pump is suitable for use in both residential and commercial HVAC systems. It effectively removes condensate from ducted, wall-mounted, floor-mounted, and suspended ceiling units up to five and a half tons.

• Compatible with A/C units up to 5.5 tons.
• Features a locking power cord for a secure connection.
• Includes an integrated drain safe device.

Product Highlights

This pump operates quietly at a sound level of twenty dBA and offers versatile installation options. The maximum flow rate is five gallons per hour with a maximum discharge head of thirty-three feet.

Product Information

Standard Information

• Brand: Sauermann
• Power Supply: 120 V ~ 60 Hz - 14 W

Technical Specifications

• Max Flow Rate: 5.0 gph
• Max Suction Head: 10 ft
• Max Discharge Head: 33 ft; flow rate = 1 gph
• Max Pressure: 46 ft; flow rate = 0 gph
• Sound Level at 3.3 ft: 20 dBA according to EN ISO 3744
• Insulation Class: Double insulation
• Detection Levels: On: 5/8 / Off: 7/16 / Safety: 3/4
• Safety Switch: NC 8A resistive - 250 V
