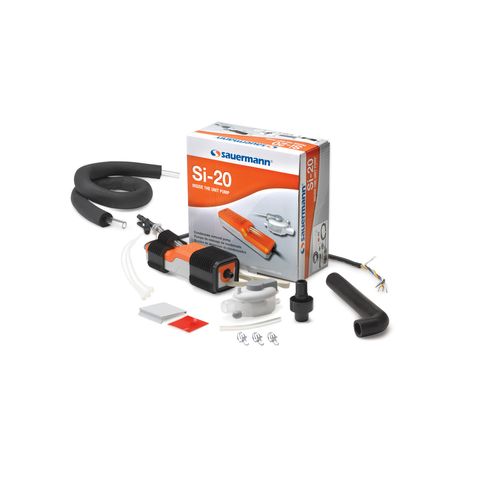

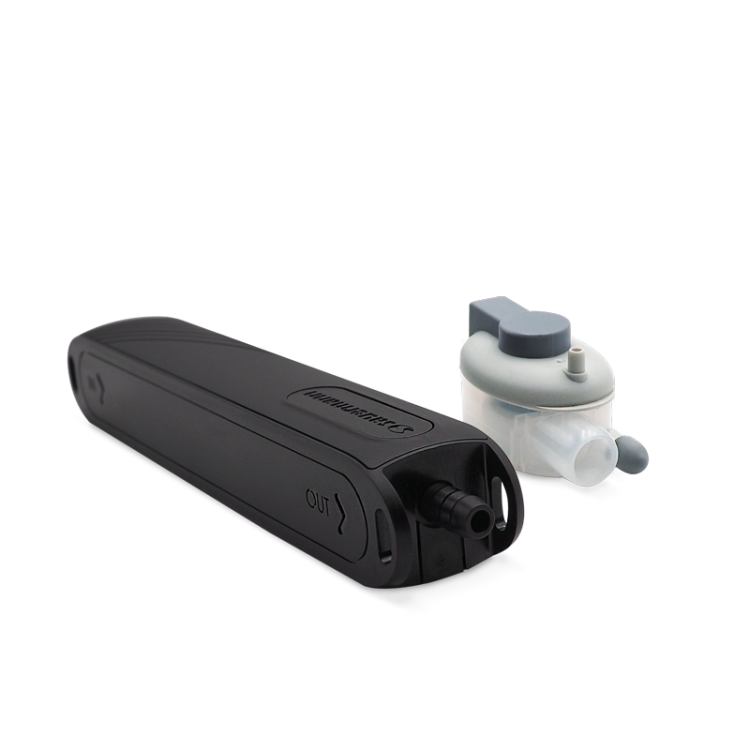

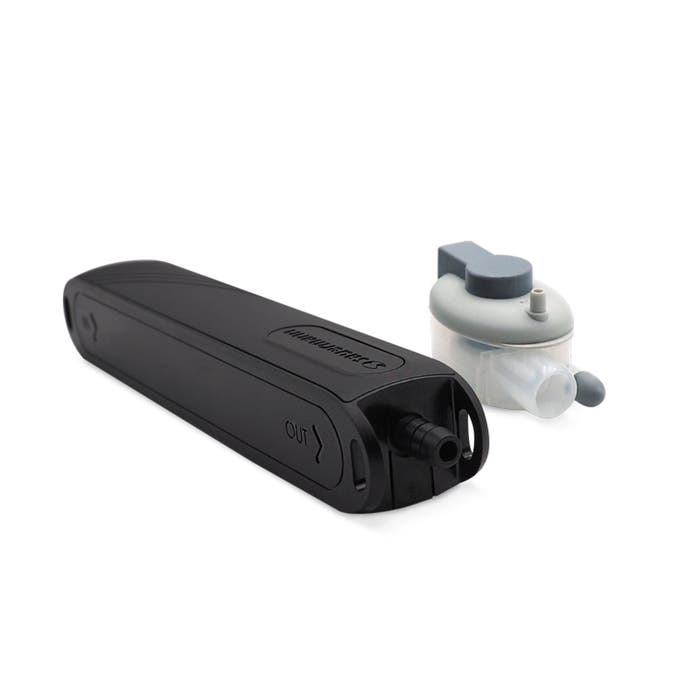

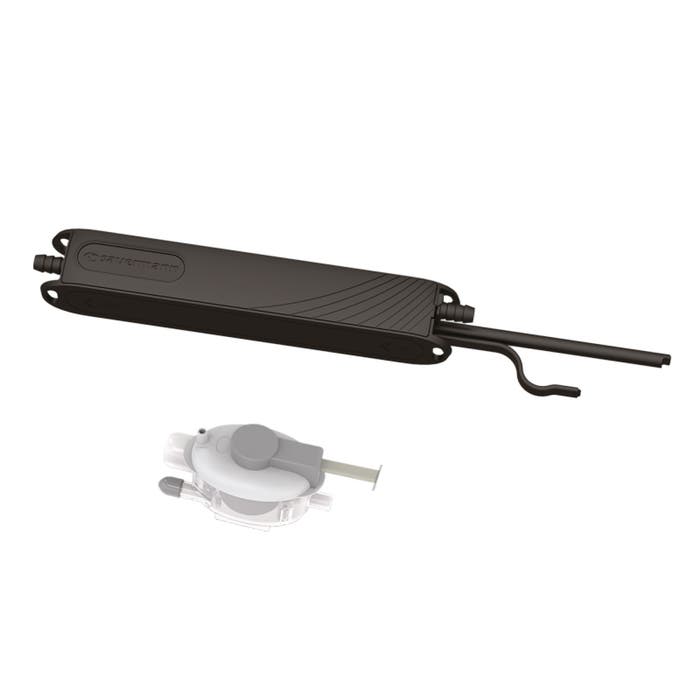

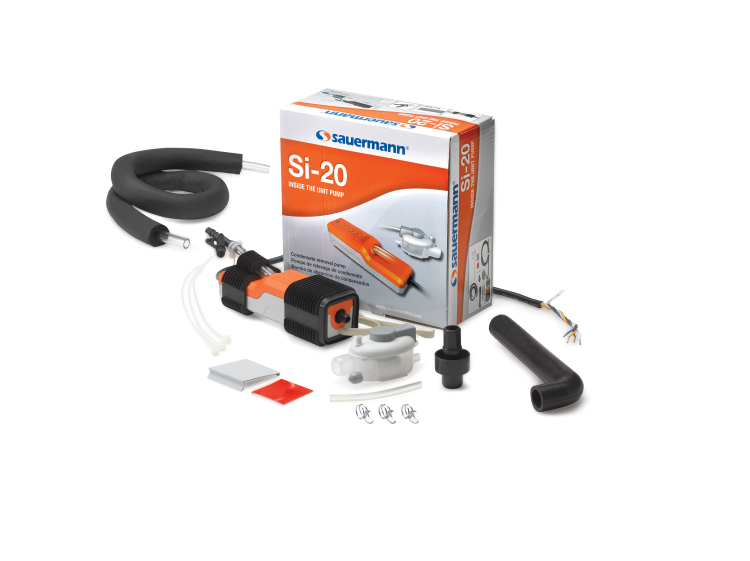

Sauermann SI20UL02UN23 Si-20 5 GPH Mini Condensate Removal Pump

Product Description

The Sauermann SI20UL02UN23 Si-20 mini condensate removal pump is designed for efficient condensate drainage from air conditioning units. This pump supports installations within tight spaces due to its slim profile. It features rubber dampers that minimize noise during operation. An integrated drain safe device enhances reliability and performance.

• Ideal for air conditioning units up to 60,000 BTU
• Maximum flow rate of five gallons per hour
• Quiet operation at a sound level of 19 dBA

Product Highlights

This pump is compact yet powerful, making it suitable for both residential and commercial HVAC applications.

Product Information

Standard Information

• Brand: Sauermann
• MPN: SI20UL02UN23

Technical Specifications

• Max flow rate: 5 GPH
• Max discharge head: 33 ft
• Insulation class: Double insulation
• Voltage: 230V
• Product Type: Condensate Pump
• Hertz: 50/60
• Max pressure: 46 feet / 14 m
• Max suction head: 10 feet / 3 m
• Operation conditions: 100 % - Continuous duty
• Protection: IPX2
• Safety switch: NC 8A resistive - 250 V
• Detection: Detection unit
• Pump Length: 7 3/32 inches
• Pump Width: 1 1/16 inches
• Pump Height: 1 1/16 inches
• Sound Level: 19 dBA
• Mains Supply: 208V to 230V, 50/60 Hz, 15W
• Detection Levels: 5/8 in. (ON), 7/16 in. (OFF), 3/4 in. (SAFETY)
• Safety Switch: NC 6A Resistive, 250V
• Thermal Protection (Overheating): 239°F (Auto-Reset)
• Maximum Condensate Temperature: 95°F
• Operating Cycle: 100%, Continuous Duty
• Safety Standards: UL Certified by Intertek, CSA Certified
• RoHS Directive: Compliant
• WEEE Directive: Compliant
