Sauermann OP20UL02UN23 Omega Pack Kit with Si-20 230V

Product Description

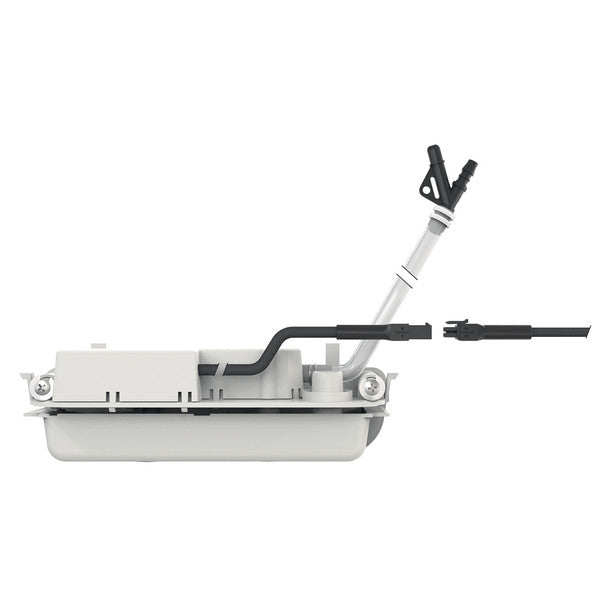

The Sauermann OP20UL02UN23 Omega Pack Kit with Si-20 is engineered for efficient condensate drainage under wall-mounted air conditioners. This compact unit features an advanced pump with a patented piston pump core and an insulated tank to minimize condensation.

• Designed for placement under a wall-mounted air conditioner
• Includes a new-generation pump with patented technology
• Features a large, insulated tank to prevent condensation

Product Highlights

The Sauermann OP20UL02UN23 is suited for continuous operation, making it ideal for professional HVAC applications.

Product Information

Standard Information

• Brand: Sauermann
• MPN: OP20UL02UN23

Technical Specifications

• Product Type: Condensate Pump
• Max Flow: 5 GPH
• Voltage: 230V
• Max Discharge Head: 32 ft
• Insulation Class: Double insulation
• Mains Supply: 230V ~ 50/60 Hz - 15 W
• Operation Conditions: 100% - Continuous duty
• Protection: IP20
• Max Condensate Temperature: 95 °F
• Safety Switch: NC 3 A resistive load – 250 V
• Sound Level (at 1m): 22 dBA
• Detection Levels: 15/16 in. (ON), 25/32 in. (OFF), 1-1/16 in. (SAFETY)
• Thermal Protection (Overheating): 239°F (Auto-Reset)
• Operating Cycle: 100%, Continuous Duty
• Safety Standards: UL Certified by Intertek, CSA Certified
• RoHS Directive: Compliant
• WEEE Directive: Compliant
• Dimensions (L x W x H): 8-17/64 in. x 2-13/32 in. x 2-37/64 in.
• Operating & Storage Temperature: +36 to +122 °F
• Packaging Dimensions: L 9 59/64 x W 5 33/64 x H 3 21/32
• Weight (including box): 1.477 lb
