Sauermann OP20UL02UN12 Omega Pack 2 Kit with Piston Pump 120V

Product Description

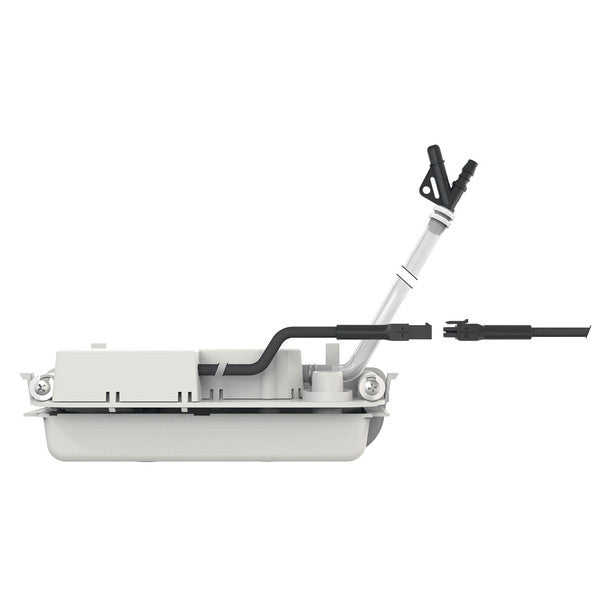

The SAUERMANN OP20UL02UN12 Omega Pack 2 is designed to be placed under a wall-mounted air conditioner, offering an all-in-one solution for condensate drainage. This compact design incorporates a new-generation pump equipped with Sauermann's patented piston pump core and a large insulated tank to prevent condensation. It features quick installation and maintenance and is UL approved.

• Quick installation and maintenance
• Optimum discretion
• UL approved

Product Highlights

The Omega Pack 2 provides optimum condensate drainage in a compact, elegant design with top performance.

Product Information

Standard Information

• Brand: SAUERMANN
• Manufacturer Part Number: OP20UL02UN12
• Country of Origin: United States

Technical Specifications

• Voltage: 120v
• Hertz: 60
• Shutoff Head (ft.): 32'
• Max Flow (GPH): 5
• Product Type: Condensate Pump
• Maximum Flow Rate: 5 GPH
• Maximum Discharge Head: 1.06 GPH (32 ft. - Flow Rate)
• Maximum Pressure: 0 GPH (45 ft. - Flow Rate)
• Sound Level (at 1m): 22 dBA
• Mains Supply: 120V, 60 Hz, 13W
• Detection Levels: 15/16 in. (ON), 25/32 in. (OFF), 1-1/16 in. (SAFETY)
• Safety Switch: NF 5A Resistive, 250V
• Thermal Protection (Overheating): 239°F (Auto-Reset)
• Maximum Condensate Temperature: 95°F
• Operating Cycle: 100%, Continuous Duty
• Protection: IP20
• Operating & Storage Temperature: +36 to +122 °F
• Safety Standards: UL Certified by Intertek, CSA Certified
• RoHS Directive: Compliant
• WEEE Directive: Compliant
• Dimensions (L x W x H): 8-17/64 in. x 2-13/32 in. x 2-37/64 in.
• Cover Dimensions: L 8 17/64" x W 2 13/32" x H 2 37/64"
• Packaging Dimensions: L 9 59/64 x W 5 33/64 x H 3 21/32
• Insulation Class: Double insulation
• MPN: OP20UL02UN12
• Country of Origin: United States
• Category: Business & Industrial
