Sauermann 28149 Si-RM450 Manifold Kit 6

Product Description

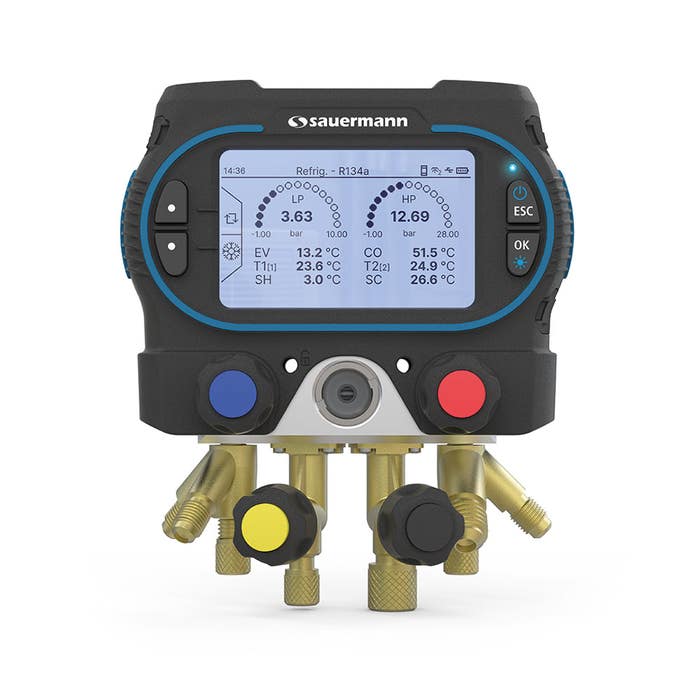

The SAUERMANN 28149 Si-RM450 Manifold Kit 6 includes the Si-RM450 4-Valve Digital Manifold, two Si-RT7 Wireless Temperature Clamp Probes, a Si-RV4 Wireless Vacuum Probe, and a four-piece hose set. Compatible with A1/A2/A2L/A3 refrigerants, it pairs with the Sauermann Pilot mobile app for servicing refrigerant-based installations. The smart digital assistant guides the operator for efficient system diagnostics.

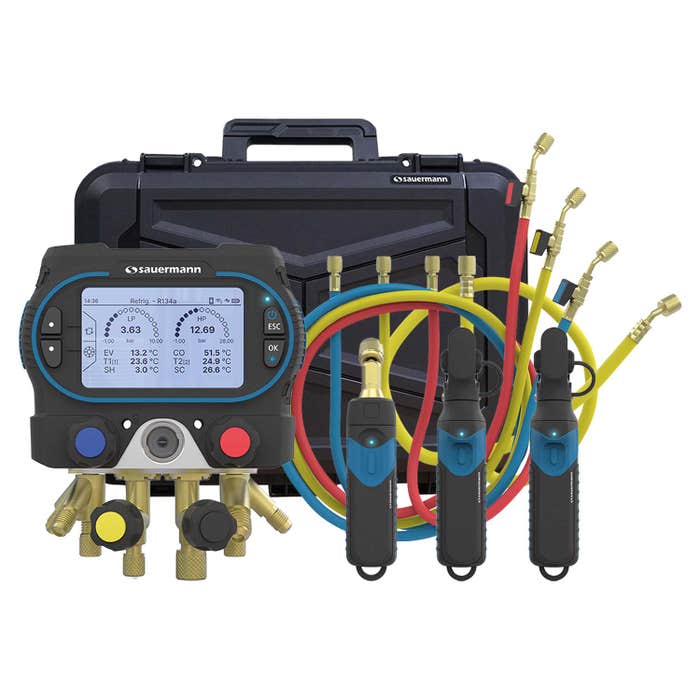

• Kit combines Si-RM450 4-Valve Digital Manifold with 2x Si-RT7 Wireless Temperature Clamp Probes, 1x Si-RV4 Wireless Vacuum Probe, and 1x 4-Piece Hose Set
• Aids in commissioning and servicing heat pumps, A/C, refrigeration, and reversible systems from domestic systems to complex industrial machines
• Wired and wireless probes offer additional measurement capabilities

Product Highlights

The kit is user-friendly with troubleshooting diagnostics, supports 130+ refrigerants with updates, and has a daylight-friendly display.

Product Information

Standard Information

• Brand: SAUERMANN
• Manufacturer Part Number: 28149

Technical Specifications

• Display Style: Digital
• Number of Valves: 4
• Temperature Units: "".F/"".C
• Pressure Units: psi/bar/kPa/MPa
• Power Supply: 4x LR6 or AA 1.5V batteries, USB-C
• Battery Life: 300 hours
• Memory: Up to 600000 points/9 days of recording
• Display: 240 x 128 px
• Pressure Valves: 4x (4-way)
• Pressure Measurement Range: -14 to 870 psi (-1 to 60 bar)
• Pressure Sensing Accuracy: "".(5% m.v. "".5 microns), from 100 to 2000 microns
• Resolution: 0.01 bar / 0.1 psi / 1 kPa / 0.001 MPa
• Overload: 65 bar (943 psi)
• Burst Pressure: 150 bar (2175 psi)
• Temperature Measurement Range: -4".F to 140".F (-20".C to 60".C)
• Temperature Accuracy: "".6".F ("".3".C), from -4".F to 32".F (-20".C to 0".C)/"".9".F ("".5".C), from 32".F to 150".F (0".C to 60".C)
• Temperature Resolution: 0.1".F/0.1".C
• Humidity Measurement Range: 0% to 100% RH
• Humidity Accuracy: "".2% RH, from 15".C to 25".C and 10% to 90% RH/"".5% RH, from 15".C to 25".C, 0% to 10% RH, and 90% to 100% RH
• Humidity Resolution: 0.1% RH
• Response Time: 60 sec.
• Max pressure hose: 55 bar (800 psi)
• Languages: English, French, Spanish, Italian, German, Chinese, Portuguese, Romanian, Hungarian, Polish, Dutch
• Pressure connectors: Si-RM350: 3x 1/4 MFL male Si-RM450: 3x 1/4 MFL male + 1x 3/8 MFL male
• Temperature connectors: 2x wired jack (NTC)
• Wireless frequency: Range frequency from 2402 MHz to 2480 MHz with a transmission power of 8 dBm.
• Wireless range: App connection: depends on smartphone radio strength, range up to 100 m (328 ft).
• Compatibility: Smartphone minimum required versions: Android 11.0, iOS 15, BLE 5.0***
• Port: USB-C
• Superheat and subcooling: Automatically calculated by the device
• Environmental conditions of use: In non-condensing condition Altitude: from 0 to 2000 m (0 to 6561 ft) Non-corrosive gases
• Operating temperature: From -20 to 50".C (-4 to 122".F)
• Storage temperature: -20 to 50".C (-4 to 122".F)
• Type of probe: Si-RT2 Si-RT7 Si-RT5
• Temperature sensors: NTC
• Temperature sensor range: -50 to 120".C (-58 to 248".F) -20 to 85".C (-4 to 185".F) -20 to 85".C (-4 to 185".F)
• Temperature accuracy*: -20 to 85".C (4 to 185".F): "".1".C ("".8".F) -20".C to 70".C (-4 to 158".F): "".2".C ("".4".F) 70".C to 85".C (158 to 185".F): "".5".C ("".9".F)
• Maximum operating temperatures: Jaws: 150".C (302".F) - Handle: 90".C (194".F) Jaws: 85".C (185".F) - Handle: 50".C (122".F) N/A
• Available units (Temperature): ".C, ".F
• Resolution (Temperature): 0.1".C, 0.1".F
• Pipes diameter: 6 to 42 mm (0.2" to 1.7") max 100 mm (max. 3.9")
• Measurement and discharge valves: 1x vacuum input
• Measuring range (Vacuum): 50 microns to 25 000 microns
• Pressure sensing accuracy* (Vacuum): 100 to 2000 microns: "".(5% m.v. "".5 microns) Temperature dependence: "".0005 x (T-20) microns (if T<0".C or T>30".C)
• Available units (Vacuum): micron / mbar / Torr / mTorr / inH2 O / inHg / mmHg / hPa / Pa
• Resolution (Vacuum): 1 micron (50 to 1 000 microns) / 10 microns above 0.00001 mbar (0.06666 to 1.33322 mbar) / 0.0001 mbar above 0.001 Torr (0.050 to 1.000 Torr) / 0.01 Torr above 1 mTorr (50 to 1 000 mTorr) / 10 mTorr above 0.0001 inH2 0 (0.0267 to 0.5352 inH2 O) / 0.01 inH2 O above 0.000001 inHg (0.001968 to 0.039370 inHg) / 0.00001 inHg above 0.001 mmHg (0.050 to 1.000 mmHg) / 0.01 mmHg above 0.0001 hPa (0.0666 to 1.3332 hPa) / 0.001 hPa above 0.01 Pa (6.66 to 133.32 Pa) / 0.1 Pa above
• Overload (Vacuum): 27.5 bar (400 psi)
• Burst pressure (Vacuum): 35 bar (507 psi)
• Wireless range (Vacuum): Range up to 100 m (328 ft)
• Parameter: Temperature Humidity
• Measuring range (Thermo-Hygrometry): -20 to 60".C (4 to 140".F) 0 to 100 %RH
• Accuracy* (Thermo-Hygrometry): -20 to 0".C (-4 to 32".F): "".3".C (0.6".F) 0".C to 60".C (32 to 150".F): "".5".C (0.9".F) 10 to 90 %RH: "".2 %RH 0 to 10 %RH / 90 to 100 %RH: "".5 %RH "".04 x (T-20)%RH (if T<15".C/33.8".F or T>25".C/77".F)
• Storage temperature (Thermo-Hygrometry): -20 to 50".C (-4 to 122".F)
• Available units (Thermo-Hygrometry): ".C, ".F %RH
• Resolution (Thermo-Hygrometry): 0.1".C, 0.1".F 0.1 %RH
• Wireless range (Thermo-Hygrometry): Range up to 100 m (328 ft)
• Vacuum Measurement/Discharge Valves: 1x vacuum input
• Vacuum Measurement Range: 50 microns to 25000 microns
• Pipe Diameter (Si-RT2/Si-RT7): 0.2 in. to 1.7 in. (6 mm to 42 mm)
• Pipe Diameter (Si-RT5): 3.9 in. (100 mm)
