Product Description

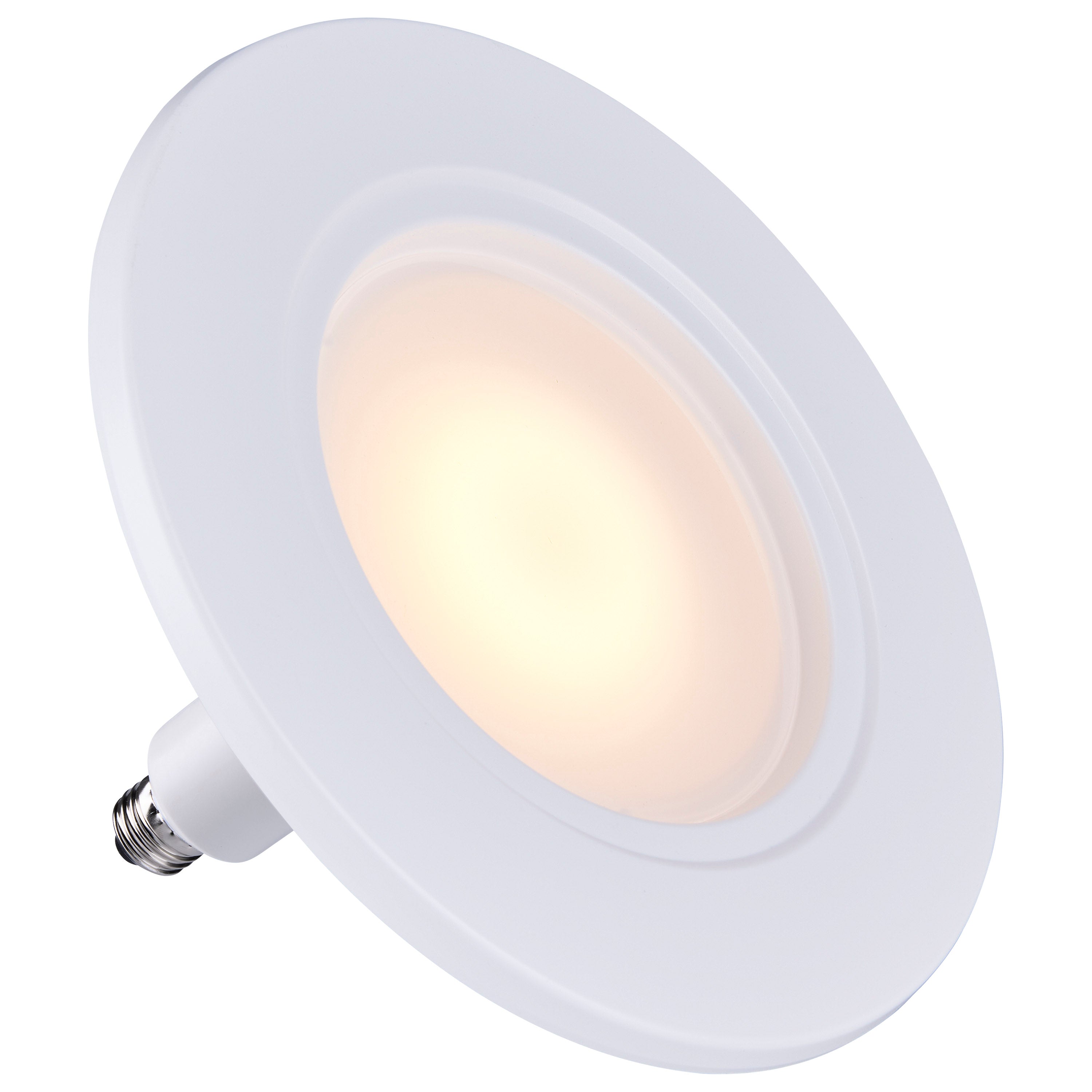

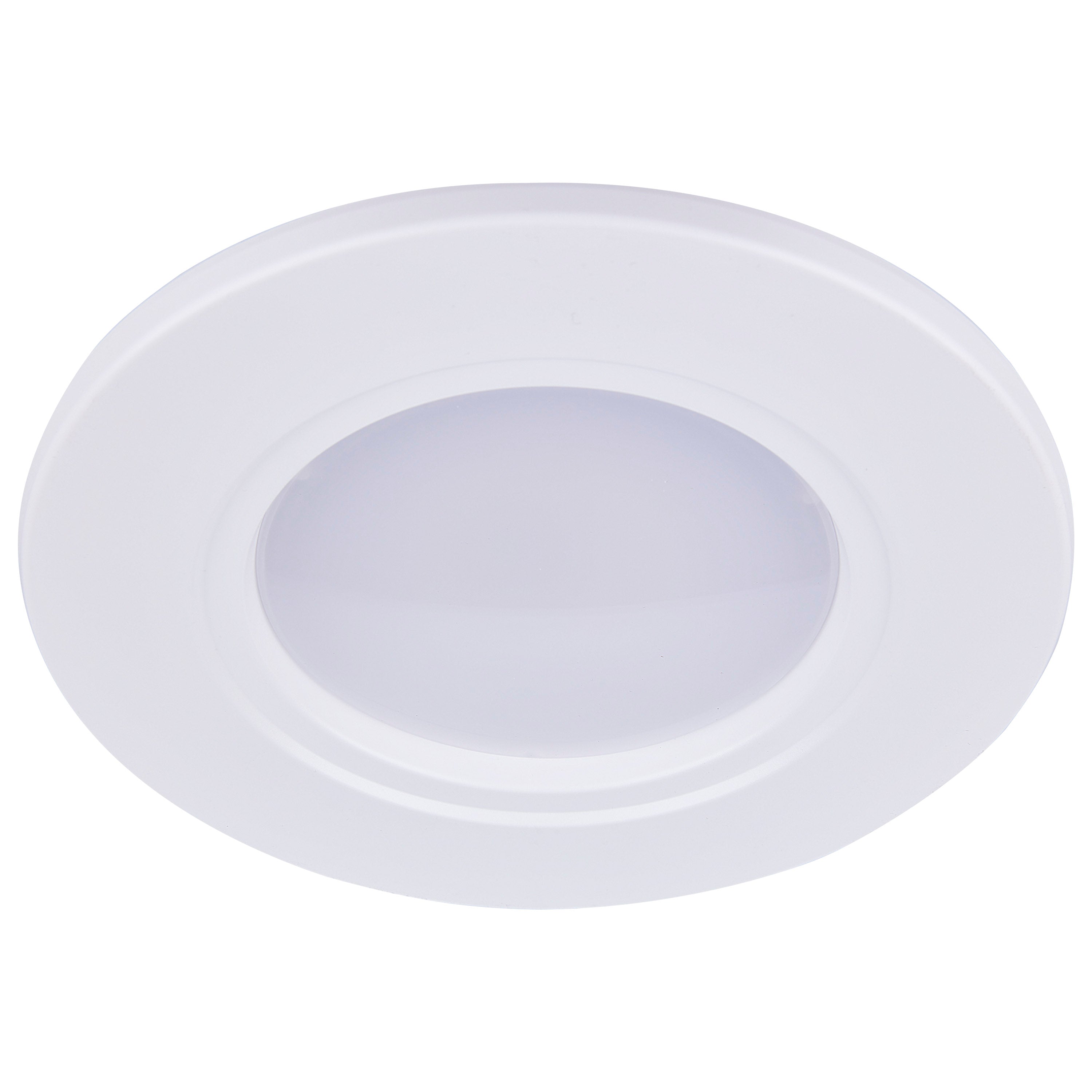

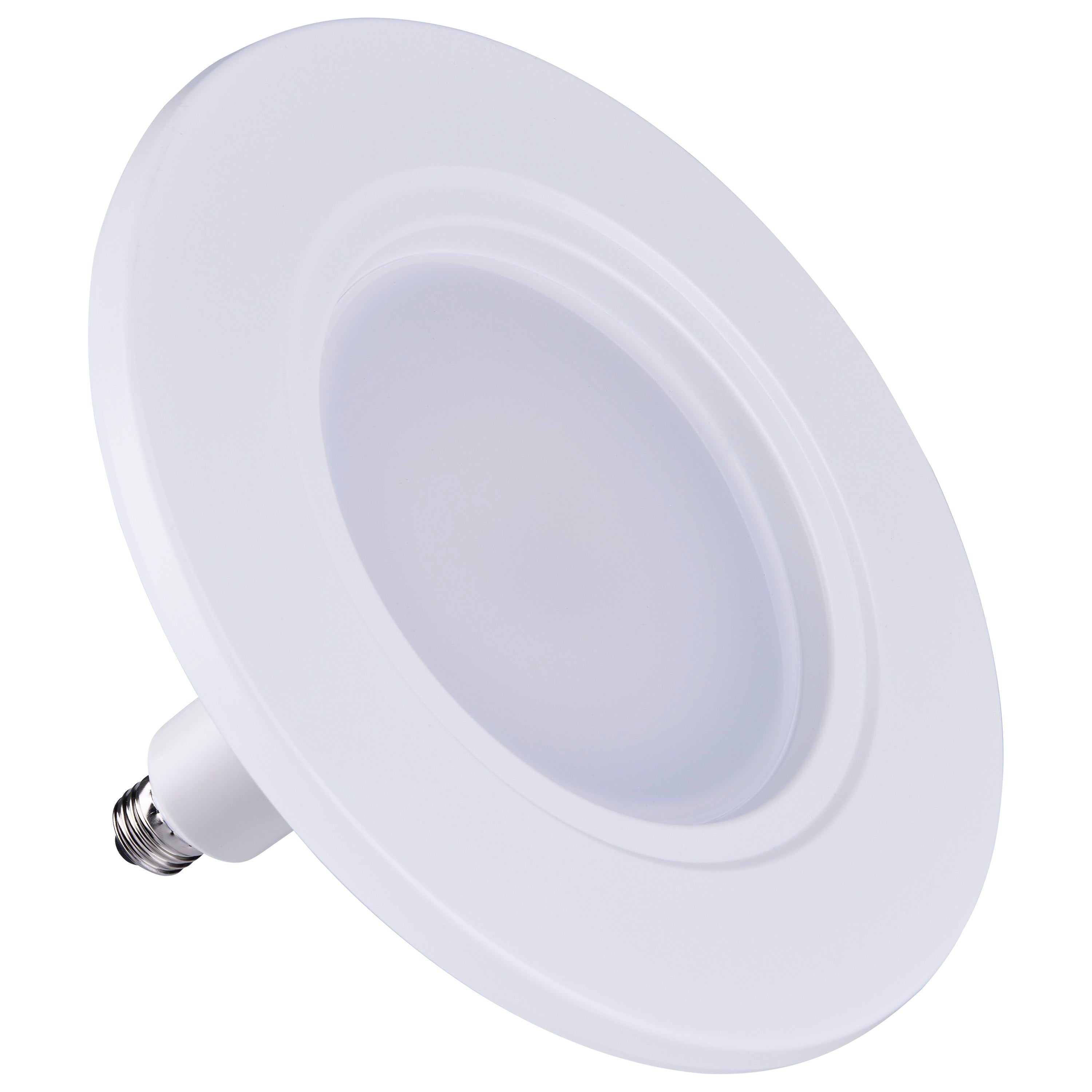

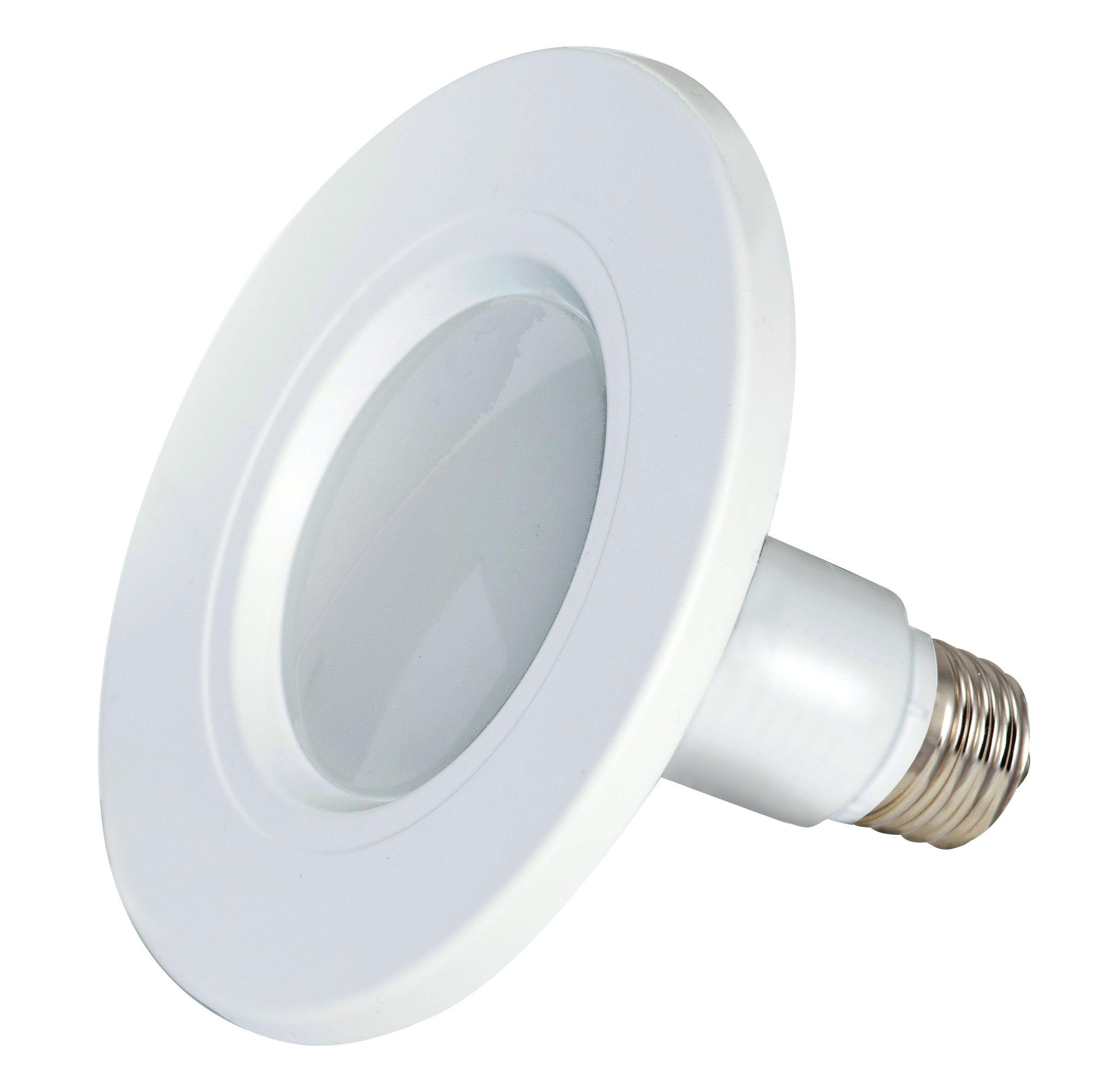

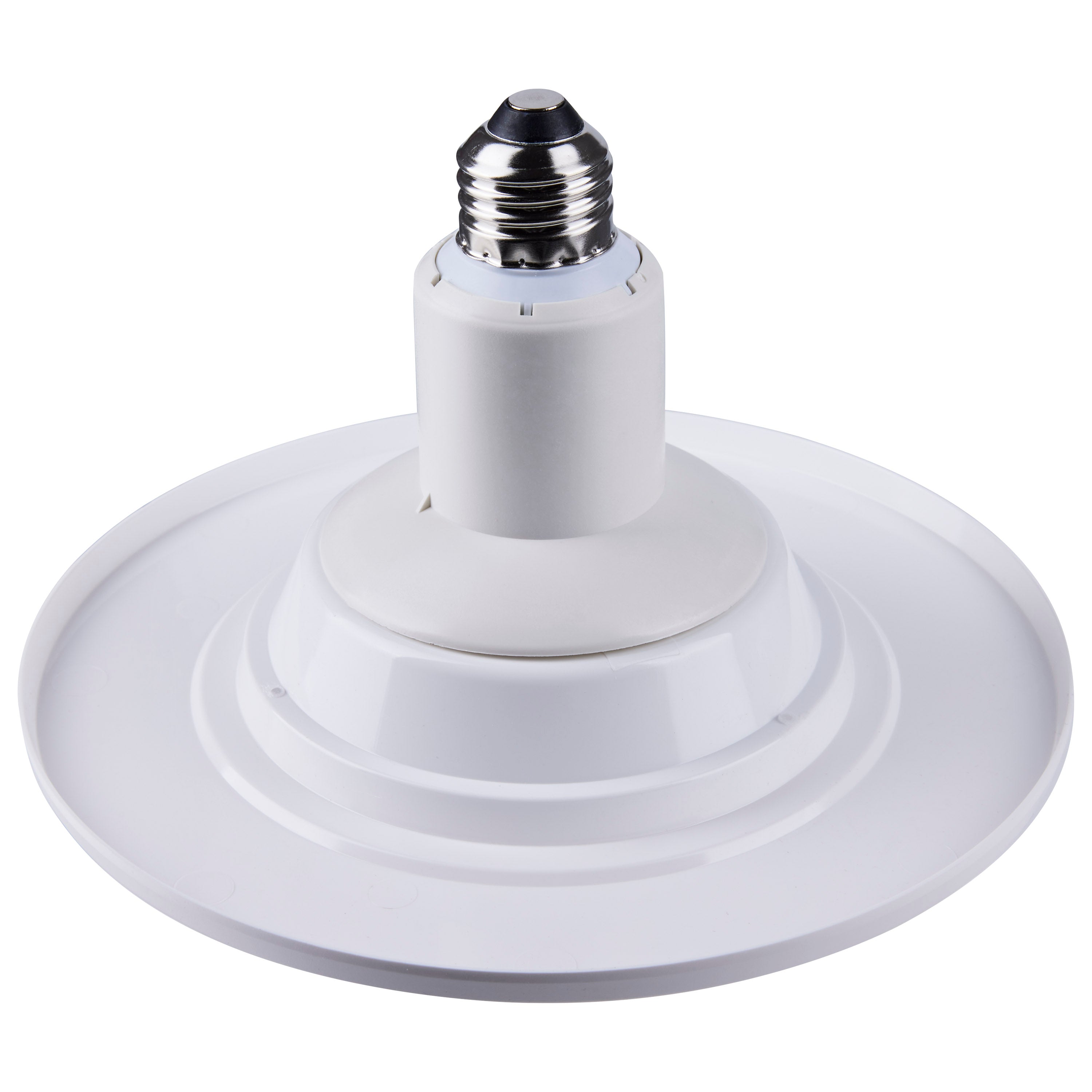

The SATCO S9598 is an 8.5W LED downlight retrofit with a 4" trim, a color temperature of 2700K, and is designed for 120V systems. This dimmable downlight features a medium base and a 115-degree beam spread. It is designed to fit 4" recessed cans and has an adjustable length. Comes in a 2-pack.
- Dimmable with approved dimmers
- Long life: 25,000 hours
- Adjustable neck length from 3.82 in. to 5.39 in.
Product Highlights
This LED downlight is perfect for homes, offices, retail, and hospitality, offering a calming, warm glow with full-range dimming and even light distribution.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S9598
-
Country of Origin: China
Technical Specifications
-
Company: SATCO
-
Bulb Included: Integrated
-
Diameter: 5.12
-
Dimmable Text: Forward Phase or Reverse Phase or Phase Selectable
-
Material: Aluminum
-
Fixture Type: Downlight Retrofit
-
Style: Utility
-
CCT Selectable: No
-
Wattage Selectable: No
-
Can Size: 4 in.
-
Finish Family: White
-
Additional Info: Adjustable neck length from 3.82 in. to 5.39 in.
-
Amps: 0.071A
-
Has Camera: No
-
IOT Enabled: No
-
Lens Material: Thermo Plastic (PBT)
-
Power Factor: 0.92
-
SDS Class: LED_Fixture
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 45W
-
Color Temperature: 2700K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 25000
-
Beam Angle (degree): 115
-
Color Temp: Soft White
-
CRI: 80+
-
Dimming Type: 120V only, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temp: -20C (-4F) to +40C (+104F)
-
Lumens: 510
-
Volts: 120v
-
Watts: 8.5W
-
Lamp Base: Medium
-
Finish: WHITE
-
ANSI Base: E26
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-
Installation Notes: Fits 4 in. Recessed Cans
-
Light Type: LED
-
Special Feature: Dimmable
-
Bulb Shape Size: A19
-
Bulb Base: E26 Medium
-
Light Color: Soft White
-
Power Source: Corded Electric
-
Power Consumption: 8.5 Watts
-
Light Source Type: LED
-
Light Source Wattage: 8.5 Watts
-
Accepted Voltage Frequency: 100 to 120 Volts and 60 Hertz
-
Light Source Operating Life: 25000 Hours
-
White Brightness: 510 Lumens
-
Efficiency: 58.82 lumens per watt
-
Light Output Maximum: 510 Lumens
-
Style Name: Contemporary
-
Brand Category: Recessed
-
Brand Product Description: 8.5W/LED/4"TRIM/2700K/120V/2PK
-
SKU: S9598
-
UPC: 045923095986
-
Lamping Category: LED
-
Lamping Included: Bulbs Included
-
Lamping Type: LED Module
-
Primary Number of Bulbs: 1
-
Socket: Medium
-
Total Number of Bulbs: 1
-
Wattage Max: 8.50
-
Height: 5.39
-
Length: 5.38
-
Width: 5.75
-
Energy Star: Yes
-
UL Ratings: cULus Damp
-
Integrated LED: Y
-
Residential Use: Y
-
Available In LED: Y
-
Down Light Fixture: Y
-
Uplight Fixture: N
-
Hardwired Fixture: Y
-
Bulb Average Hours: 25000
-
Supported Bulb Spread: 115
-
Fixture Lumens Per Watt: 60.00 LPW
-
Fixture Slope Ceiling Ready: N
-
Fixture Electrical Amperage: 0.071A
-
Fixture Electrical Maximum Amperage: 0.071A
-
Voltage Low: 120V
-
Bulb Angle: 115
-
Bulb Color: White
-
Bulb Shape: Integrated LED
-
Bulb Spread: 115
-
Mfg #: S9598
-
Order Code: 8.5W/LED/4''TRIM/2700K/120V/2PK
-
Input Volts: 120V
-
Equivalent: 45W
-
Lumens/Watt: 60
-
Base: Medium
-
Certifications: Damp Rated, EnergyStar, UL
-
Life (hrs): 25000
-
Diameter (in): 5-1/8''
-
Length (in.): 5-3/8''
-
Type: Recessed
-
Lighting Technology: LED
-
Features: Dimmable
-
Output Voltage: 120 V
-
Country of Origin: China
