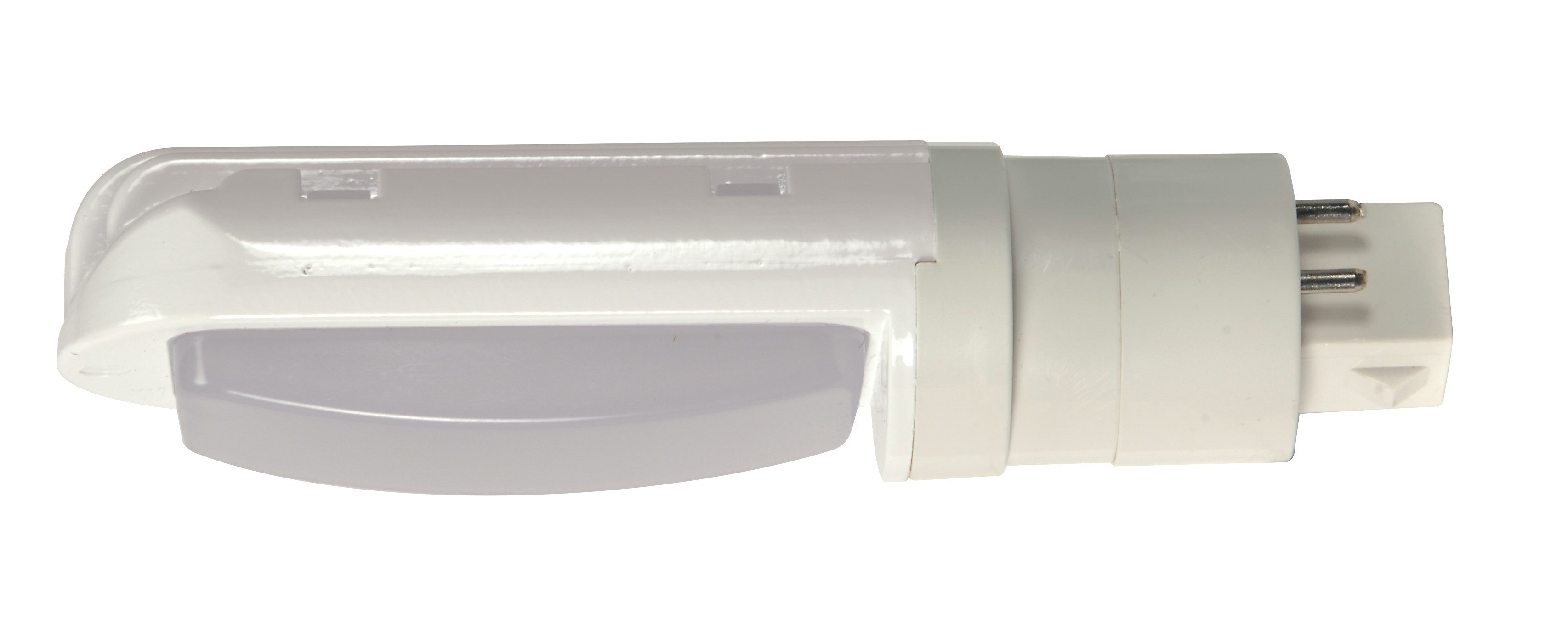

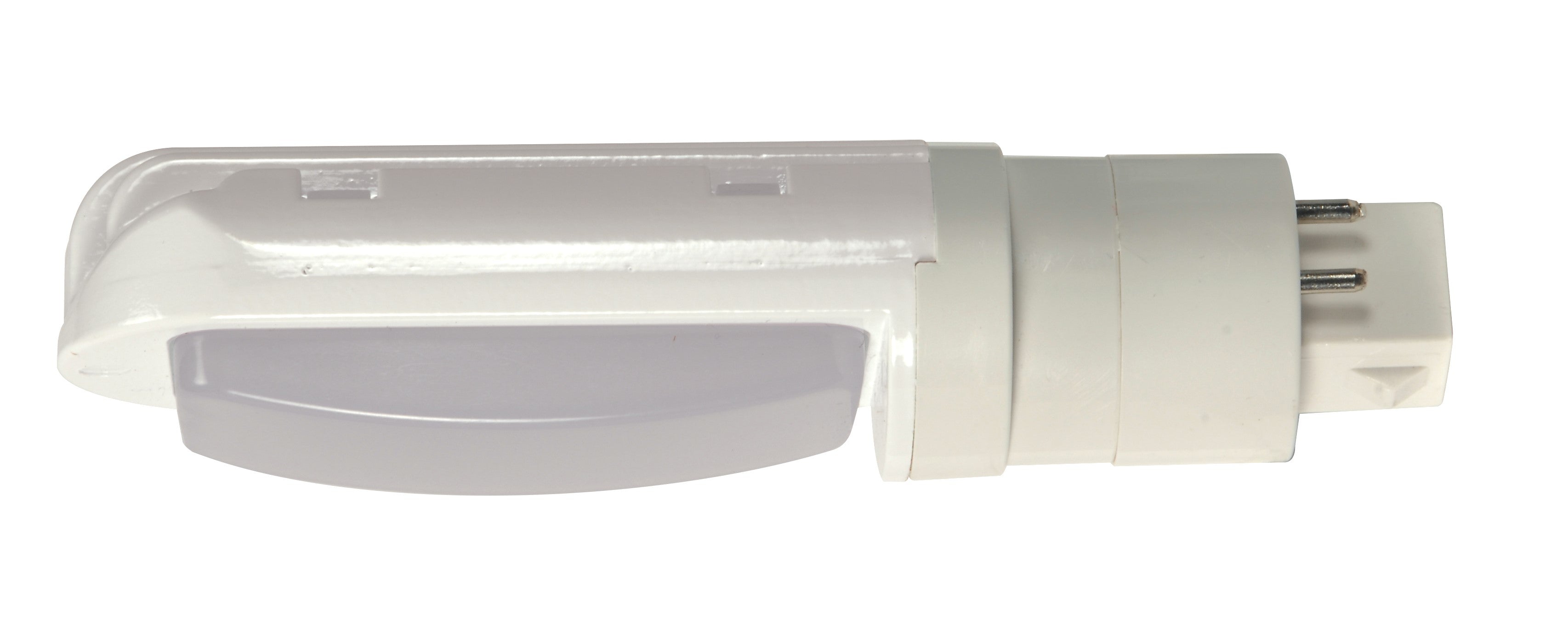

Satco s9309 13 watt led pl 4-pin 120 degree beam angle

Product Description

The SATCO S9309 is a 13 Watt LED PL 4-PIN lamp designed for direct replacement of 18, 26, 32, and 42 watt CFLs. Operating on 120-277 Volts, this lamp provides 900 Lumens with a 3500K color temperature and a 120-degree beam angle. It features a G24q base and offers up to 70% energy savings. No re-wiring is needed for installation, and it provides instant full brightness.

• 13 Watt LED PL 4-PIN with G24q base.
• 900 Lumens output and 3500K color temperature.
• Replaces 18, 26, 32, and 42 watt CFLs without re-wiring.

Product Highlights

Instant on to full brightness with no flickering, 50,000 average rated hours, and damp location rated.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S9309
• Country of Origin: China

Technical Specifications

• Amperage: 0.108-0.047A
• Average Rated Life: 50000 Hours
• Ballasting Requirements: Dimmable only with a Compatible Dimmable Ballast; Direct Replacement-for use on Electronic ballasts with no rewiring required
• Base: G24q (4-Pin)
• Beam Angle: 120 Degree
• Brand: SATCO
• CCT Selectable: No
• Certifications: cULus - Certified, cULus - Classified
• Color: Neutral White
• Color Rendering Index (CRI): 80+
• Color Temperature: 3500K
• Dimmable: Yes
• Dimming Type: Check Ballast MFG for Dimmer Compatibility, Only in Type A mode
• Efficacy: 69 Lumens/Watt
• FCC Compliant: Yes
• Fluorescent Equivalent: 28W
• Housing Color: White
• Incandescent Equivalent: 100W
• Input Voltage: 120V-277V
• Lamp Type: PL
• Lens Finish: Frost
• Lensed: Yes
• Location Rating: Damp
• Lumens: 900L
• Operating Position: Universal
• Operating Temperature: -4F to +113F (-20C to +45C)
• ROHS Compliant: Yes
• Technology Type: LED
• Wattage: 13W
• Wattage Selectable: No
