Satco S6942 Miniature Lamp 3.72 W T5

Product Description

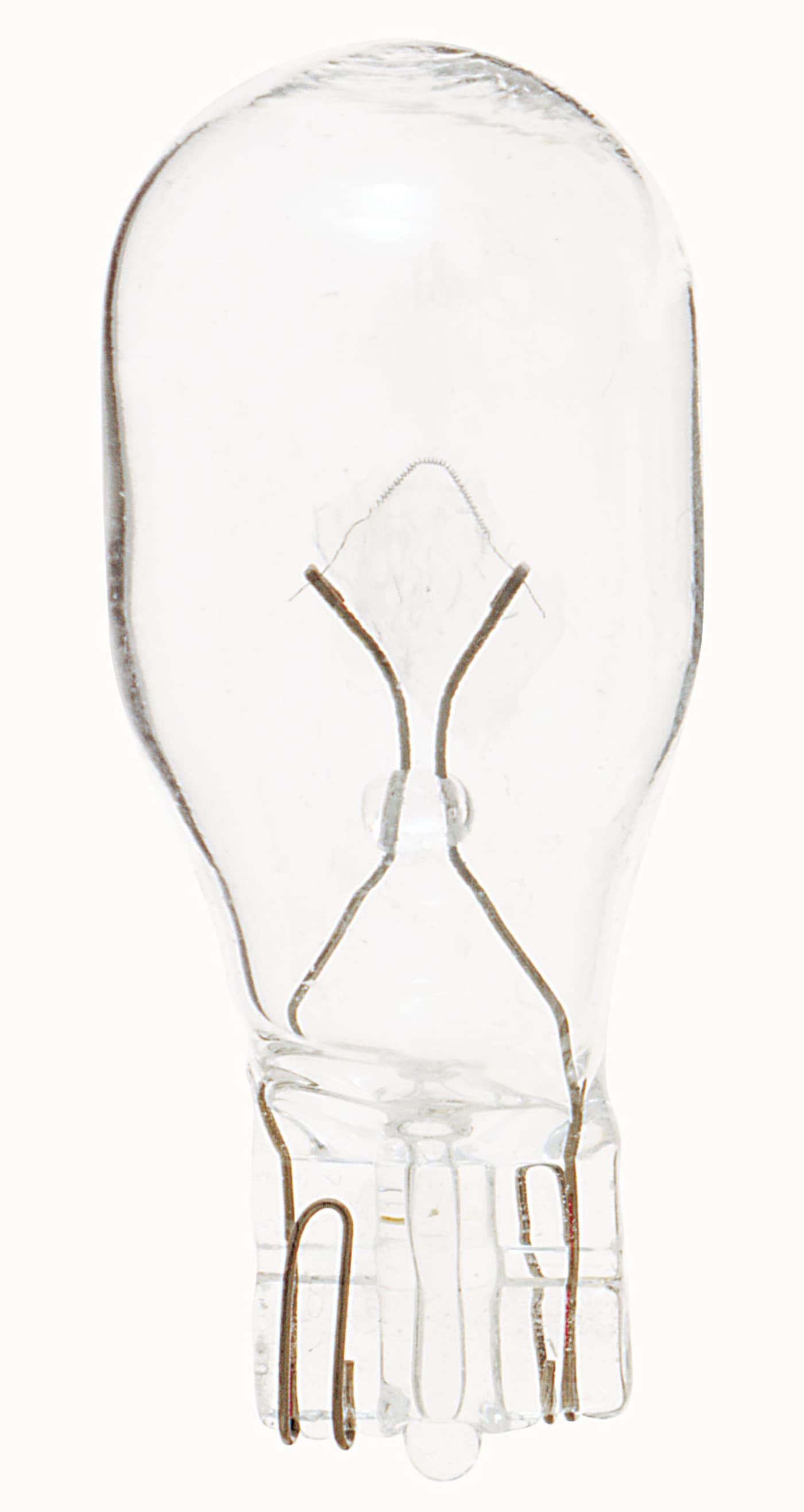

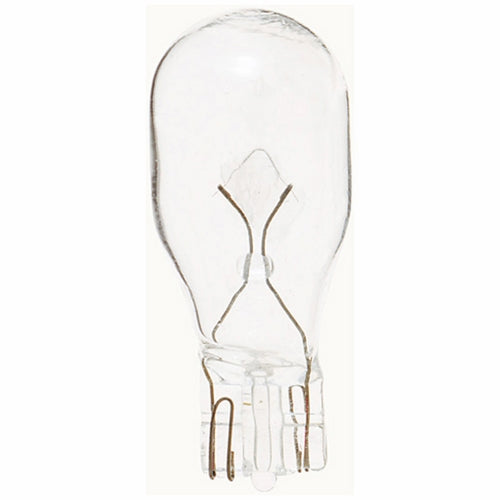

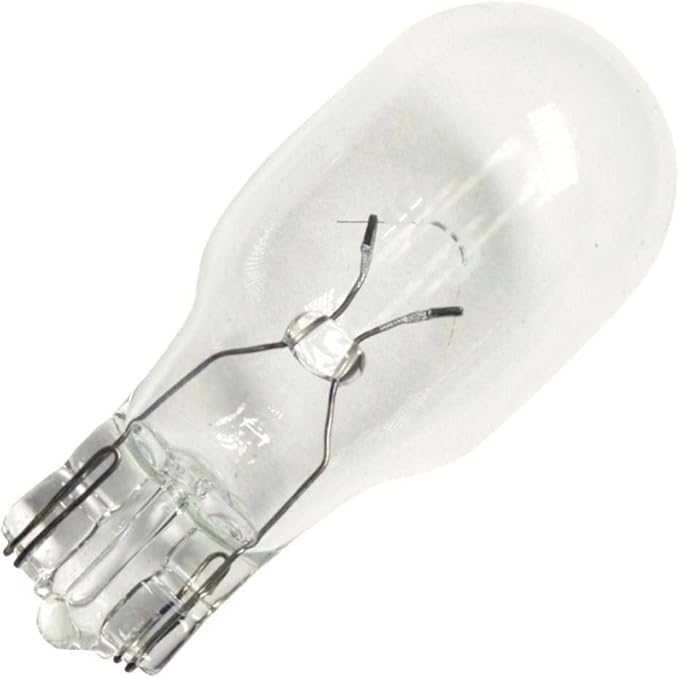

The SATCO S6942 is a miniature lamp with a designation of 909. Operating at 6V and 3.72W, this lamp features a T5 shape and a W2.1x9.5d mini wedge base. It utilizes a C-2R filament and has an average rated life of 50 hours, with an amperage of 0.62A. Its dimensions are 1-1/2 inches in length and 5/8 inches in diameter.

• 3.72 Watt miniature
• T5 Shape
• Mini Wedge base

Product Highlights

Miniature lamp with T5 shape, 3.72W power, and mini wedge base, suitable for various indicator and special service applications.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S6942
• Country of Origin: China

Technical Specifications

• Catalog Number: S6942
• Manufacturer: Satco
• Brand: Satco
• Country of Origin: China
• Made in USA: No
• Shape: T5
• Standard: RoHS Compliant
• RoHS URL: https://www.ideadigitalcontent.com/files/12249/Certificate_of_RoHS_Compliance.pdf
• UPC: 045923069420
• GTIN: 00045923069420
• Item Type: Miniatures
• Voltage Rating: 6
• Wattage: 3.72 W
• Base: Mini Wedge
• Voltage: 6 Volt
• Amperage: 0.62 Amp
• Dimmable?: No
• Bulb Shape: T5
• Lens Color: Clear
• Beam Spread: 360
• Technology Type: Incandescent
• Average Rated Life: 50 hr
• Length: 1-1/2 Inch
• Diameter: 0.63 Inch
• Finish: Clear
• Housing Color: None
• Lamp Filament: C-2R
• Fixture Type: Miniature
• Status: Active
• CCT Selectable: False
• Wattage Selectable: False
• Finish Family: No Finish
• Amps: 0.620A
• Has Camera: False
• IOT Enabled: False
• Lens Finish: Clear
• Lensed: True
• Operating Position: Universal
• SDS Class: Incandescent_Lamp
• Product Technology: Incandescent
• Dimmable: Non-Dimmable
• Hours Rated: 50
• Beam Angle (degree): 360
• Volts: 6V
• Watts: 3.72W
• Lamp Base: Mini Wedge
• ANSI Base: W2.1x9.5d
• MOD Lamps: 0.63
• MOL: 1.5
• Special Feature: 6V, Long Lasting, Low wattage, RoHS Compliant, Special Application miniature lamp
• Unit Count: 1 Count
• Number of Items: 1
• Material: Glass
• Model Name: S6942
• Item Package Quantity: 1
• Style: Contemporary
• Part Number: S6942
• Item model number: S6942
• Is Discontinued By Manufacturer: No
• Number Of Pieces: 1
• Special Features: 6V, Long Lasting, Low wattage, RoHS Compliant, Special Application miniature lamp
• Batteries Included?: No
• Batteries Required?: No
• Bulb Type: Incandescent
• Bulb Shape Type: Tube
• Bulb Base Type: Wedge Miniature
• Master / Inner Carton Quantity: 10
• Software Upgradeable: No
• Energy Star Rated: No
• California Status: Compliant
• Nevada Status: Lawful for sale in Nevada
