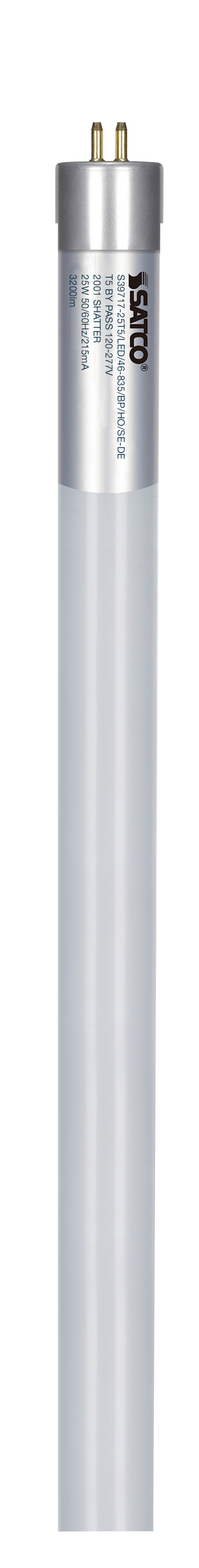

SATCO S39717 25 Watt T5 LED Miniature Bi-Pin Base Replacement MPN

Product Description

SATCO® 25 Watt T5 LED Miniature Bi-Pin Base lamp. This product features Type B ballast bypass, non-dimmable operation, and is suitable for both single-ended and double-ended wiring. It operates at a voltage range of 120 to 277 Volts, making it versatile for various applications.

• LED lamp with 3200 lumens output
• Average lifespan of 50000 hours
• Neutral white color temperature of 3500 K

Product Highlights

This T5 linear lamp is designed for use in Miniature applications. Ideal for lighting in display cases, cabinets, and other areas where compact lighting is needed.

Product Information

Standard Information

• Manufacturer: SATCO Lighting
• MPN: S39717

Technical Specifications

• Wattage: 25 W
• Voltage Rating: 120 to 277 V
• Lumens: 3200
• Average Life: 50000 hr
• Environment Ratings: California T20 Compliant, cULus Listed for Damp Locations, FCC Compliant, NSF Certified, RoHS Compliant
• Beam Angle: 240 deg
• CRI: 83
• Dimensions: 0.83 in Diameter x 46 in Length
• Base Type: G5 Miniature Bi-Pin
• Color Temperature: 3500 K
• Designation: 25T5/LED/46-835/BP/HO/SE-DE
• Finish: Frosted
• Shape: T5 Linear
