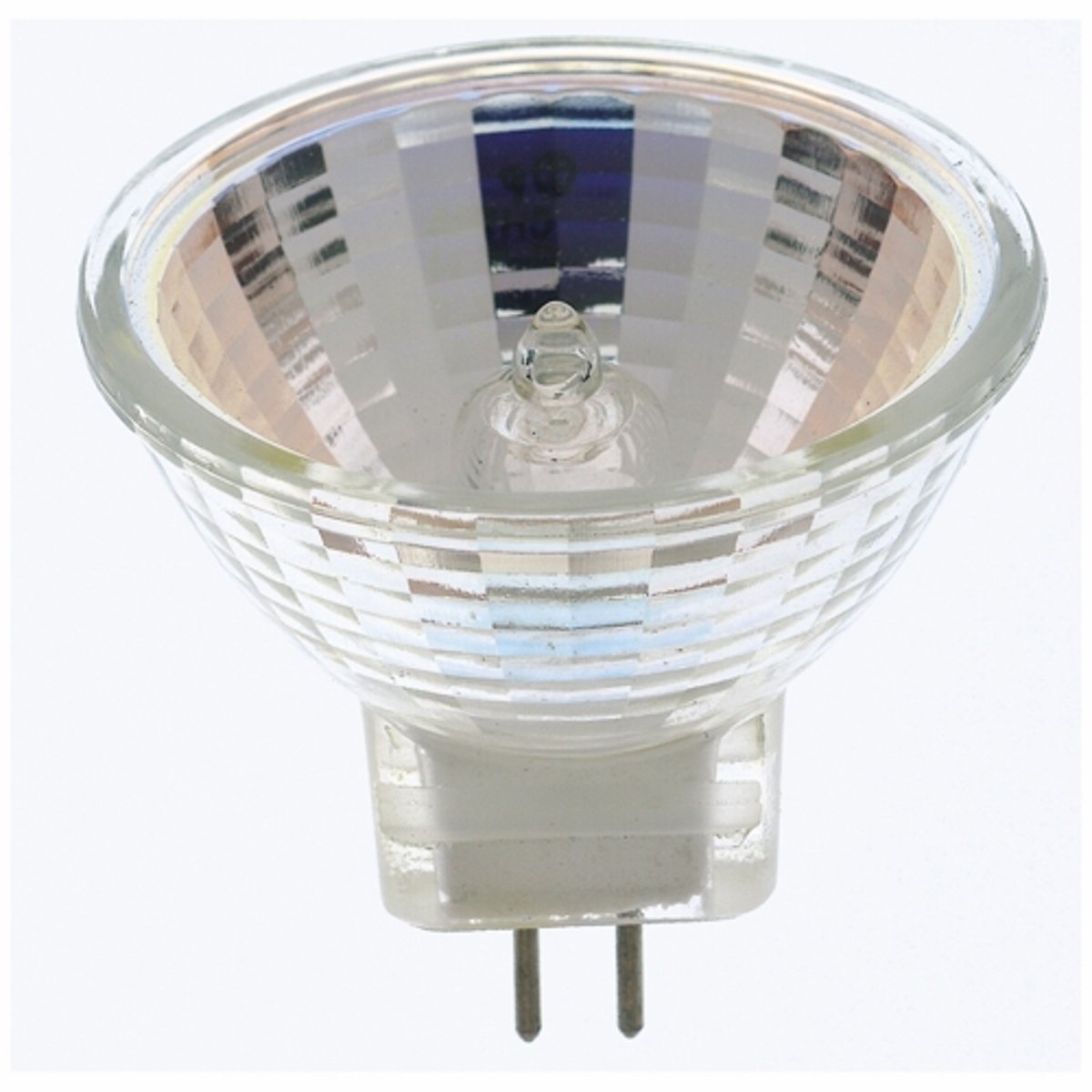

Satco S3154 Halogen MR Lamp 20 W 24 DEG Beam Angle

Product Description

The SATCO S3154 is a Halogen MR Lamp with a 20MR11/NFL designation, operating at 12V and 20W. It features a MR11 shape and a GZ4 sub-miniature 2-pin base with a C-6 filament. This lamp provides 500 Lumens CP Center Beam and has a 24-degree beam angle. It measures 1-1/4 inches in length and 1-3/8 inches in diameter.

• Dimmable and RoHS compliant
• 2000-hour average life
• 99 CRI for excellent color rendering

Product Highlights

This 20W MR11 halogen lamp offers a bright, crisp light with a narrow flood beam, ideal for accent and display lighting.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S3154
• Country of Origin: China

Technical Specifications

• Catalog Number: S3154
• Manufacturer: Satco
• Brand: Satco
• Country of Origin: China
• Made in USA: No
• Color Rendering Index (CRI): 99
• Dimmable: Yes
• Shape: MR11
• Standard: RoHS Compliant
• Item Type: Halogen
• Voltage Rating: 12
• Wattage: 20 W
• Beam Pattern: NFL 24
• Hours: 2,000
• Voltage: 12
• Lamp Type: Halogen
• Lamp Finish: Clear
• Lumens: 500 Lumens CP Center Beam
• Type: Dimmable
• Amperage Rating: 1.67 A
• Average Life: 2000
• Color Temperature: 2900
• Filament: C-6
• Lamp Base Type: 2-Pin GZ4 Sub-Miniature
• Designation: 20MR11/NFL
• Beam Type: Narrow Flood/Reflector
• Beam Angle: 24
