Product Description

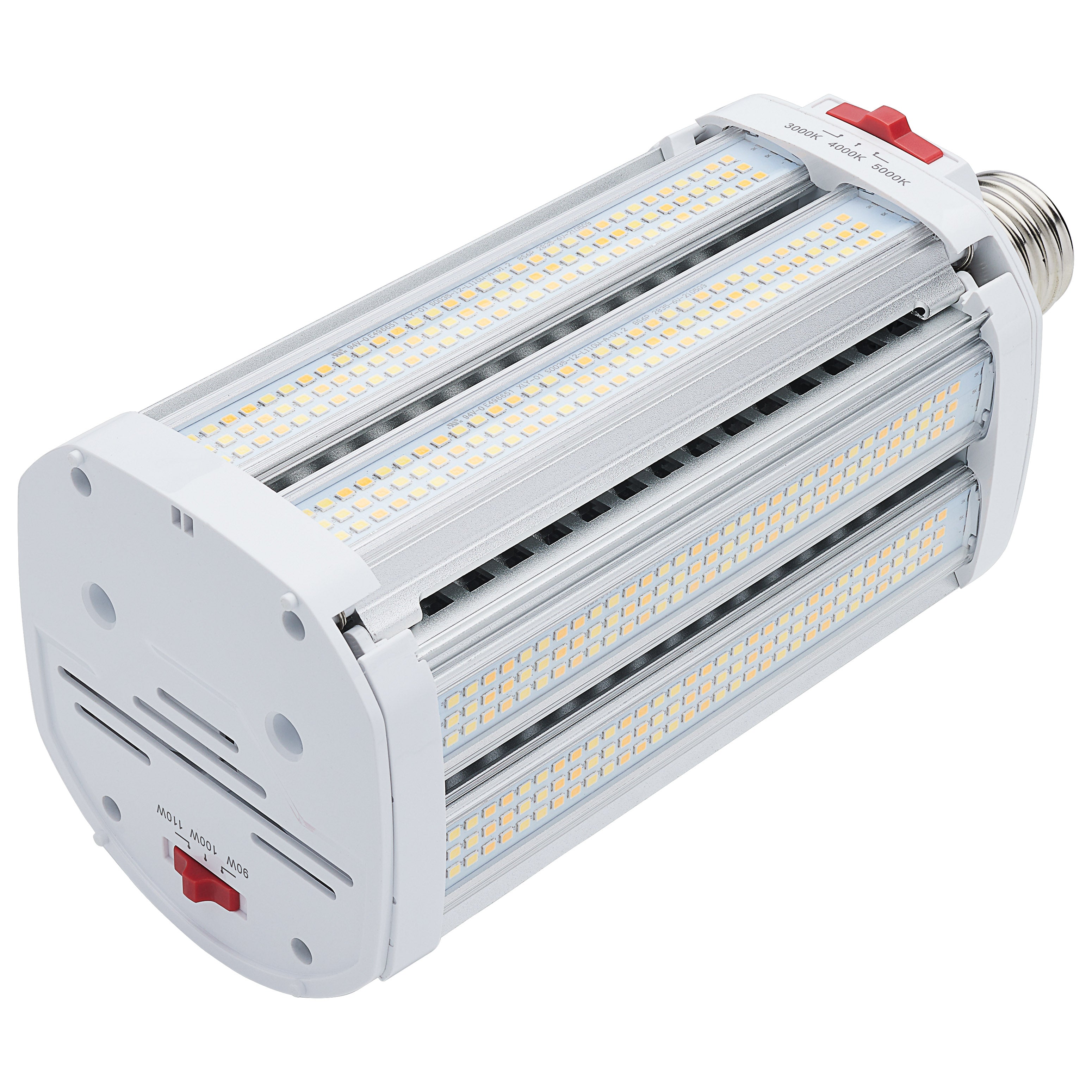

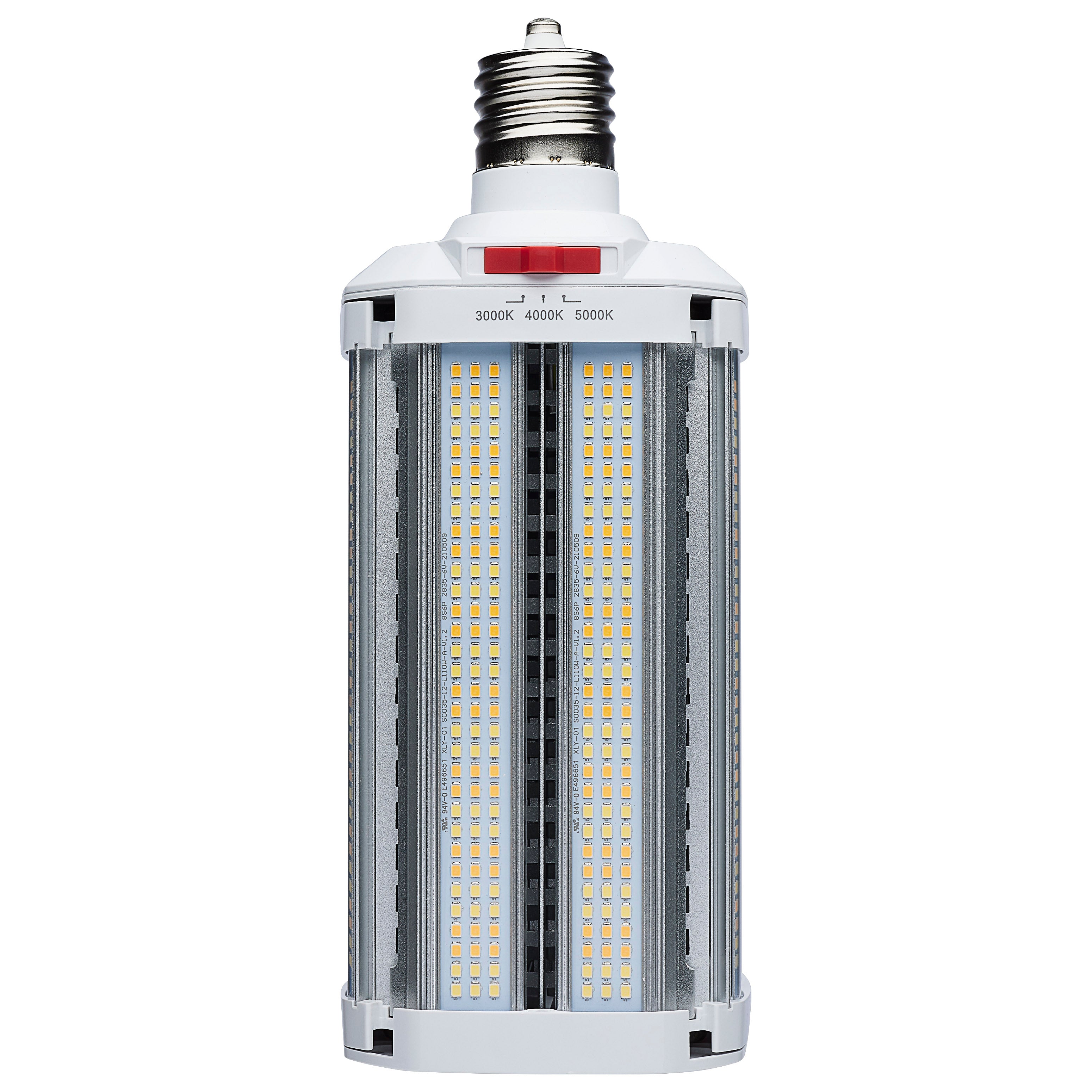

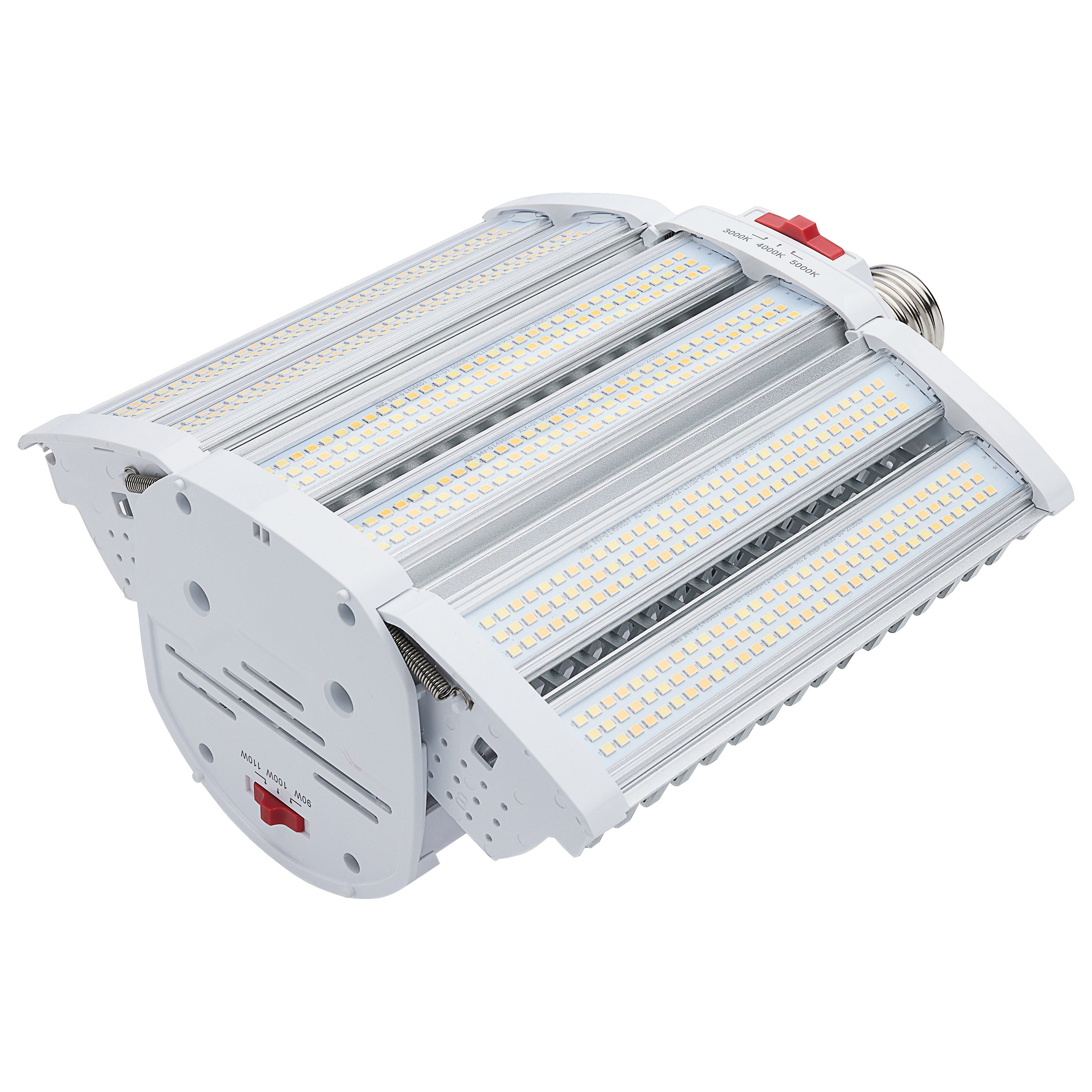

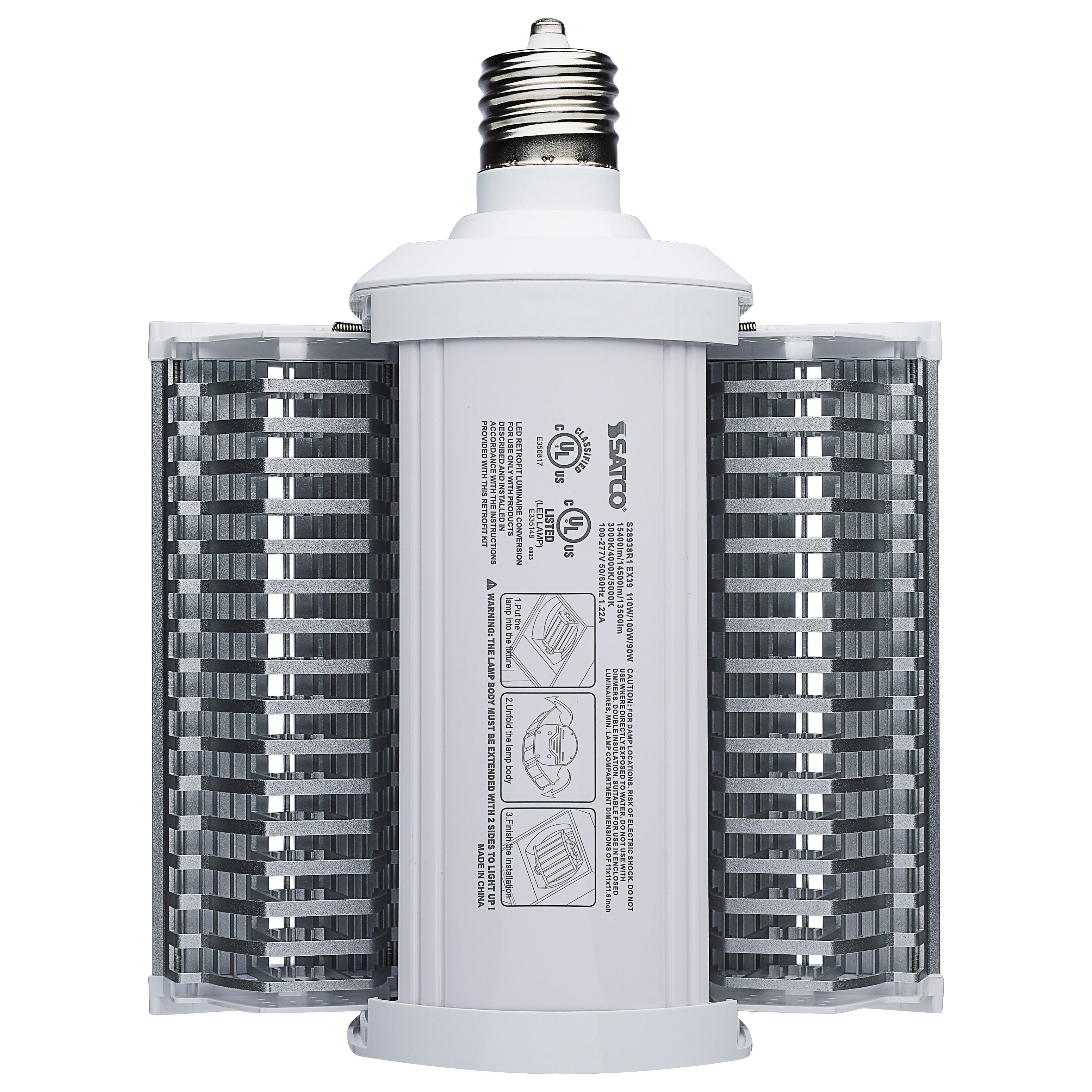

The Satco S28938R1 110W/LED/HID/SB/3CCT/EX39 LED Shoe Box Lamp is a high lumen Omni-directional LED for use in shoe box fixtures, replacing HID lamps. It features a ballast by-pass for direct wire connection from 120 to 277 V. The expandable 180 deg beam design includes an adjustable base (E39). It emits no UV light and contains no mercury, designed for horizontal operation in shoebox or canopy fixtures.
- High lumen Omni-directional LED for use in shoe box fixtures
- Replaces HID lamps
- Ballast by-pass - direct wire only 120 to 277 V
Product Highlights
This LED lamp is ideal for commercial fixture applications, offering adjustable wattage and color temperature, and is suitable for enclosed fixtures.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S28938R1
Technical Specifications
-
Application: Commercial Fixture Applications
-
Average Life: 50000 hr
-
Beam Angle: 180 deg
-
Beam Type: Spread
-
Color: White
-
Color Rendering Index (CRI): 80
-
CCT: 3000K/4000K/5000K K
-
Designation: 110W/LED/HID/SB/5K/EX39
-
Fixture Type: Enclosed
-
Lamp Base: EX39 Mogul Extended
-
Lamp Finish: White
-
Lamp Type: LED
-
Lumens: 13500L/14500L/15400L Lumens
-
Mfg Standards/Approvals: UL Listed|cULus Listed|RoHS Compliant|DLC Listed
-
Shape: Corn Cob
-
Voltage Rating: 120 to 277 VAC
-
Wattage: 90W/100W/110W W
-
Lamp Ballast Type: Type B
-
Ballasting Requirements: Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
-
Dimmable Text: Only dimmable through wattage selection switch on lamp
-
Lamp Filament: LED
-
Material: Aluminum
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 4KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: True
-
Wattage Selectable: True
-
Finish Family: White
-
Amps: 0.750-0.325/0.833-0.361/0.917-0.397A
-
Lens Material: Polycarbonate (PC)
-
Minimum Compartment Size: Length: 11 in. Width: 11 in. Height: 11.6 in.
-
Operating Position: Universal
-
Power Factor: >0.9
-
SDS Class: LED_Lamp
-
Indoor Outdoor: Outdoor
-
Product Technology: LED
-
Incandescent Equivalent: 750W
-
CCT (Kelvin Temp): 3000K/4000K/5000K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 50000
-
Operating Frequency: 50/60Hz
-
Operating Temp: -30C (-22F) to +45C (+113F)
-
HID Equivalent: 250W/320W/400W
-
Volts: 120V-277V
-
Watts: 90W/100W/110W
-
ANSI Base: EX39
-
MOD Lamps: 8.9
-
MOL: 11.26
-
Installation Notes: Not for use in vapor tight fixtures.
-
Rated For Enclosed Fixture: True
-
Light Source Type: LED
-
Shade Material: Polycarbonate (PC)
-
Power Source: AC
-
Brand: Satco
-
Voltage: 277 Volts
-
Light Source Wattage: 90 Watts
-
Mounting Type: Pole Mount
-
Bulb Features: Dimmable
-
Color Temperature: 5000 Kelvin
-
Color Rendering Index: 80.0
-
Number of Light Sources: 1
-
Specific Uses: Outdoor use only
-
Light Direction: Downlight
-
Luminous Flux: 15400 Lumen
