Product Description
The SATCO S28928 is a wattage selectable LED Hi-Pro wall pack with a CCT selectable feature of 3K/4K/5K. This lamp is an energy efficient lighting solution for large scale lighting applications. Designed to focus clean and efficient LED light at 180 degrees from higher fixtures, this lamp is perfect for parks and parking lots.
- CCT Selectable-3000K, 4000K, 5000K
- Wattage Selectable
- 4KV built-in surge protection
Product Highlights
This versatile lamp is dimmable and delivers 50,000 hours of illumination. It features advanced thermal management and is rated for use in enclosed fixtures.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S28928
-
Country of Origin: China
Technical Specifications
-
Catalog Number: S28928
-
Manufacturer: Satco
-
Brand: Satco
-
Country of Origin: China
-
Made in USA: No
-
Finish: White
-
Shape: Corncob
-
Lumens: 850L/1500L/3000L
-
CCT (Kelvin Temp): 3000K/4000K/5000K
-
Color Temperature: Warm White / Cool White / Daylight
-

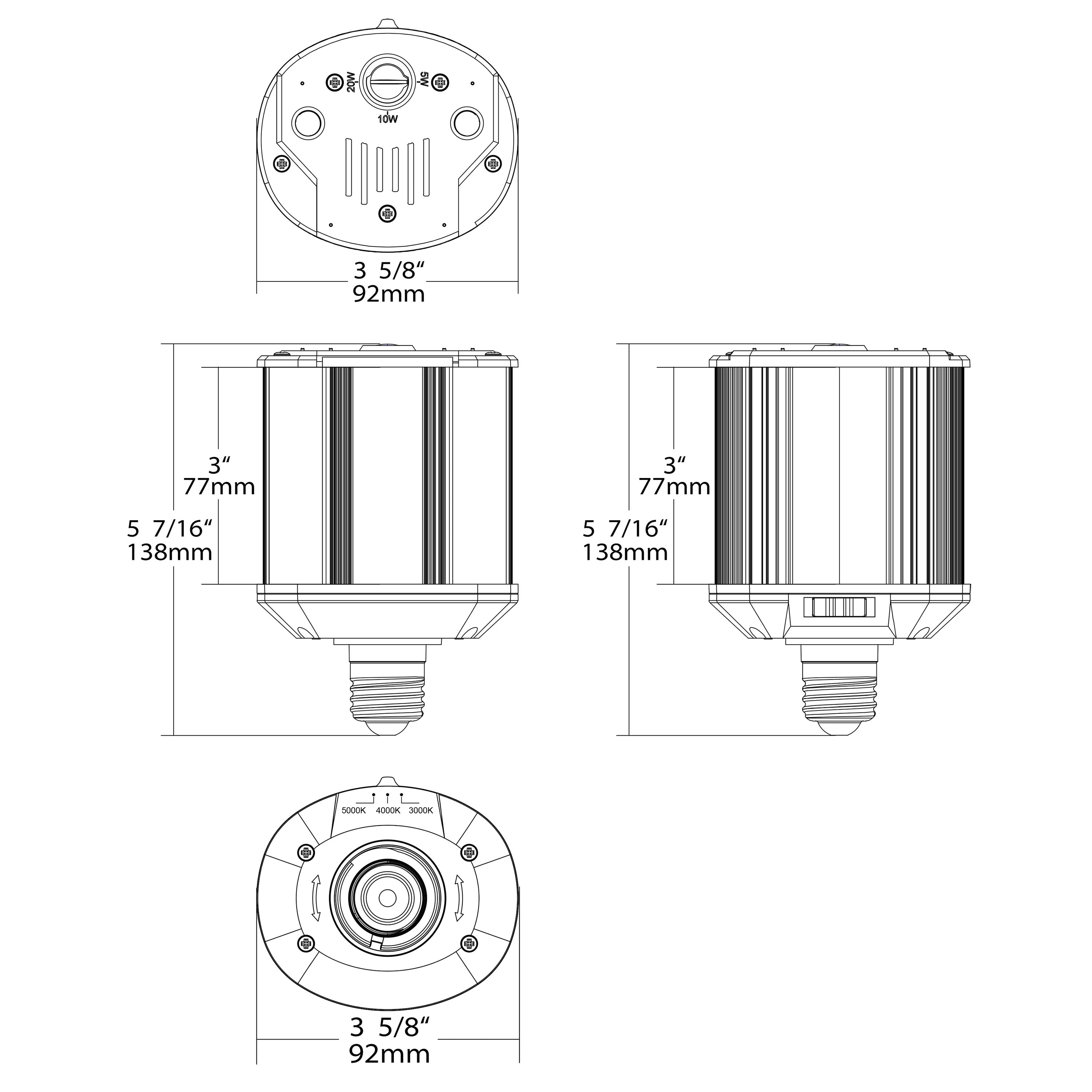

MOL: 5.43 in.
-
MOD Lamps: 3.62
-
ANSI Base: E26
-
DLC Approved: No
-
DLC ID: N/A
-
DLC Classification: N/A
-
Energy Star: No
-
Ballasting Requirements: Ballast Bypass
-
CCT Selectable: Yes
-
HID Equivalent: 100W
-
Indoor Outdoor: Outdoor
-
Lamp Ballast: Type B
-
Lens Finish: White
-
Lens Material: Plastic
-
Material: Plastic and Aluminum
-
Mounting: Horizontal only
-
Operating Frequency: 50/60 Hz
-
Operating Temperature: -30C (-22F) to a maximum of +45C (+113F)
-
R9 Value: 8
-
Location Rating: Damp
-
Surge Protection: 4KV built-in surge protection
-
Wattage Selectable: Yes
-
Standard: cULus Classified - cULus Listed
-
UPC: 045923289286
-
GTIN: 00045923289286
-
Item Type: Corncob
-
Manufacturer Item Status: Active
-
Manufacturer Name: SATCO Lighting
-
Alternative Part Number: 18452348
-
Average Life: 50000 hr
-
Beam Angle: 180 deg
-
Color Rendering Index (CRI): 80
-
Designation: 20W/LED/WP/CCT/E26/100-277V
-
Fixture Type: Enclosed
-
IDEA Index ID: 18452348
-
Lamp Base Type: Medium
-
Lamp Finish: White
-
Lamp Type: LED
-
Type: Replacement
-
Voltage Rating: 100 to 277 V
-
Watts: 5, 10, 20 W
-
Amperage: 0.050-0.018 Amp
-
Dimmable?: Yes
-
IP Rating: IP64
-
Beam Spread: 180
-
Housing Color: White
-
Power Factor: 0.9
-
Wet Location: Damp
-
Correlated Color Temp: 3000 K
-
Average Rated Life: 50000 hr
-
Operating Temp: -22 degrees F
-
US State Ban: CA
-
Company: SATCO
-
Lamp Ballast Type AB: Type B
-

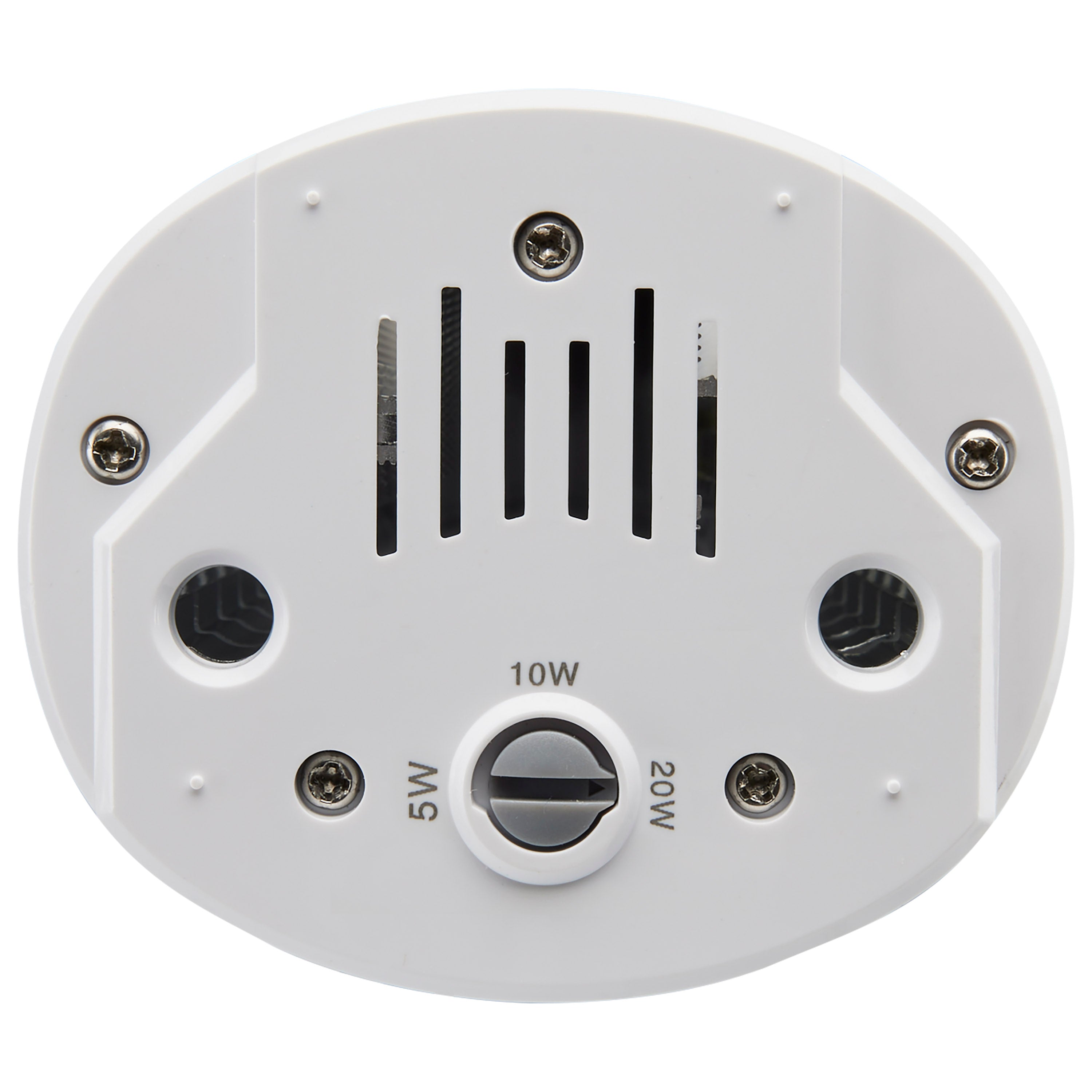

Dimmable Text: Dimmable only via the wattage/lumen selectable dial included on lamp
-
Lamp Filament: LED
-
Status: Active
-
Style: Contemporary
-
Finish Family: White
-
Amps: 0.050-0.018/0.100-0.036/0.200-0.072A
-
Has Camera: False
-
IOT Enabled: False
-
Minimum Compartment Size: Length: 8 in. Width: 8 in. Height: 11 in.
-
Operating Position: Horizontal
-
SDS Class: LED_Lamp
-
Product Technology: LED
-
Incandescent Equivalent: 25W/40W/60W
-
Hours Rated: 50000
-
Beam Angle (degree): 180
-
Color Temp: Warm to Cool White
-
CRI: 80+
-
Volts: 120V-277V
-
Lamp Base: Medium
-
Installation Notes: Not for use in vapor tight fixtures.
-
Rated For Enclosed Fixture: True
