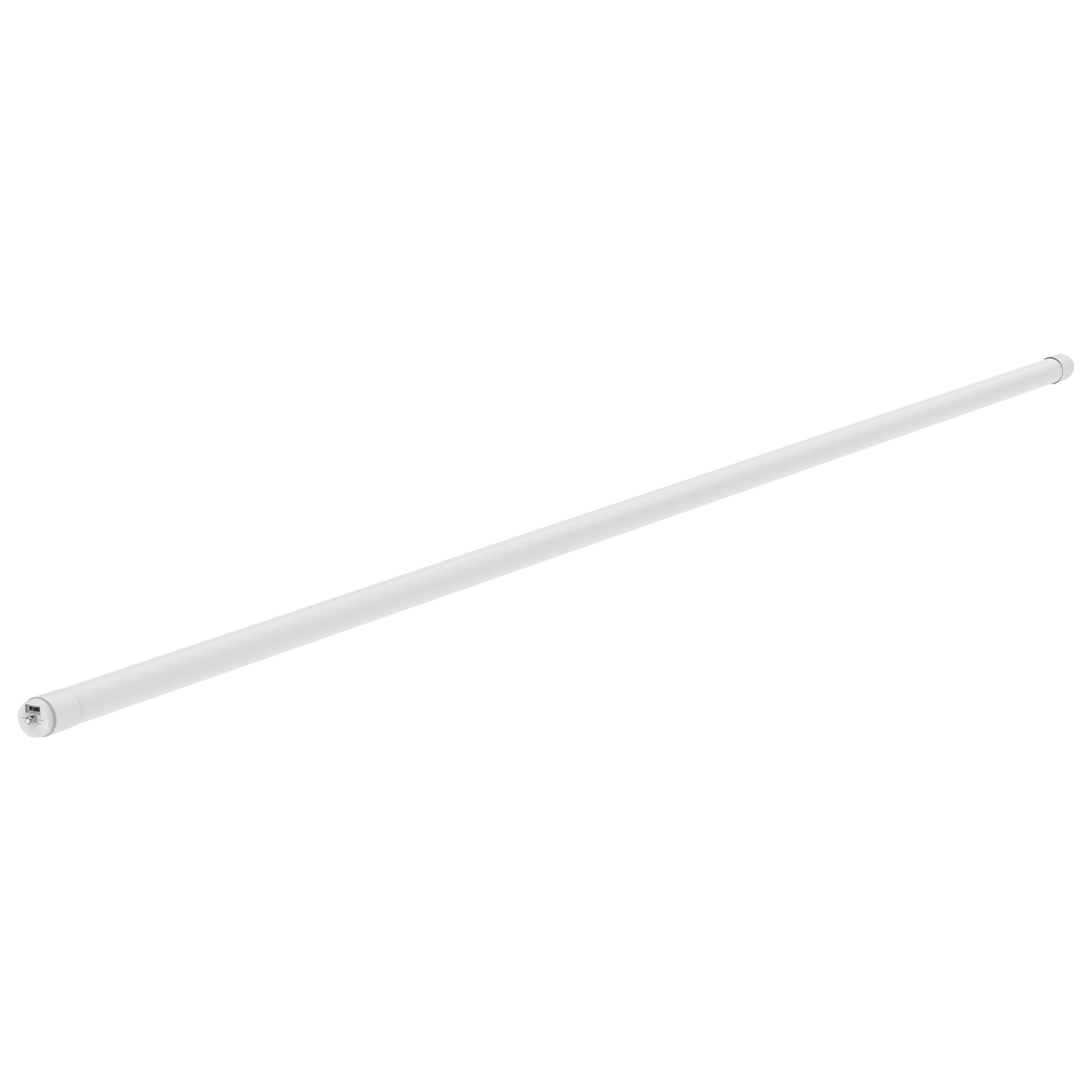

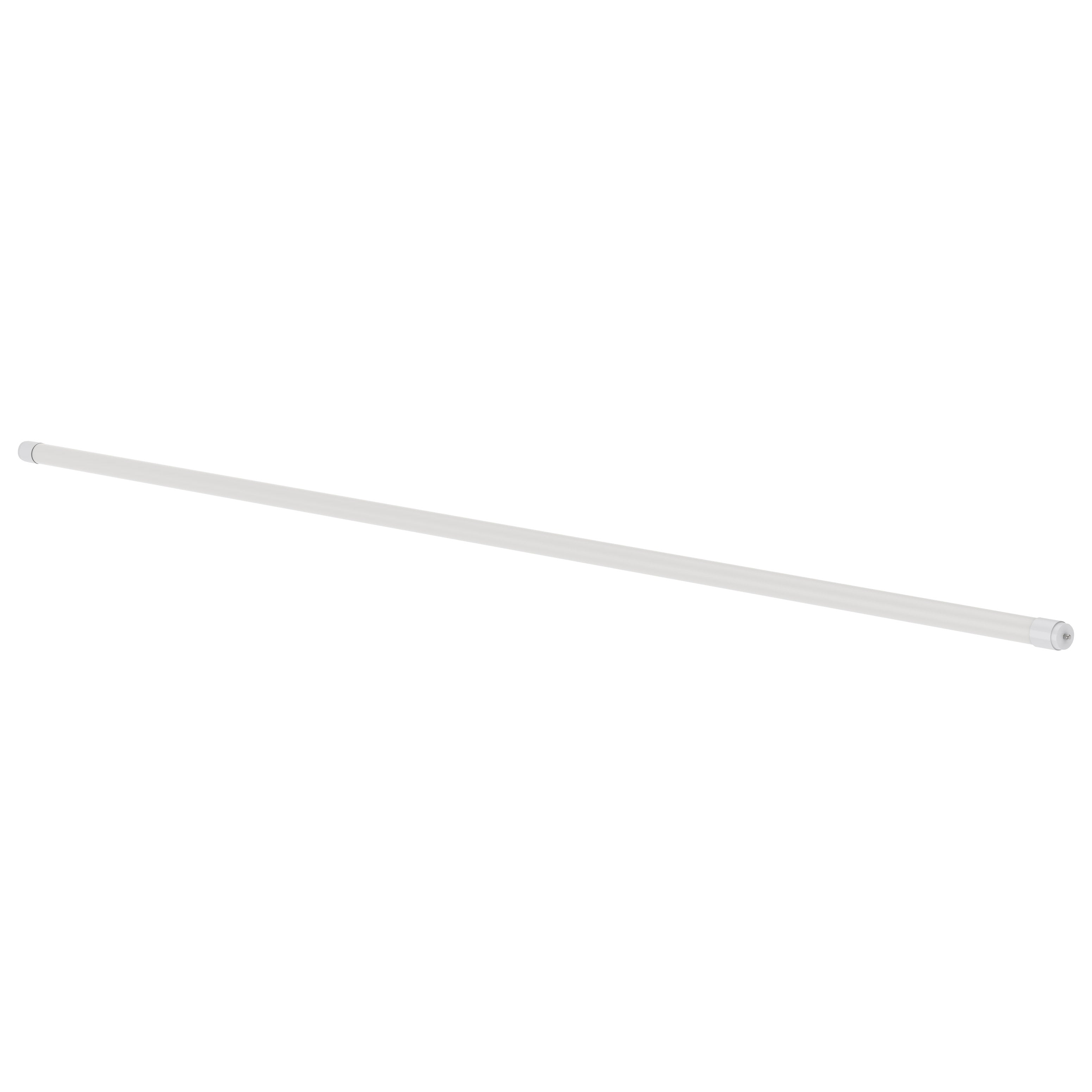

Product Description
The SATCO S26501 is a 40W T12 LED tube, designed as a direct replacement for T12 linear fluorescents. This 2-pack of lamps features a Fa8 base and a selectable color temperature of 3000K, 4000K, 5000K, and 6500K. It is compatible with ballasts and has a frosted finish.
- Flicker Free
- Features a Fa8 (Single pin) lamp base and T12 bulb base for wide compatibility in versatile applications.
- PET coated for shatter-resistance, keeping glass and lamp components contained in case of breakage.
Product Highlights
This 40W LED tube offers adjustable color temperatures and is suitable for damp locations. It is an energy-efficient replacement for 75W fluorescent tubes.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S26501
-
Country of Origin: Vietnam
Technical Specifications
-
Company: SATCO
-
Lamp Ballast Type: Type A
-
Ballasting Requirements: Ballast required, check compatibility
-
Lamp Filament: LED
-
Material: Glass
-
Product Notes: Not for use in vapor tight fixtures.
-
Status: Active
-
Style: Utility
-
Surge Protection: Built-in surge protection - 1KV
-
Total Harmonic Distortion: <25%
-

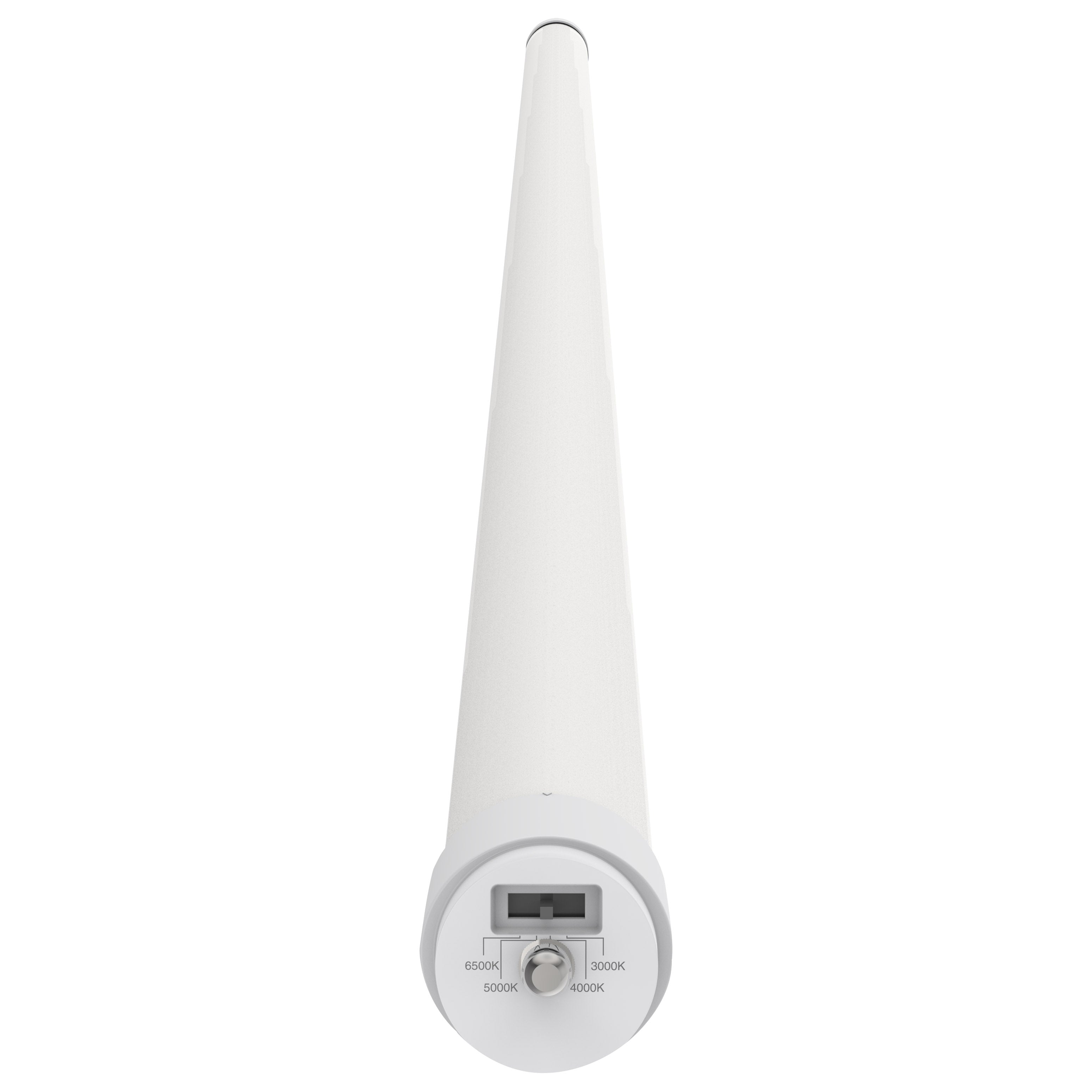

CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish Family: White
-
Amps: 0.133-0.144A
-
IOT Enabled: No
-
Power Factor: 0.9
-
SDS Class: LED_Lamp
-
Shatter Proof Type: PET Coated
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Fluor Equiv: 75W
-
Color Temperature: 3000K/4000K/5000K/6500K
-
Dimmable: Yes-Dimmable
-
Hours Rated: 36000
-
Beam Angle: 240
-
Color Temp: Soft White to Daylight
-
CRI: 80+
-
Operating Frequency: 50/60Hz
-
Operating Temp: -20C (-4F) to +45C (+113F)
-
Lumens: 4400L/5200L/5200L/4800L
-
Volts: Ballast Dependent
-
Watts: 40W
-
Lamp Base: Single Pin
-
Finish: Frost
-
Housing Color: White
-
ANSI Base: Fa8
-
Lamp Type: T12
-
MOD Lamps: 1.42
-
MOL: 94.02
-
Rated For Enclosed Fixture: No
-
Brand: Satco
-
Brand Category: LED Bulb
-
Brand Product Description: 40 Watt T12 LED - 3K/4K/5K/65K CCT - Fa8 Base - 2-Pack
-
Color Rendering Index: 80
-
Lamping Category: LED
-
Lamping Features: Fa8
-
Bulb Color Temp: Soft White to Daylight
-
Bulb Average Hours: 36000
-
Bulb Shape: T12
-
Bulb Spread: 240
-
Bulb Angle: 240
-
Lamping Included: Bulbs Not Included
-
Lamping Type: T12
-
Socket: Fa8
-
Wattage Max: 40.00
-
Diameter: 1.42
-
Length: 94.02
-
Width: 1.42
-
UL Ratings: cETLus Damp
-
Commercial Usage: Yes
-
Residential Use: Yes
-
SMART Enabled: No
-
Manufacturer: Satco
-
MPN: S26501
-
SKU: S26501
-
UPC: 045923265013
-
Efficiency (Lumens Per Watt): 110-130 LPW
-
Color Temperature (Kelvin): 3000K/4000K/5000K/6500K
-
Lighting Technology: LED
-
Base: Fa8
-
Voltage: Ballast Dependent
-
Ballast Operation: Ballast Compatible
-
Rated Life: 36,000 Hours
-
Construction: PET Coated Glass
-
Dimensions: 94.02" MOL x 1.42" MOD
-
Certifications: Title 20 Compliant, Title 24 Compliant, NSF, cETLus, RoHS Compliant
-
Environment: Damp Location Rated
-
Bulb Included: Yes
-
Certificate: Damp Location, RoHS Compliant, FCC, NSF
-
Number of Lights: 1
-
Life Hours: 36000
-
Efficacy: 110.00/130.00/130.00/120.00 LPW
-
Location Rating: Damp
-
Quantity In Pack: 2
-
Enclosed Fixture Use: No
-
Title 20 Compliant: Exempt
-
Title 24 Compliant: No
-
NSF Approved: Yes
-
RoHS Compliant: Yes
-
FCC Compliant: Yes
-
Enclosure Rating: Open Rated Lamp
-
Short Description: 40T12/LED/96/4CCT/DR/2PK
-
Specification Notes: Not for use in vapor tight fixtures.
-
Pack Type: Color Box
-
Country Of Origin: Vietnam
-
Lamp End Type: Double Ended
-
Ballast Bypass Direct: Direct
-
Bulb ANSI Base: Fa8
-
Bulb Base: Single Pin
-
Bulb Finish: Frost
-
Has Emergency Battery: No
-
Has Camera: No
-
JA8 Compliant: No
-
CEC Terse: Lawful for sale in California
-
Bulb Dimmable: Yes-Dimmable
-
Bulb Kelvin: 3000K/4000K/5000K/6500K
-
Beam Spread: 240
-
Dimmable Down To: 100 to 10 percent
-
Dimmable Function: Only Dimmable with Compatible Dimming Ballasts
-
Flourescent Equivalent: 75W
-
Flicker Free: No
