Satco S23161 LED HID Bulb, CCT Select, Type B, Ballast Bypass, E26 Base 27W 277-347V 6 Pack S28711 S8711

Product Description

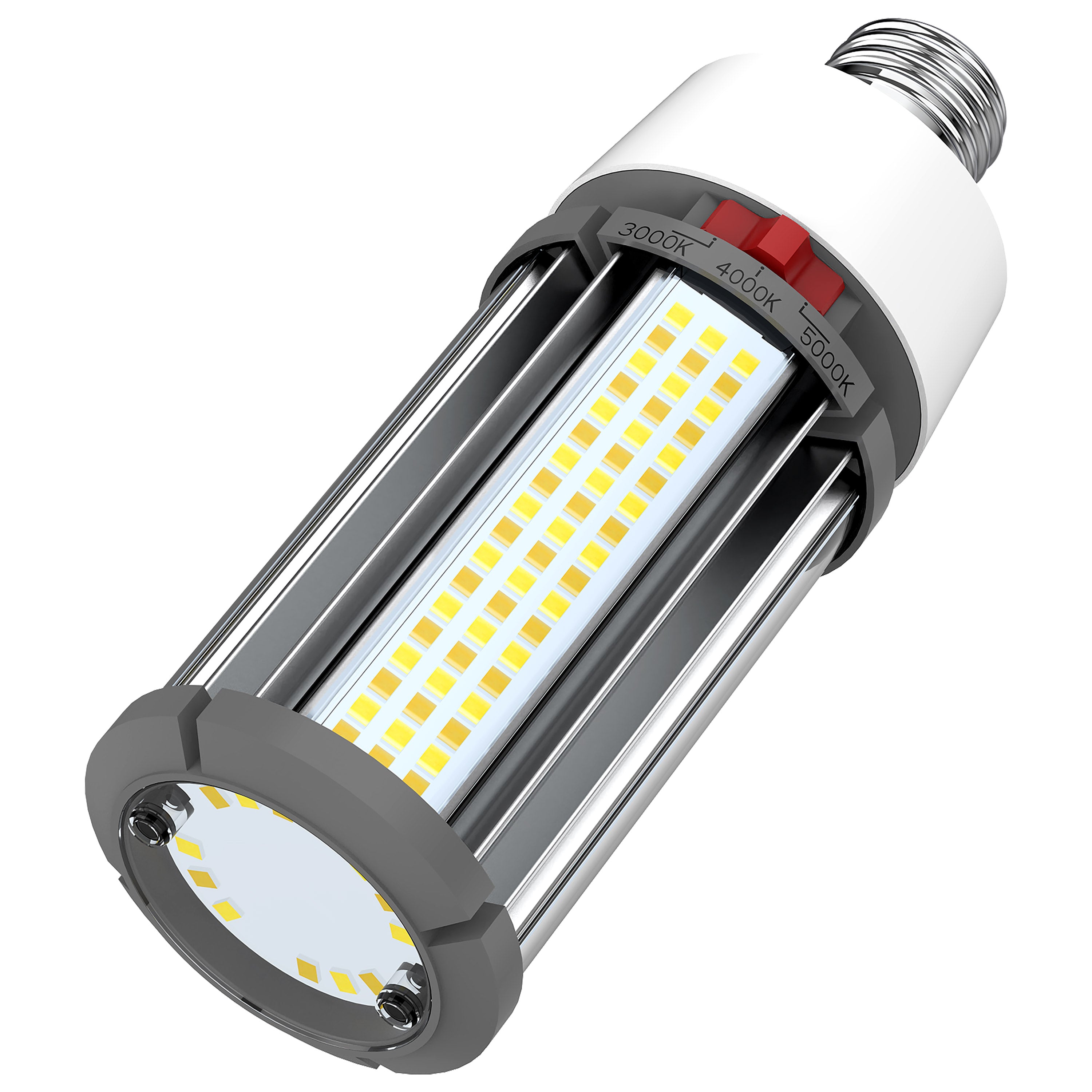

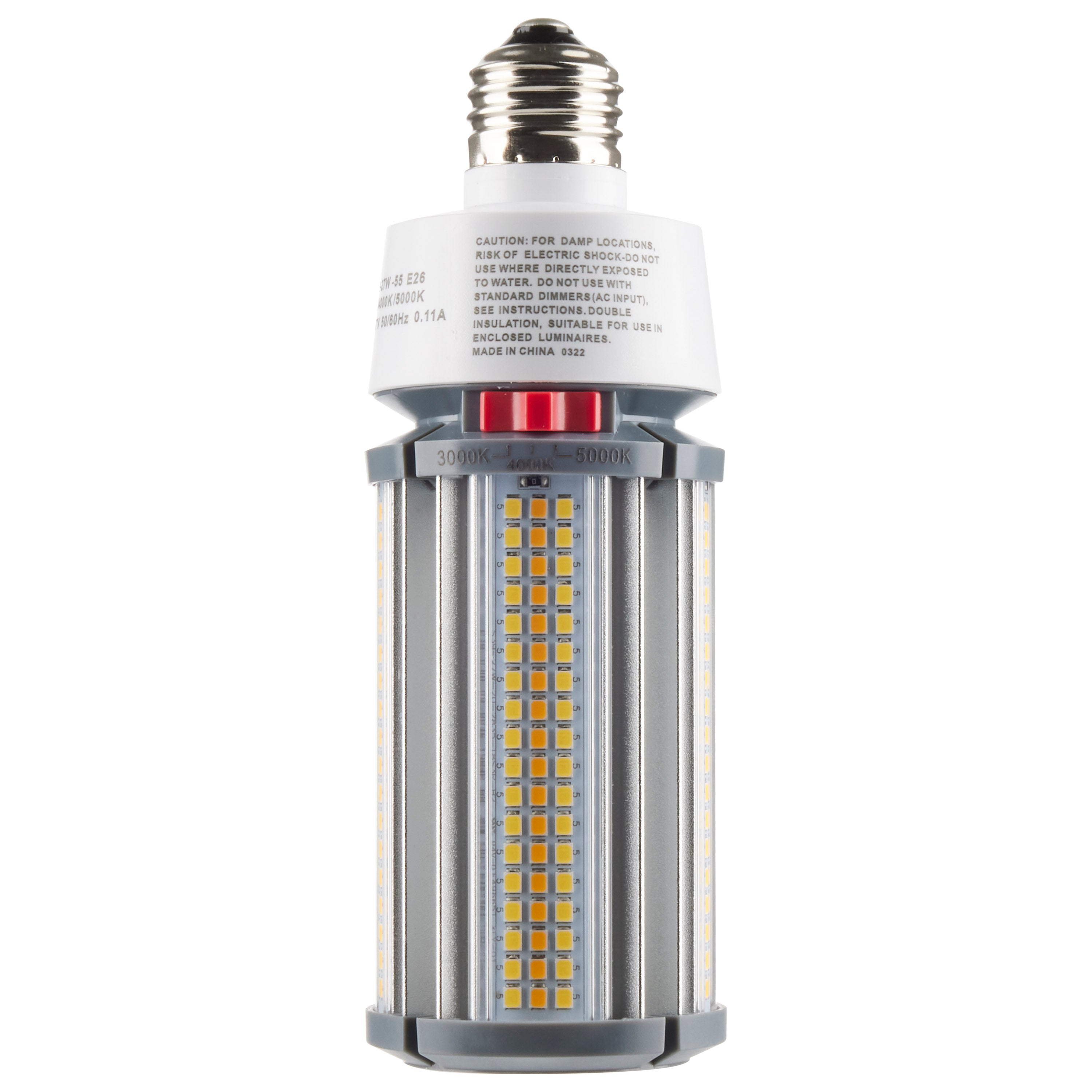

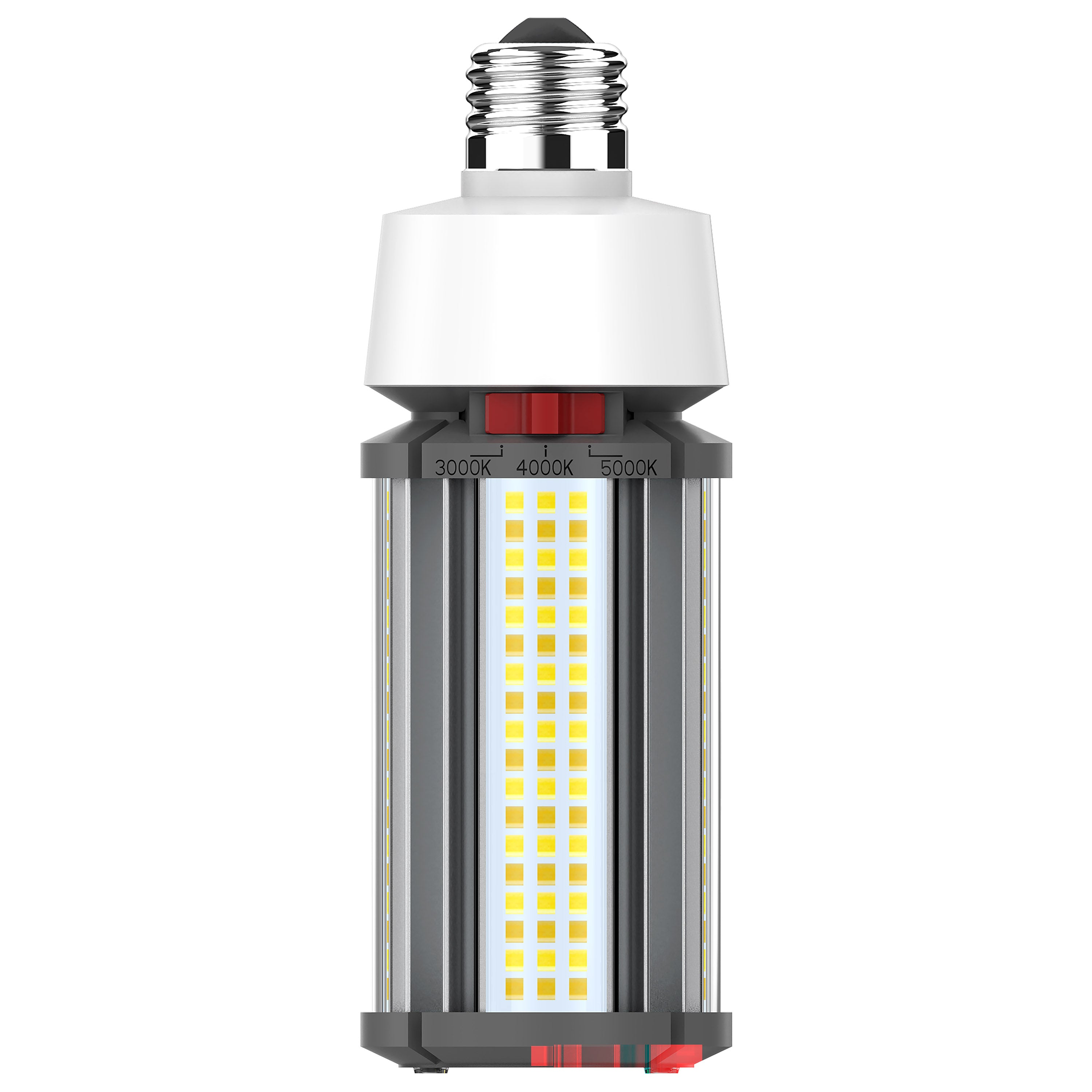

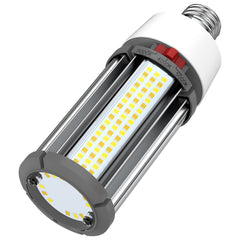

The SATCO S23161 is a 27W LED HID replacement corncob bulb designed for large-scale commercial and industrial applications. This CCT selectable lamp features a Type B ballast bypass design and an E26 medium base, operating on 277-347V. It provides superior light output for venues with high ceilings, such as gymnasiums and warehouses, delivering 50,000 hours of energy-efficient illumination.

• CCT selectable for adjustable color temperature (3000K/4000K/5000K).
• Type B Ballast Bypass design for direct wire installation.
• Long operational life of 50,000 hours with 4KV surge protection.

Product Highlights

CCT selectable LED corncob bulb with 4kV surge protection, suitable for enclosed fixtures and damp locations, offering versatile lighting for various environments.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S23161
• Country of Origin: China

Technical Specifications

• Ballast Type: Type B
• Ballast Requirement: Ballast Bypass
• Light Source Type: LED
• Material: Aluminum / Polycarbonate (PC)
• Bulb Shape: Corncob
• Surge Protection: 4KV
• CCT Selectable: Yes
• Wattage Selectable: No
• Finish: White
• Amperage: 0.097-0.078A
• Lens Finish: Clear
• Lens Material: Plastic
• Operating Position: Universal
• Power Factor: 0.9
• Location Use: Indoor, Outdoor
• Incandescent Equivalent: 100W
• Color Temperature: 3000K/4000K/5000K
• Dimmable: Non-Dimmable
• Rated Life: 50000 Hours
• Beam Angle: 300 Degrees
• CRI: 80+
• Operating Frequency: 50/60Hz
• Operating Temperature: -30°C (-22°F) to +45°C (+113°F)
• HID Equivalent: 125W
• Lumens: 3510L/3780L/3645L
• Input Voltage: 277V-347V
• Wattage: 27W
• Base Type: E26
• Housing Color: Dark Gray
• MOD: 2.36
• MOL: 6.76
• Enclosed Fixture Rated: Yes
• FCC Compliant: Yes
• IP Rating: IP64
• Location Rating: Damp
• RoHS Compliant: Yes
• Safety Listing: cULus - Certified, cULus - Classified, cULus - Listed
• Lumens per Watt: 130, 135, 140
