Product Description

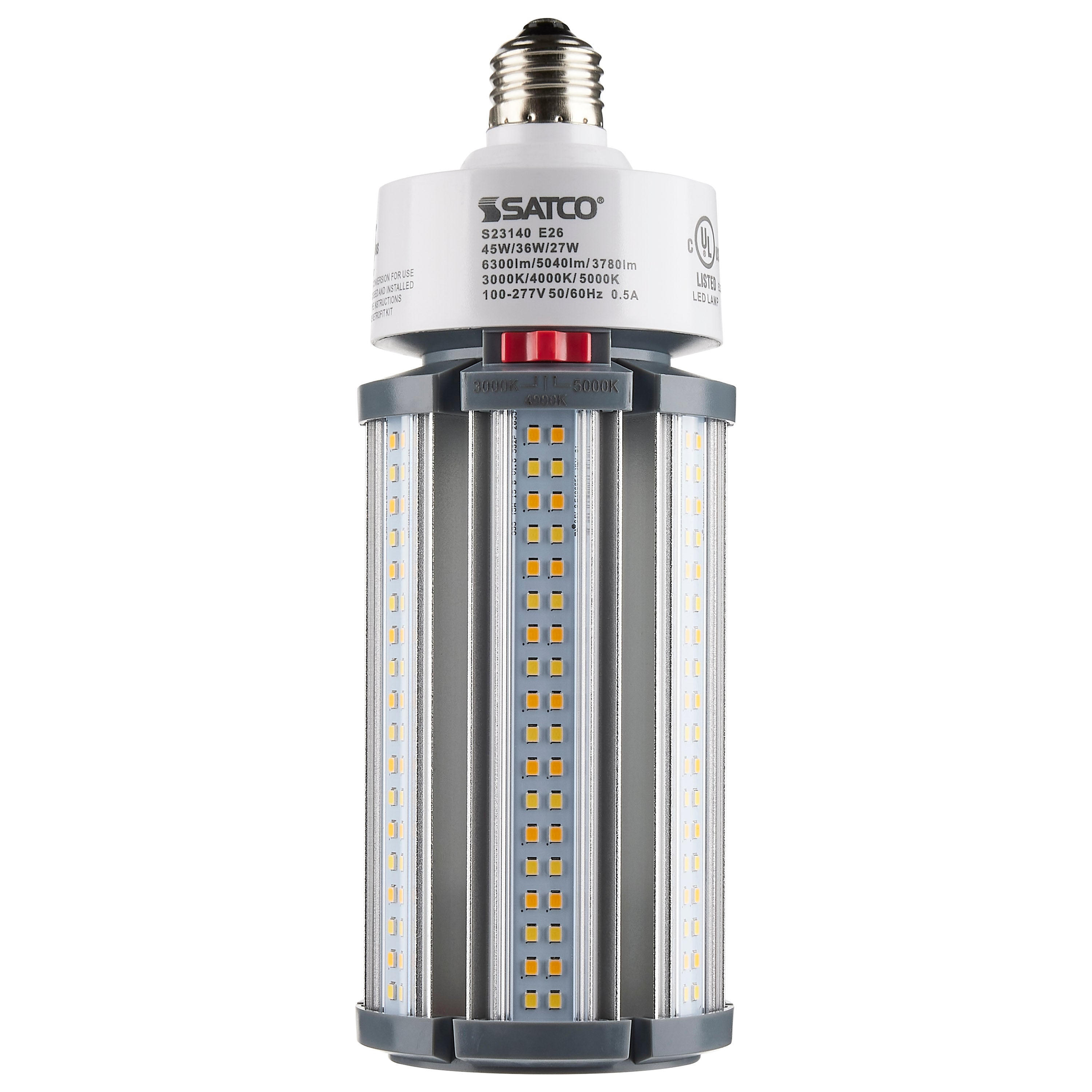

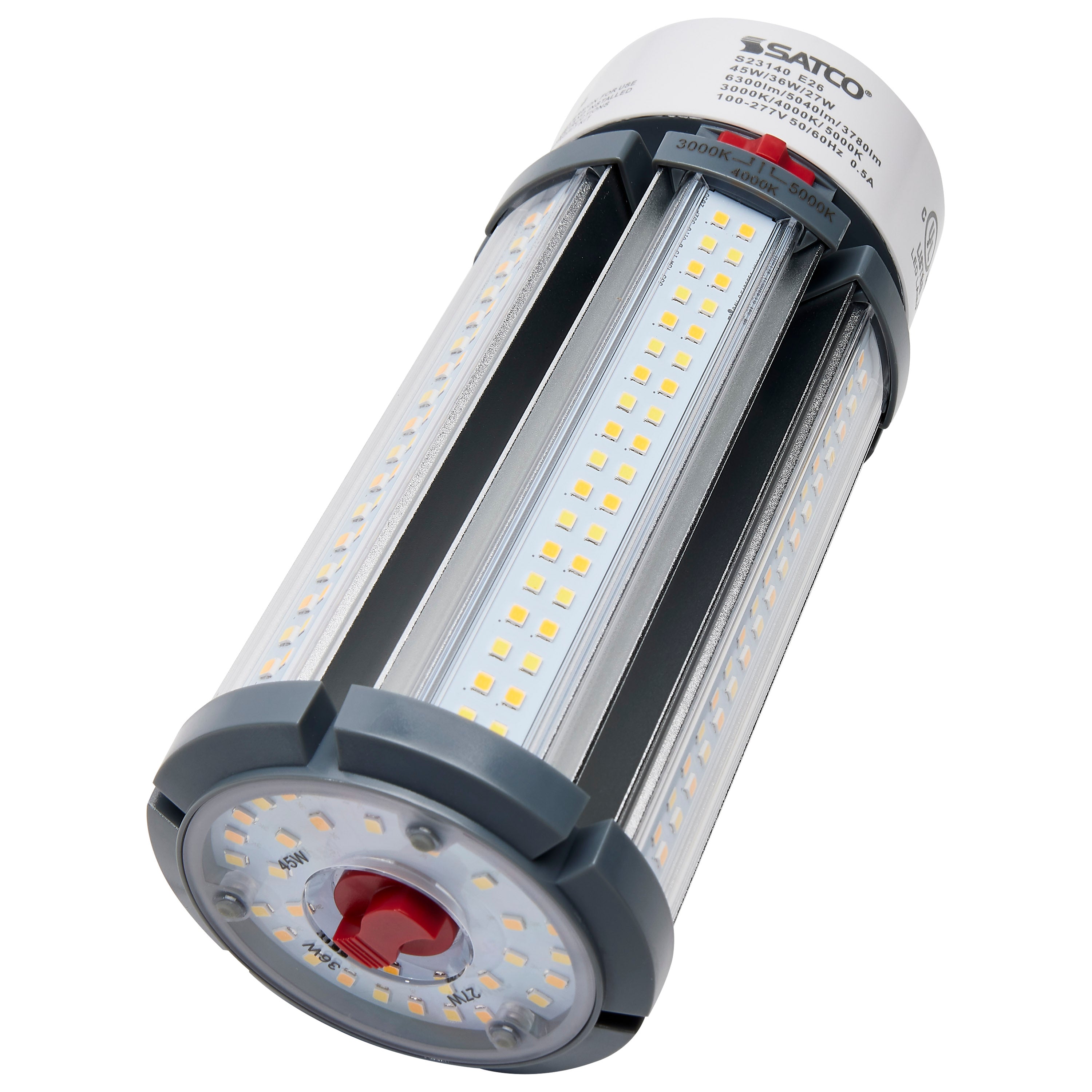

The SATCO S23140 is an LED HID Replacement lamp with selectable wattage and CCT. It offers 45W, 36W, or 27W power options and color temperatures of 3000K, 4000K, or 5000K. Designed for 100-277 Volts, this medium base lamp provides 6300L, 5040L, or 3780L. It is suitable for indoor and outdoor use, including high-ceiling applications, and features a 50,000-hour average life.
- Wattage and CCT selectable for versatile lighting applications.

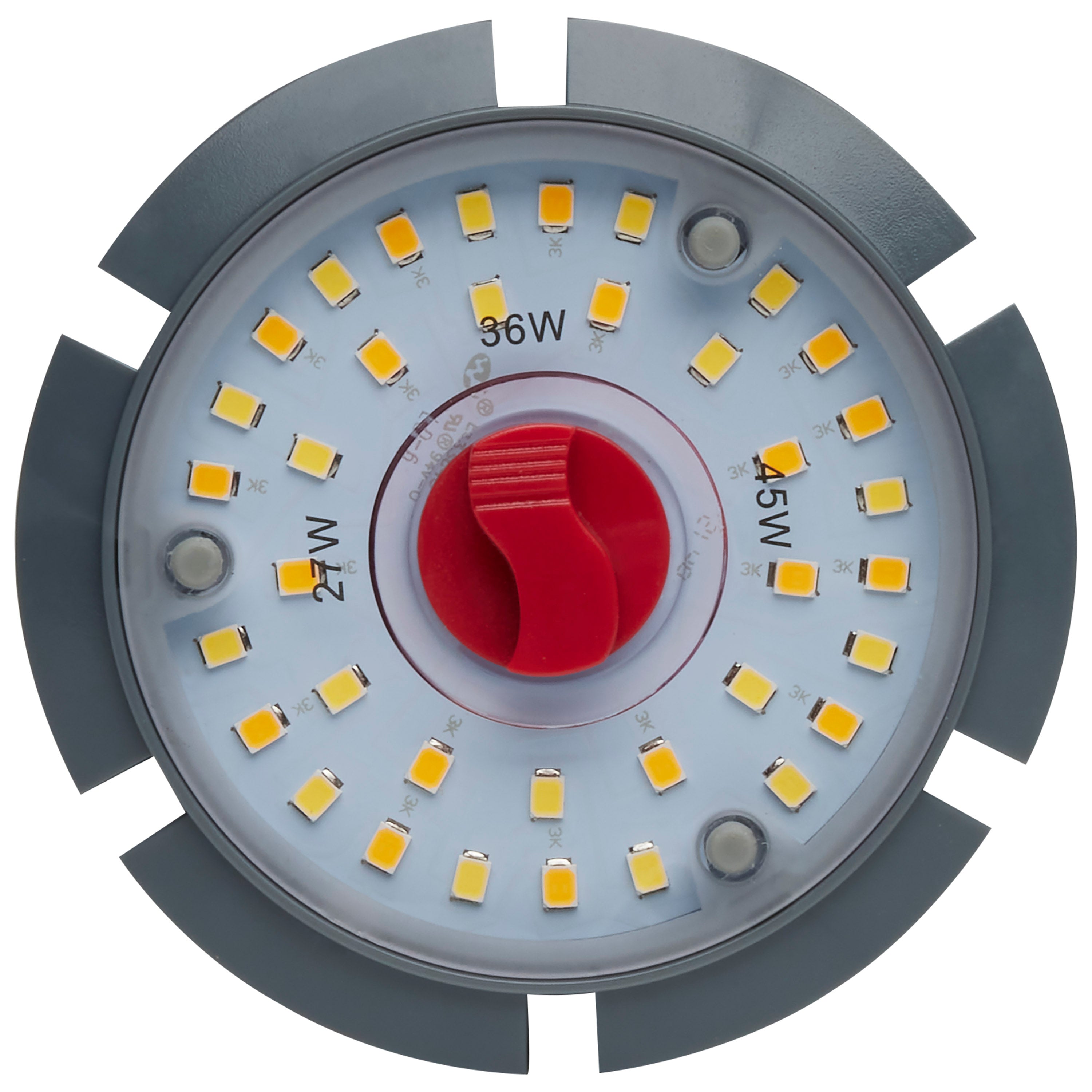

- Dimmable functionality via the wattage/lumen selectable dial on the lamp.
- IP64 rated for indoor and outdoor use, featuring built-in 4KV surge protection.
Product Highlights
This LED HID replacement lamp is ideal for high-ceiling applications requiring customizable, high-lumen output.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S23140
-
Country of Origin: China
Technical Specifications
-
Catalog Number: S23140
-
Manufacturer: Satco
-
Brand: Satco
-
Country of Origin: China
-
Made in USA: No
-
Finish: White
-
Shape: Corncob
-
Certifications: cULus listed, cULus classified, cULus certified, FCC, RoHS, UL Listed
-
Item Type: Corncob
-
Color Temperature (CCT): 3000K/4000K/5000K selectable
-
Bulb Shape: ED28
-
Hi-Pro Brand: Hi-Pro
-
Amps: 0.450-0.162/0.360-0.130/0.270-0.097A
-
Ballasting Requirements: Ballast Bypass
-
CCT Selectable: Yes
-
Wattage Selectable: Yes
-
Dimming Type: Only through wattage selection switch on lamp, Step Dimming
-
Enclosure Rated: Yes
-
FCC Compliant: Yes
-
HID Equivalent: 175W/150W/125W
-
Housing Color: Dark Gray
-
Indoor/Outdoor Use: Indoor and Outdoor
-
IP Rating: IP64
-
Lamp Ballast Type: Type B
-
Lens Finish: Clear
-
Material: Aluminum and Plastic
-
NSF Approved: No
-
Operating Frequency: 50-60 Hz
-
Operating Temperature: -30C (-22F) to +45C (+113F)
-
Power Factor: >0.9
-
Location Rating: Damp
-
Surge Protection: Built-in 4KV
-
Lumens: 6300L/5040L/3780L
-
UPC: 045923231407
-
GTIN: 00045923231407
-
Alternative Part Number: 18454962
-
Average Life: 50000 hr
-
Beam Angle: 360 deg
-
CRI: 80+
-
Designation: 45W/LED/CCT/100-277V/E26
-
EAN: 0045923231407
-
Fixture Type: Enclosed
-
Base Type: Medium
-
Lamp Type: LED Corncob
-
Type: Replacement
-
Input Voltage: 100 to 277 V
-
Wattage: 45W/36W/27W selectable
-
Lens Material: Plastic
-
Operating Position: Universal
-
Product Technology: LED
-
Incandescent Equivalent: 125W
-
ANSI Base: E26
-
Installation Notes: Not for use in vapor tight fixtures.
-
Rated For Enclosed Fixture: Yes
-
Bug Rating: B2-U5-G3
-
RoHS Compliant: Yes
-
California Sale Lawful: Yes
-
DLC Approved: No
-
Title 20: Exempt
-
T24/JA8 Compliant: No
-
Efficiency: 140 lumens/watt
-
Model Name: Hi-Pro
-
Item Type Name: Wattage and Color Temperature Selectable LED Corncob Lamp, HID Replacement
-
Included Components: User Manual
-
ASIN: B09X9D2BKJ
-
Replaces Model: S13140
