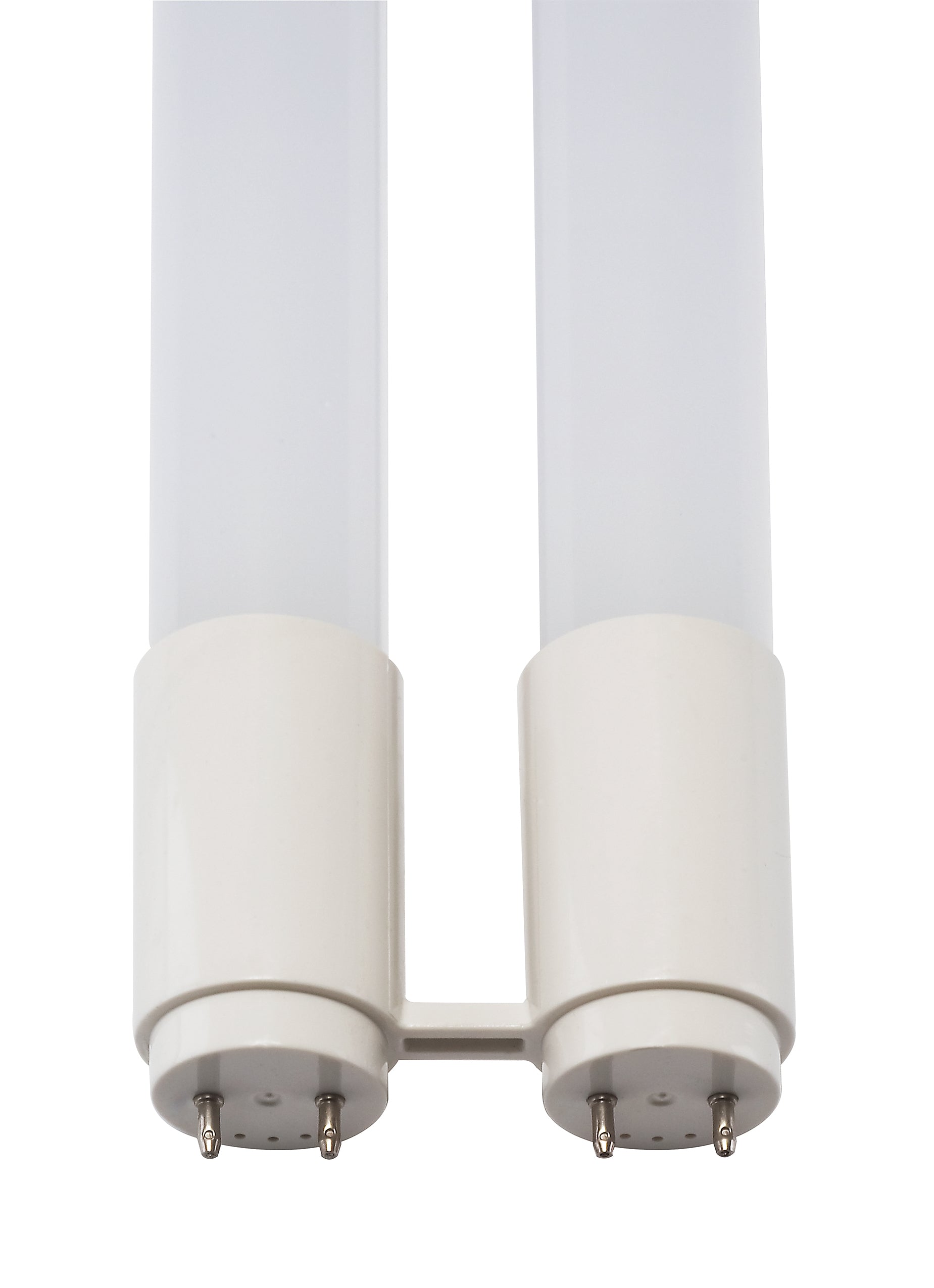

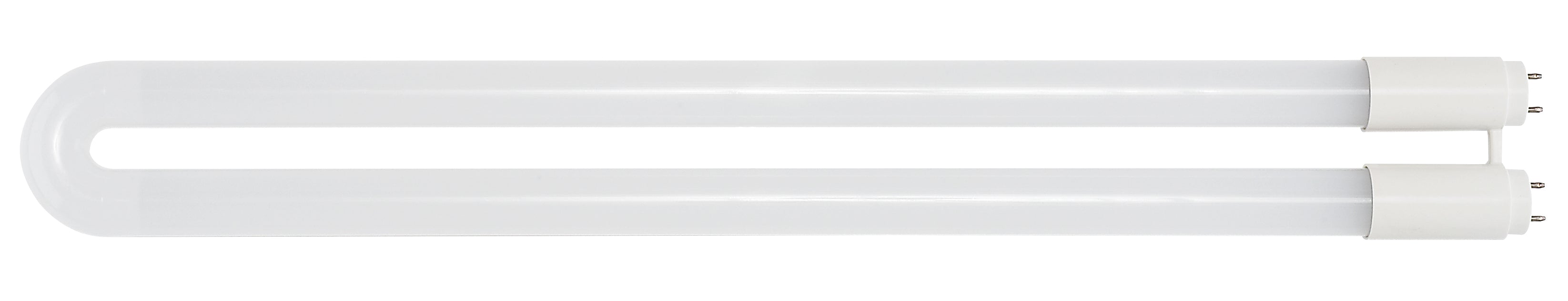

Satco S18452 T8 U-Bend LED 13 Watt 22-1/2 Inch 160 Degree Replaces FB31T8/U1

Product Description

The SATCO S18452 is a 13 Watt T8 U-Bend LED lamp designed for versatile lighting applications. This 22.59 inch U-bend lamp features a G13 medium bi-pin base, delivering 1900 lumens with a 4000K cool white color temperature. It offers a 50,000-hour average rated life and operates as Type A/B, supporting both ballast-dependent and ballast-bypass configurations with single or double-ended wiring. The lamp is shatter-proof, rated for damp locations, and compliant with California regulations.

• Type A/B operation for ballast-dependent or ballast-bypass wiring.
• Provides 1900 lumens with a 4000K cool white color temperature.
• Features a 50,000-hour average rated life and shatter-proof construction.

Product Highlights

Versatile 13W T8 U-Bend LED with 1900 lumens, 4000K, and dual ballast compatibility.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S18452
• Country of Origin: China

Technical Specifications

• Brand: Satco
• MPN: S18452
• Base Type: G13 Medium Bi-Pin
• Lamp Type: T8 U-Bend LED
• Finish: Frosted
• Length: 22.59 Inch
• Lumens: 1900 Lumens
• Input Voltage: 120-277 Volt
• Wattage: 13 Watt
• Amperage: 0.12 Amp
• Diameter: 1 Inch
• Material: Plastic
• Dimmable: No
• Beam Angle: 160 Degree
• Bulb Shape: T8
• Lens Color: Frost
• Power Factor: 0.9
• Location Rating: Damp
• Housing Color: White
• Lens Material: Plastic
• CRI: 80
• Color Temperature: 4000K Cool White
• Average Rated Life: 50000 Hours
• Operating Frequency: 50/60 Hz
• Operating Temperature: -25C (-13F) to +45C (+113F)
• Ballast Compatibility: Type A/B (Ballast Dependent or Bypass)
• Fluorescent Equivalent Wattage: 31 Watt
• LED Chip Type: 2835
• LED End Type: Single Ended / Double Ended
• Number of LEDs: 81
• Surge Protection: 0.7KV Built-in
• Total Harmonic Distortion: 20%
• CCT Selectable: No
• Wattage Selectable: No
• Replaces Fluorescent Lamp: FB31T8/U1
• Leg Spacing: 1.625 Inch
• Lensed: Yes
• Operating Position: Universal
• Shatter Proof: Yes
• Incandescent Equivalent Wattage: 50 Watt
• Rated For Enclosed Fixture: Yes
• Designation: 13T8/U1-G13/LED/840/DUAL
