Product Description

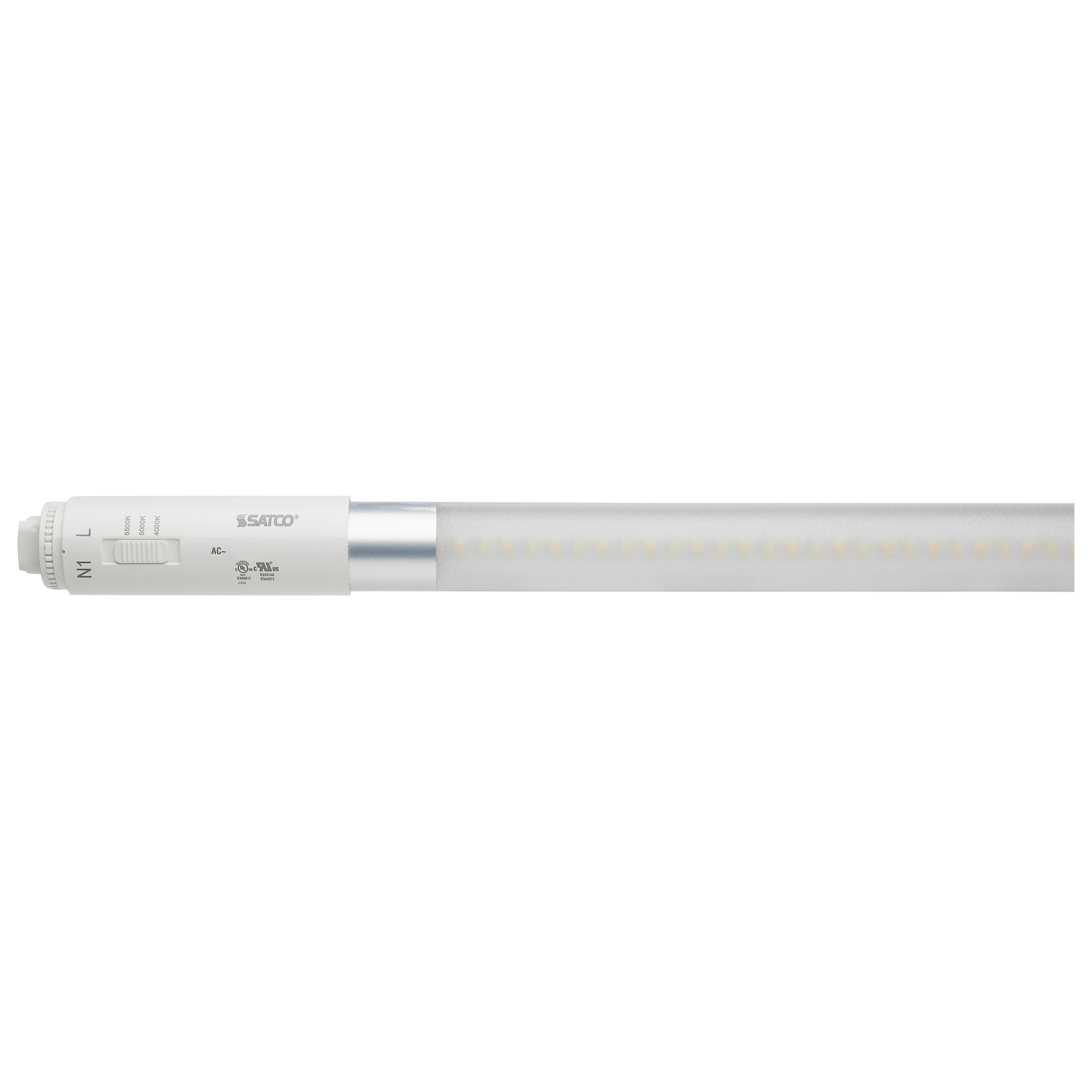

The SATCO S16440 is a 36 Watt T8 LED HO Sign Lamp, 96-inch in length, designed for sign cabinet upgrades. This CCT selectable, Type B ballast bypass LED tube offers single or double-ended wiring for efficient retrofits. It operates on 120-277 Volts and provides 360-degree illumination. Rated for enclosed fixtures and damp locations, it is suitable for various signage applications, offering selectable color temperatures of 4000K, 5000K, or 6500K.

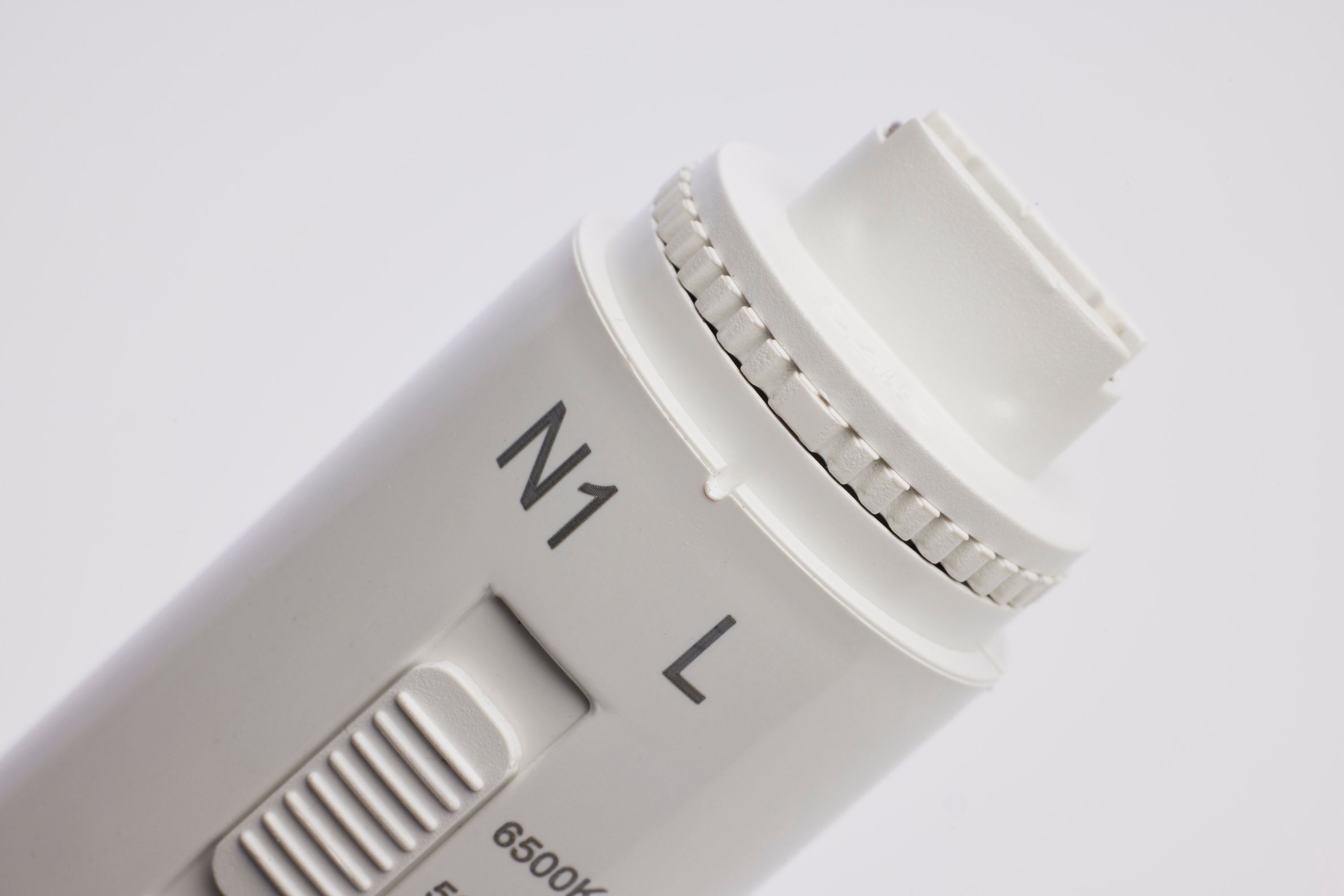

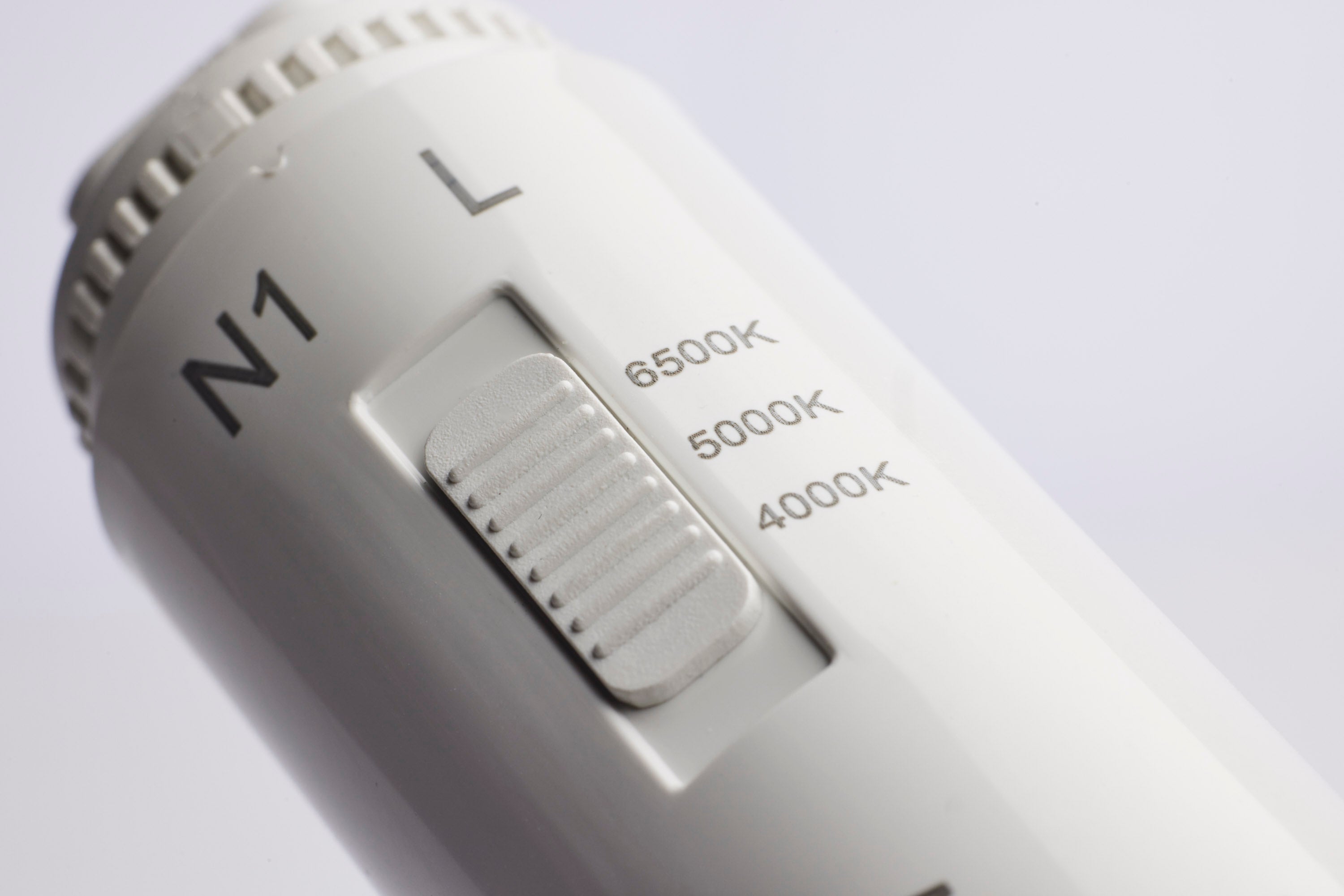

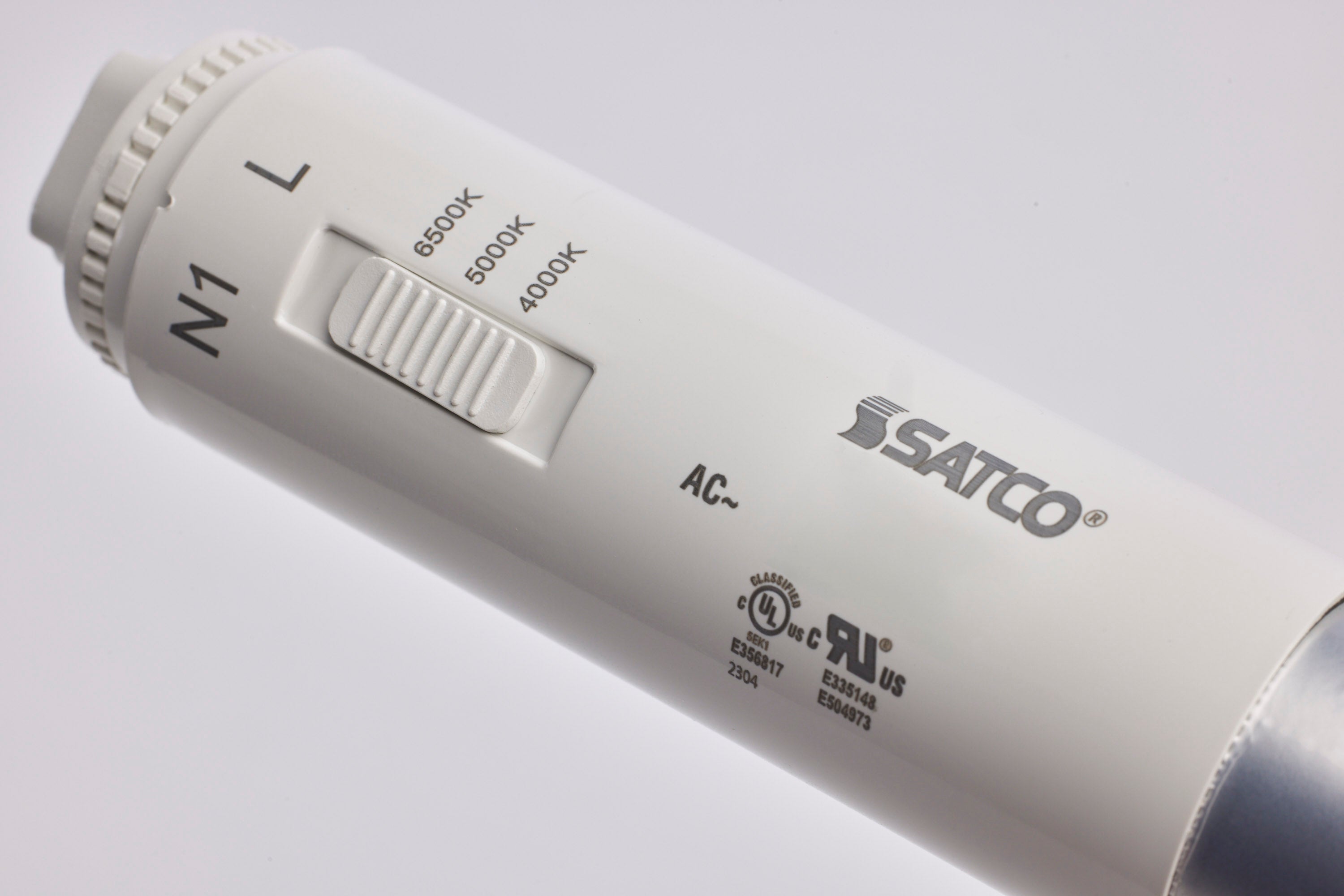

- CCT Selectable
- 120-277 Volt operation
- Single or Double Ended wiring
Product Highlights
Type B Ballast Bypass for simplified installation.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S16440
-
Country of Origin: CN, VN
Technical Specifications
-
Brand: SATCO
-
Ballast Type: Type B
-
Ballast Bypass Type: Ballast Bypass
-
Light Source Type: Linear LED
-
Material: Polycarbonate (PC)
-
Surge Protection: 1KV
-
Total Harmonic Distortion (THD): 25%
-
Tube Guard Use: No
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish: White
-
Amperage: 0.300-0.130A
-
Lens Finish: Frost
-
Lens Material: Plastic
-
Nominal Length: 96.0 inches
-
Operating Position: Universal
-
Power Factor: 0.9
-
Location Use: Indoor
-
Fluorescent Equivalent Wattage: 110W
-
Incandescent Equivalent Wattage: 125W
-
Color Temperature (CCT): 4000K/5000K/6500K
-
Dimmable: No
-
Rated Life: 50000 hours
-
Beam Angle: 360 degrees
-
Color Rendering Index (CRI): 83
-
Operating Frequency: 50/60Hz
-
Operating Temperature: -4F to +113F (-20C to +45C)
-
Lumens: 5000L/5200L/4900L
-
Input Voltage: 120V-277V
-
Wattage: 36W
-

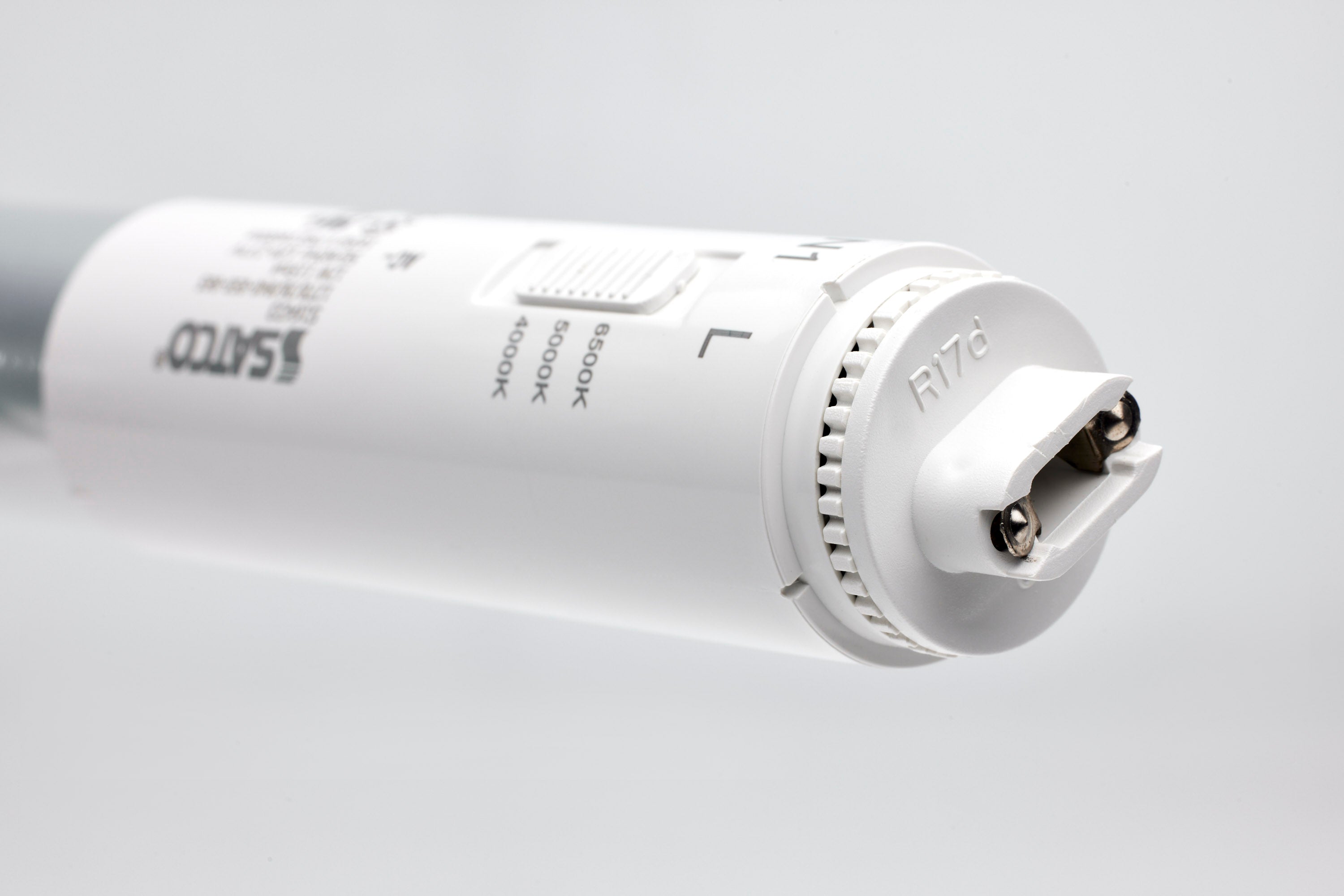

Lamp Base Type: Recessed Double Contact HO/VHO
-
Housing Color: White
-
ANSI Base: R17d
-
Lamp Type: T8
-
Maximum Overall Diameter (MOD): 1.13 inches
-
Maximum Overall Length (MOL): 93.81 inches
-
Rated For Enclosed Fixture: Yes
-
IP Rating: IP20
-
Location Rating: Damp
-
Wiring Operation: Type B ballast bypass; single-ended (SE)
-
Shape: T8
-
Product Designation: 36T8/LED/HO-SIGN/96-3CCT/BP/SE
-
Beam Type: Spread
