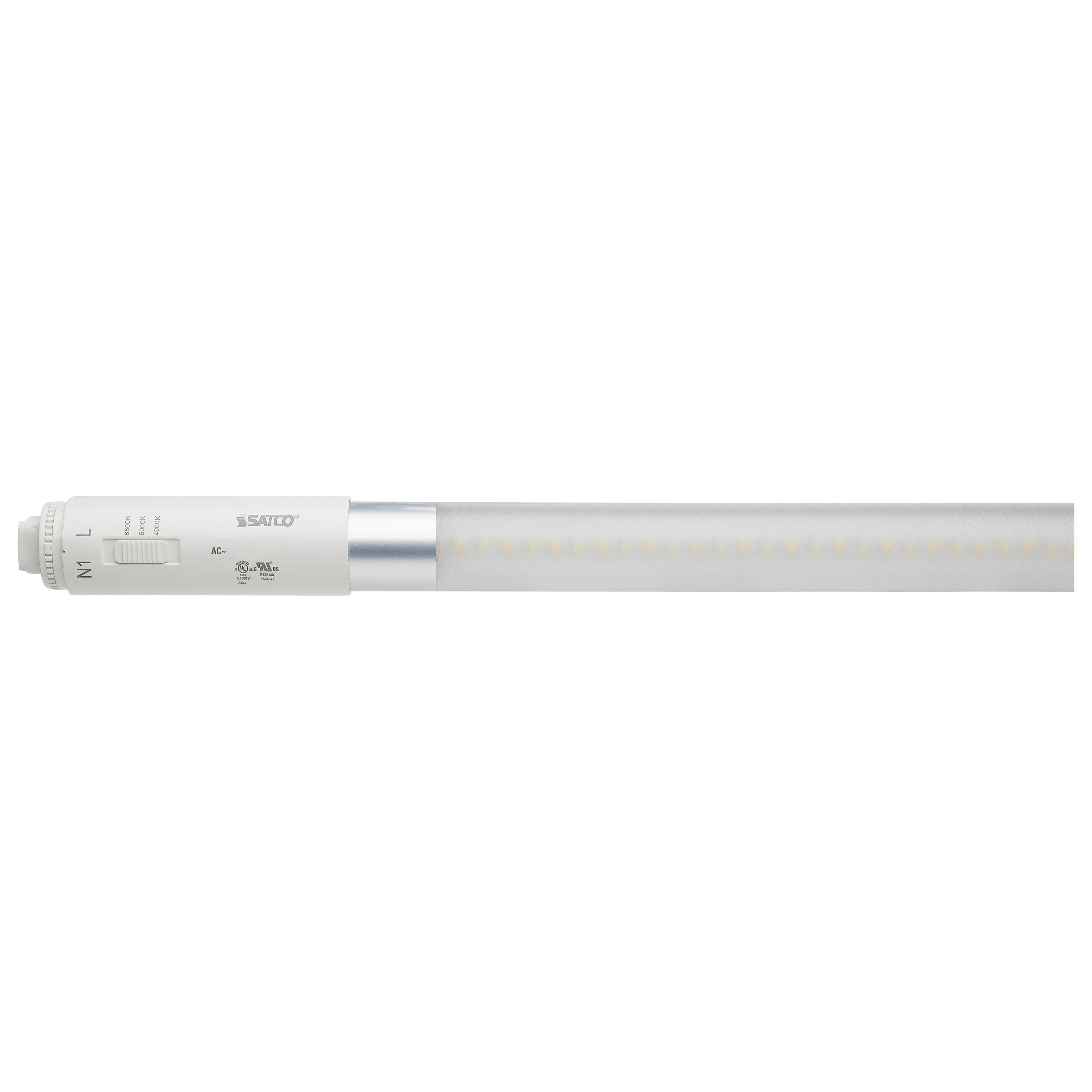

Satco S16431 9 Watt T8 LED CCT Selectable Ballast Bypass Lamp 24-Inch 360 Degree

Product Description

The SATCO S16431 is a 9 Watt T8 LED lamp designed for efficient lighting in various indoor settings. Featuring CCT Selectable technology, it operates on 120-277 Volt systems and supports single or double-ended installation with a Type B Ballast Bypass. This lamp offers 360-degree illumination and a rated life of 50,000 hours, making it suitable for damp locations and enclosed fixtures.

• CCT Selectable
• 120-277 Volt
• Single or Double Ended

Product Highlights

Features CCT Selectable technology, 120-277V operation, and Type B Ballast Bypass for versatile and efficient lighting.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S16431
• Country of Origin: Vietnam

Technical Specifications

• Ballast Type: Type B
• Ballast Bypass: Required
• Technology: LED
• Material: Polycarbonate (PC)
• Fixture Type: Linear
• Surge Protection: Built-in surge protection - 1KV
• THD: 25%
• Tube Guard Use: No

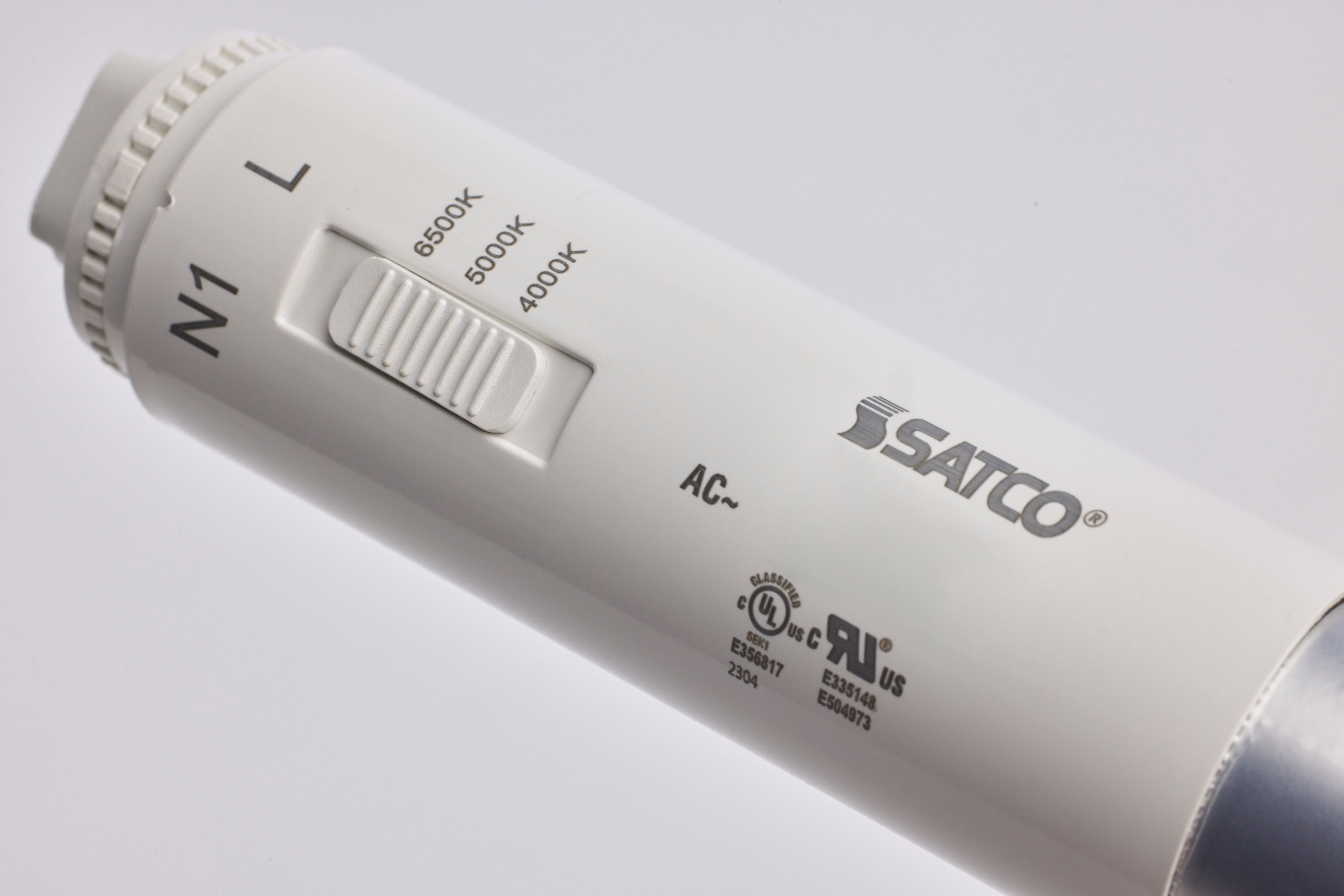

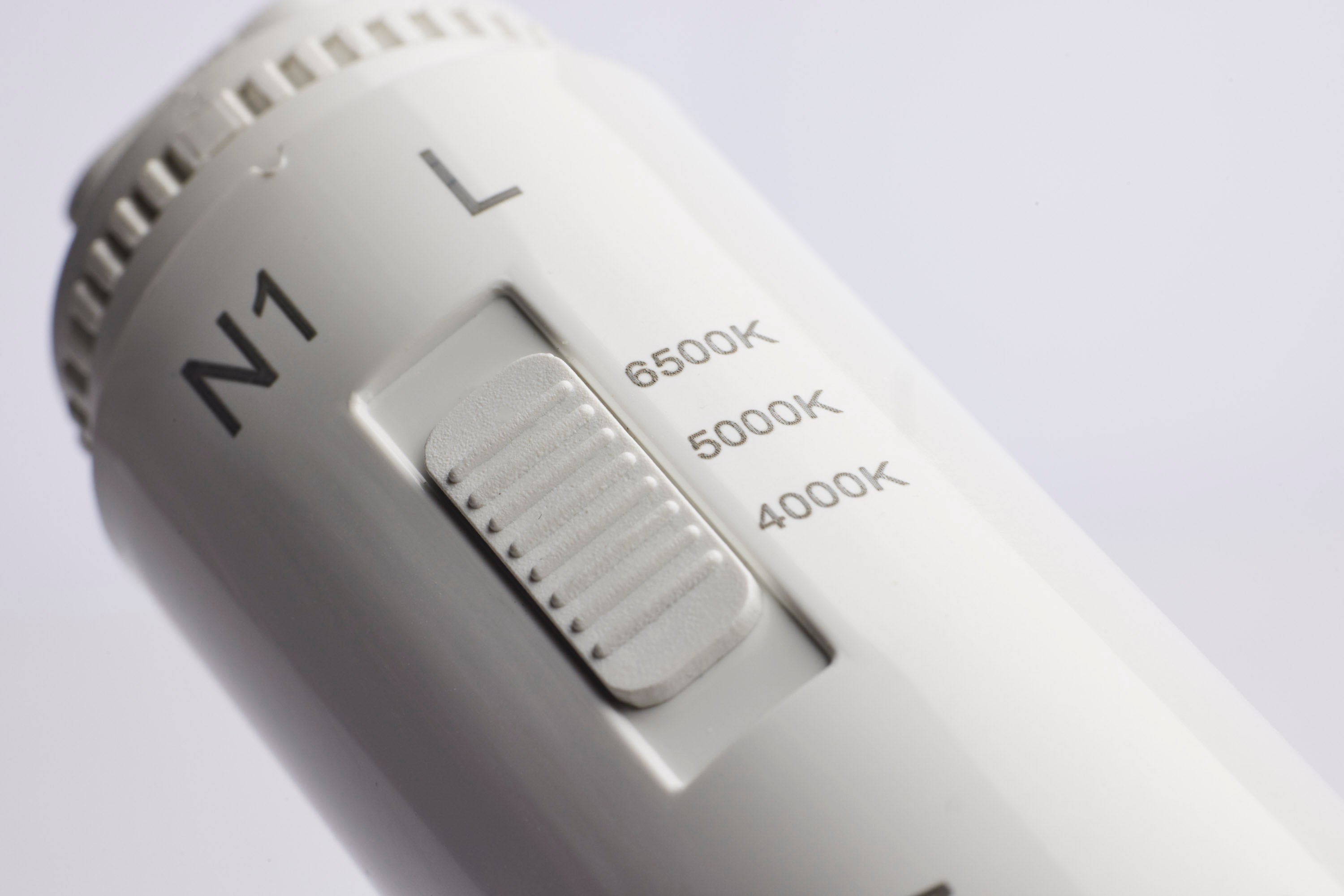

• CCT Selectable: Yes
• Finish: White
• Amperage: 0.075-0.032A
• Lens Finish: Frost
• Lens Material: Plastic
• Nominal Length: 24.0
• Operating Position: Universal
• Power Factor: 0.9
• Location Type: Indoor
• Fluorescent Equivalent: 35W
• Incandescent Equivalent: 40W
• Color Temperature: 4000K/5000K/6500K
• Dimmable: Non-Dimmable
• Rated Hours: 50000
• Beam Angle: 360 degree
• Color Range: Cool White to Daylight
• CRI: 80+
• Operating Frequency: 50/60Hz
• Operating Temperature: -4F to +113F (-20C to +45C)
• Lumens: 1250L/1300L/1200L
• Input Voltage: 120V-277V
• Wattage: 9W
• Base Type: Recessed Double Contact HO/VHO
• Housing Color: White

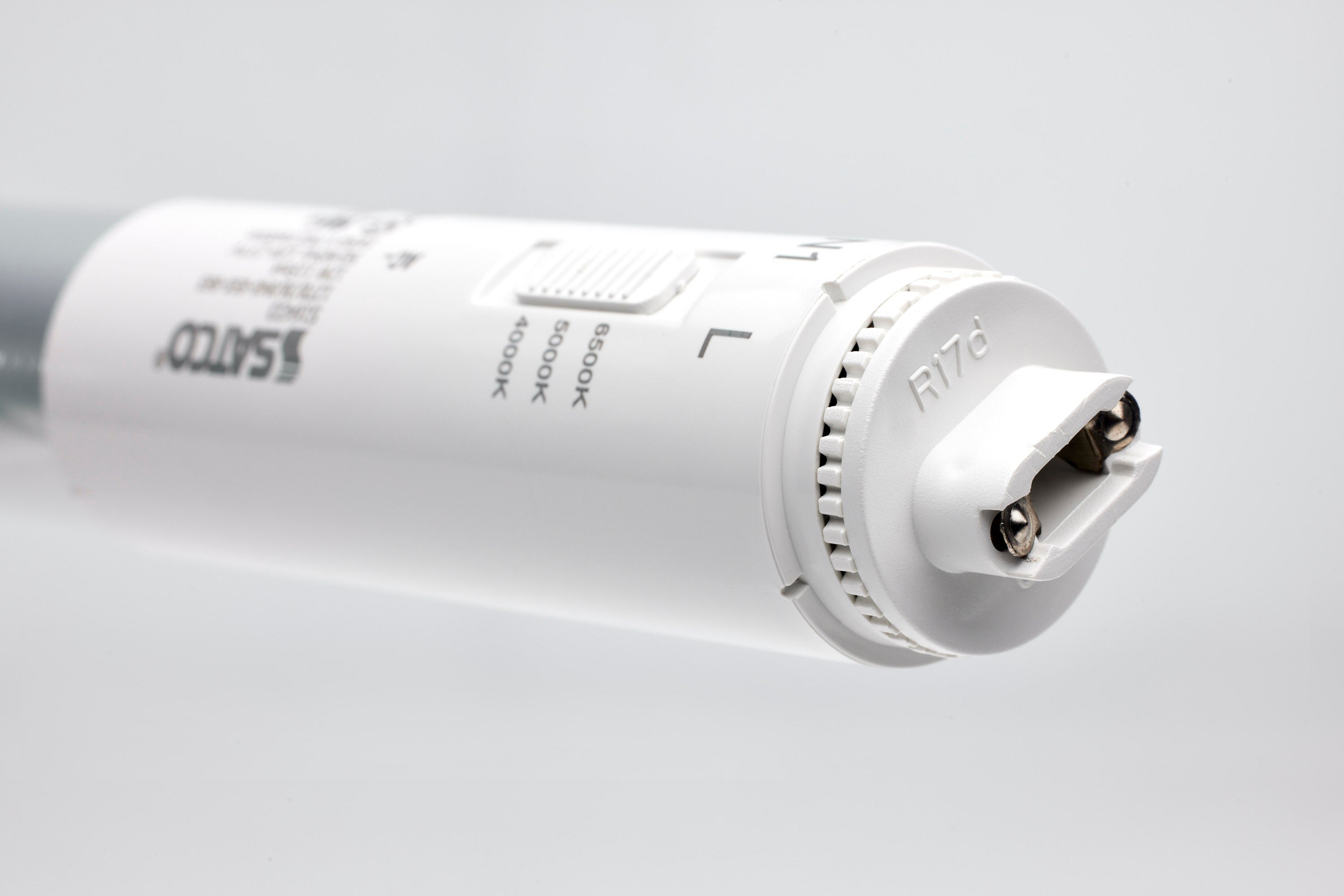

• ANSI Base: R17d
• Lamp Type: T8
• MOD: 1.13
• MOL: 21.81
• Rated For Enclosed Fixture: Yes
• FCC Compliant: Yes
• IP Rating: IP20
• Location Rating: Damp
• NSF Approved: ETL Sanitation listed (conforms to NSF)
• RoHS Compliant: Yes
• Safety Listings: cRUus - Recognized Component, cULus - Certified, cULus - Classified
• DLC Approved: No
• Energy Star: No
• Installation Type: Single or Double Ended
