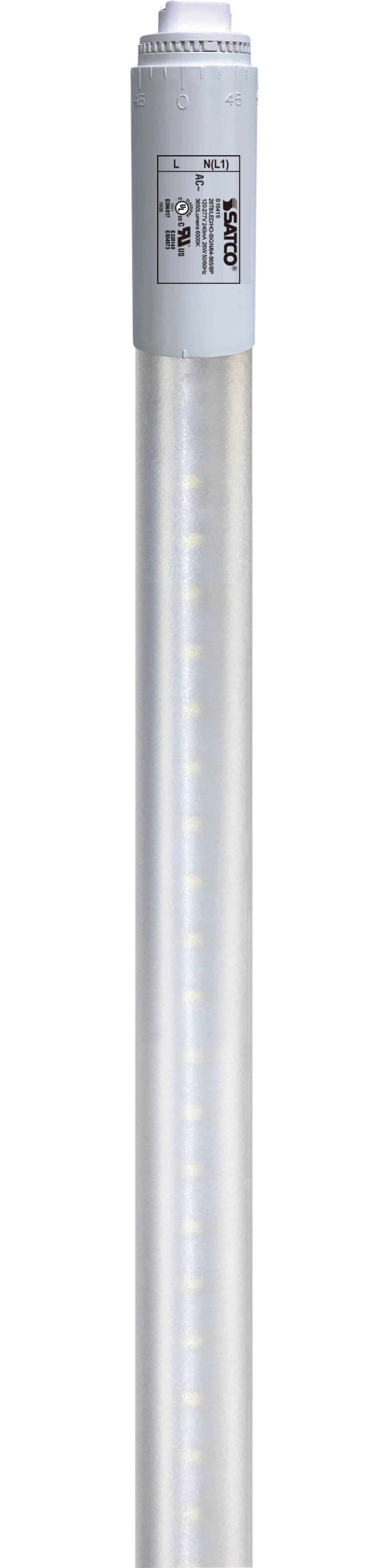

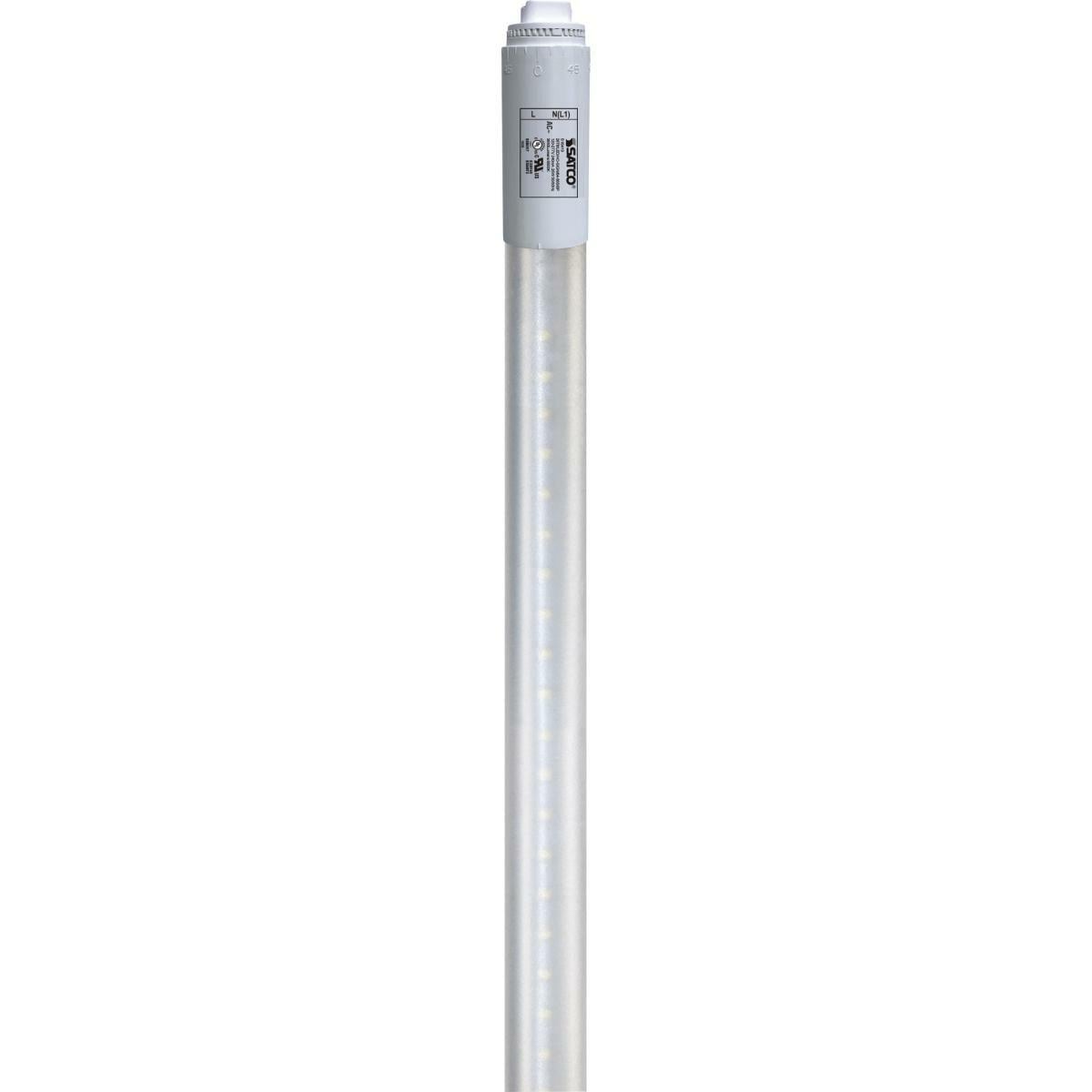

Satco S16419 T8 LED 26-watt 61.88 inch 80W equivalent

Product Description

The SATCO S16419 is a 26-Watt T8 LED lamp designed for general lighting applications, offering a 6500K color temperature and 3650 lumens. Operating on 120-277 Volts, this 61.88-inch double-sided LED tube features Type B ballast bypass and single-ended wiring for direct installation. It serves as an energy-efficient replacement for 80W fluorescent lamps, providing consistent illumination.

• 26-Watt T8 LED with 6500K color temperature and 3650 lumens output.
• Operates on 120-277 Volts with Type B ballast bypass and single-ended wiring.
• Double-sided LED design, suitable for damp locations, and NSF approved.

Product Highlights

Energy-efficient 26-Watt T8 LED tube with 3650 lumens and 6500K daylight color, featuring ballast bypass for direct wire installation.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S16419
• Country of Origin: China

Technical Specifications

• MPN: S16419
• Brand: Satco
• Dimmable: No
• Lamp Type: LED
• Lumens: 3650
• Shape: T8
• Enclosed Fixture Rated: Yes
• Equivalent Wattage: 80W Fluorescent
• Housing Color: White
• Lens Finish: Clear
• Base Type: Recessed Double Contact HO/VHO
• Ballast Type: Type B
• Wiring Type: Single Ended
• Lens Material: Nano
• NSF Approved: Yes
• Operating Frequency: 50/60 Hz
• Operating Temperature: -30C (-22F) to +45C (+113F)
• Power Factor: 0.9
• Safety Listing: cULus Classified - Damp, cRUus - Recognized Component, cULus - Certified, ETLus - Sanitation Recognized Component, UL Rated
• Input Voltage: 120-277V
• Tube Guard Use: Not Approved
• Product Type: Linear
• Length: 61.88 Inch
• Diameter: 1 IN
• Wattage: 26 W
• Color Temperature: 6500K
• LED Type: Double Side
• Rated Life: 50000 hours
• Beam Angle: 360 degree
• CRI: 80+
• Material: Plastic
• Amperage: 0.217-0.094A
• Operating Position: Universal
