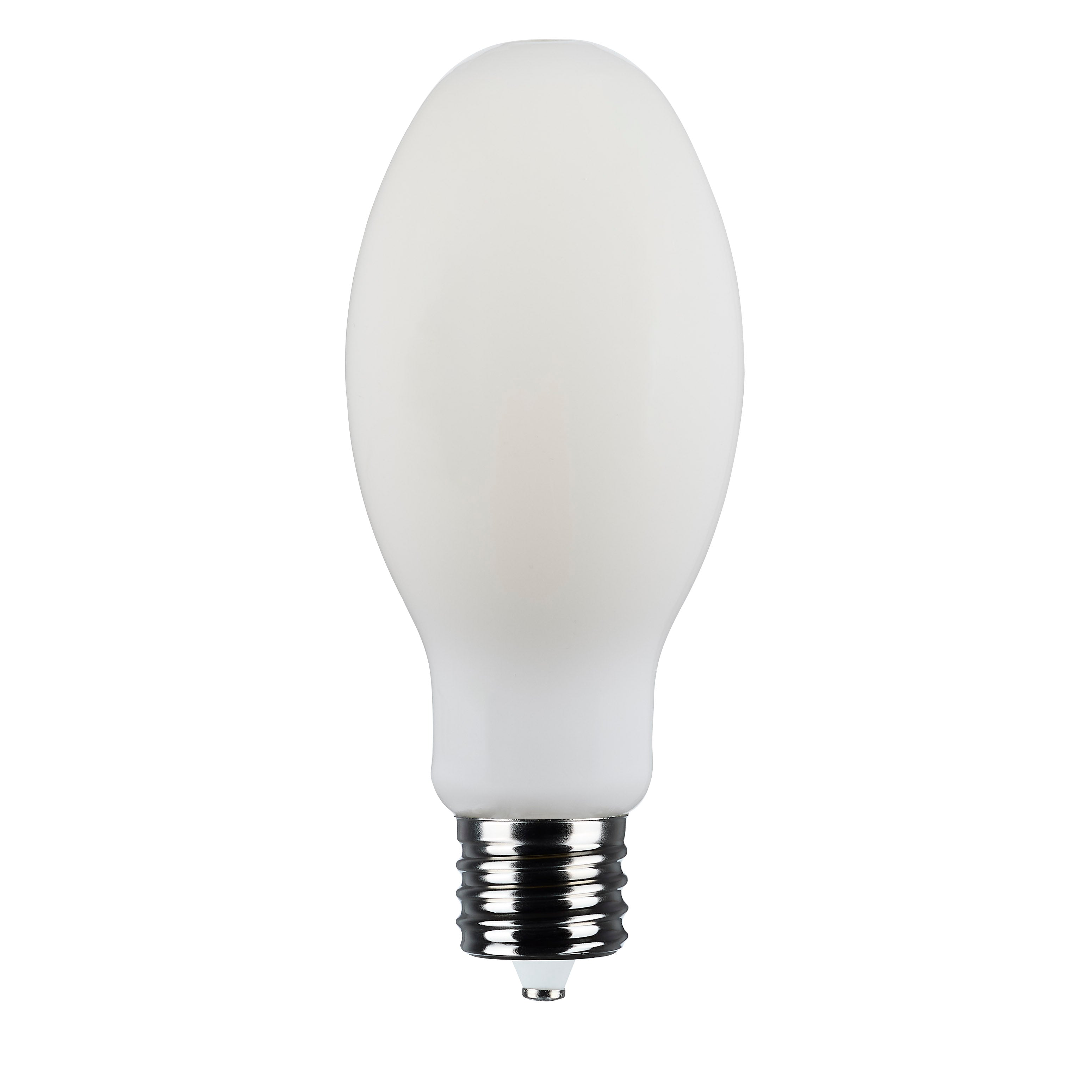

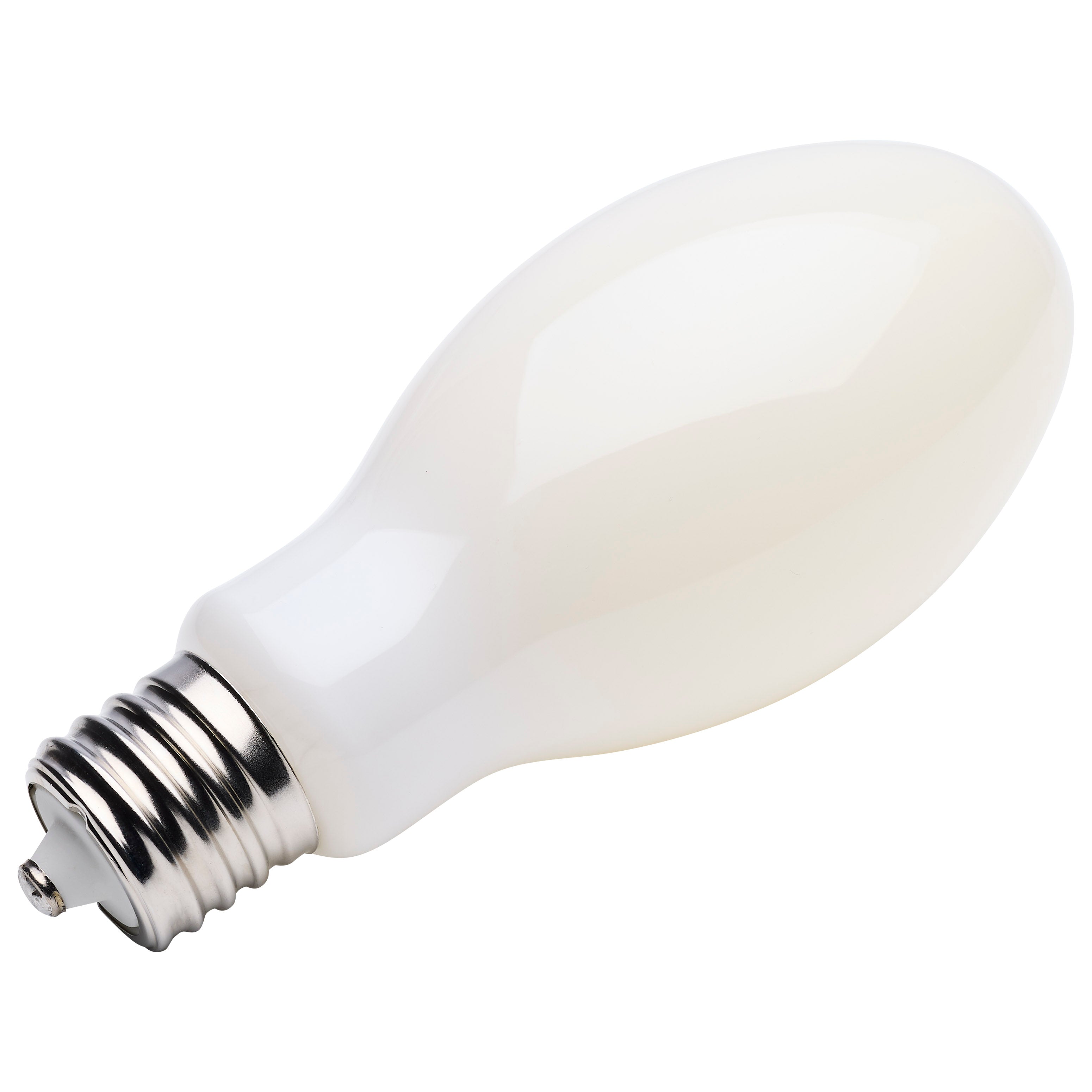

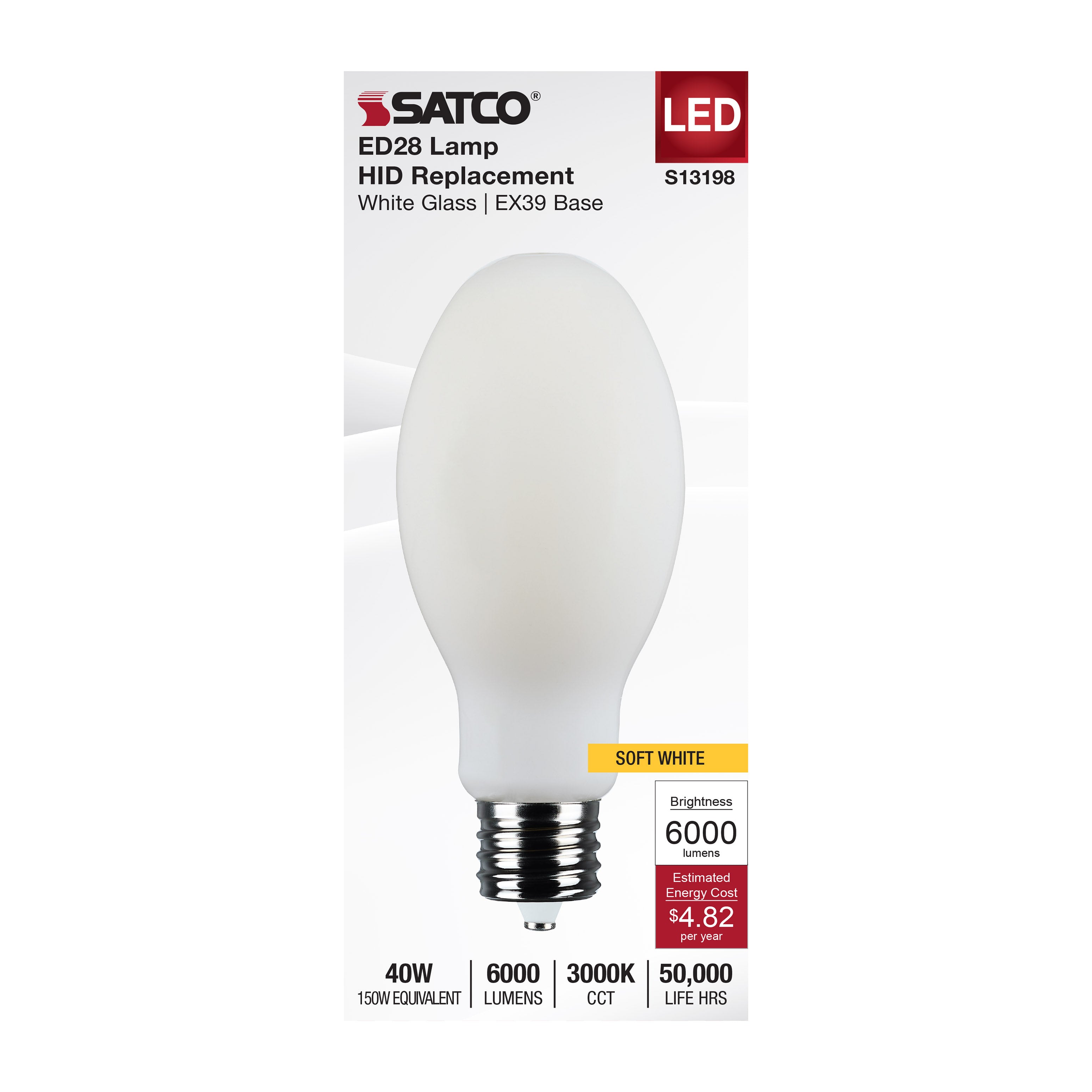

Satco S13198 40W/LED/HID/ED28/830/EX39/WH

Product Description

The SATCO S13198 is a 40 Watt LED HID replacement with an ED28 lamp type. Operating within a 120V-277V range, this lamp features built-in surge protection of 4KV and is rated for enclosed fixtures. It emits a soft white light at 3000K with a CRI of 80+ and a 320-degree beam angle. Not for use in vapor tight fixtures.

• 40 Watt LED HID Replacement
• ED28
• 3000K CCT

Product Highlights

40W LED HID replacement with Mogul Extended Base, suitable for indoor and outdoor use. Features 3000K color temperature and 120-277V range voltage.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S13198

Technical Specifications

• Lamp Ballast Type AB: Type B
• Ballasting Requirements: Ballast Bypass
• Lamp Filament: LED
• Material: Glass
• Fixture Type: LED HID
• Status: Active
• Style: Utility
• Surge Protection: Built-in surge protection - 4KV
• Total Harmonic Distortion: <20%
• CCT Selectable: False
• Wattage Selectable: False
• Finish Family: White
• Amps: 0.412-0.178A
• Has Camera: False
• IOT Enabled: False
• Operating Position: Universal
• Power Factor: 0.9
• SDS Class: LED_Lamp
• Indoor Outdoor: Indoor and Outdoor
• Product Technology: LED
• CCT (Kelvin Temp): 3000K
• Dimmable: Non-Dimmable
• Hours Rated: 50000
• Beam Angle (degree): 320
• Color Temp: Soft White
• CRI: 80+
• Operating Frequency: 60Hz
• Operating Temp: -30C (-22F) to +65C (+149F)
• HID Equivalent: 170W
• Lumens: 6000L
• Volts: 120V-277V
• Watts: 40W
• Lamp Base: Mogul Extended
• Finish: WHITE
• Housing Color: White
• ANSI Base: EX39
• Lamp Type: ED28
• MOD Lamps: 3.54
• MOL: 8.4
• Rated For Enclosed Fixture: True
