Satco S11964 18 Watt T8 LED 4 Foot Recessed Double Contact Base Ballast Bypass Double Ended Wiring

Product Description

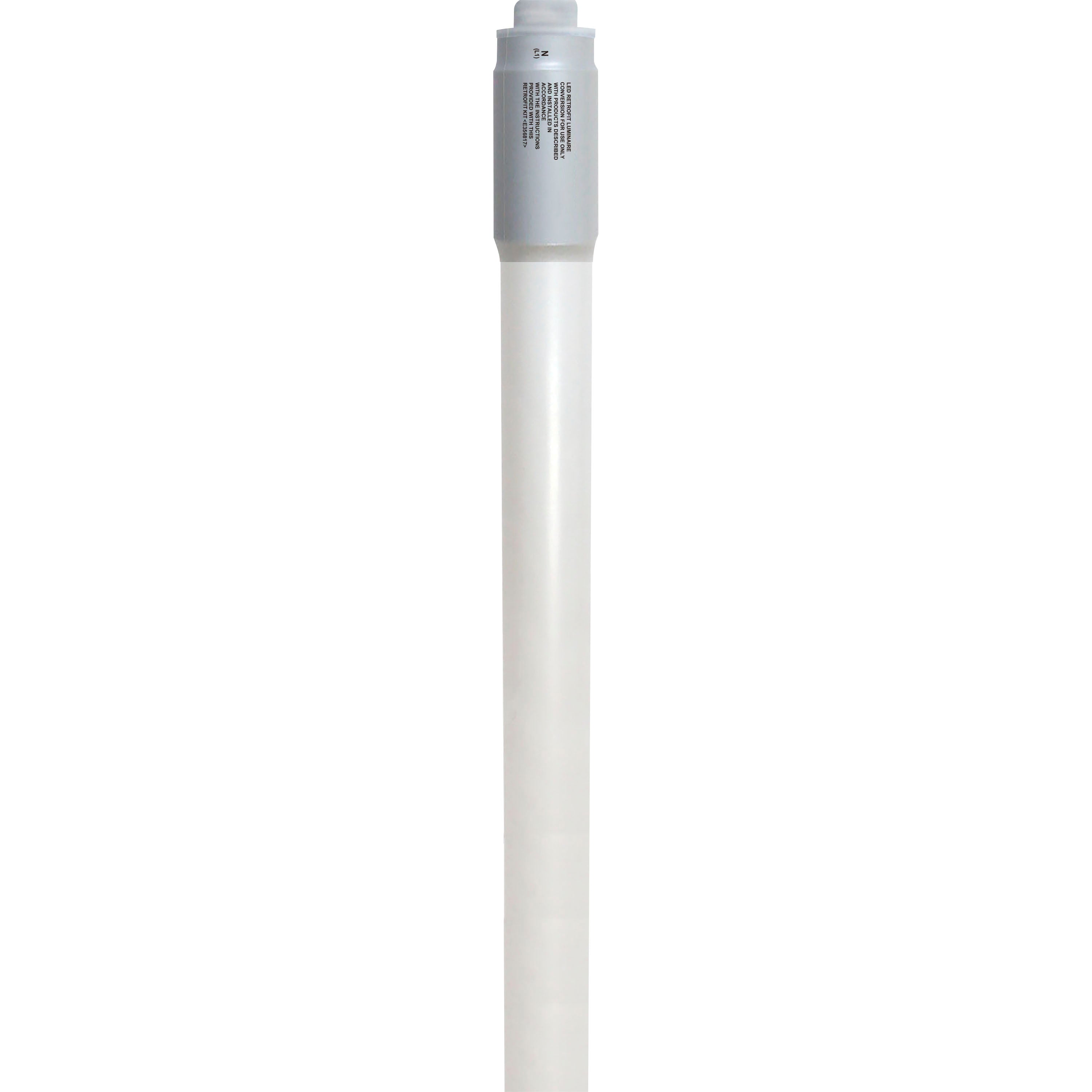

The SATCO S11964 is an 18 Watt T8 LED lamp, 4 feet in length, designed for efficient lighting applications. This Type B ballast bypass lamp features double-ended wiring and a Recessed Double Contact (R17d) base, providing 2500 lumens of 4000K cool white light. With an average rated life of 50,000 hours, it is suitable for both indoor and damp outdoor locations.

• 18 Watt T8 LED with 2500 lumens output.
• 4000K color temperature and 50,000 average rated hours.
• Type B Ballast Bypass with double-ended wiring and R17d base.

Product Highlights

This 4-foot, 18 Watt T8 LED lamp offers 2500 lumens of 4000K cool white light, featuring ballast bypass and double-ended wiring for versatile indoor and damp outdoor use.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S11964
• Country of Origin: China

Technical Specifications

• Type: Linear
• Input Voltage: 120-277V
• Wattage: 18W
• Amperage: 0.165A
• Material: Glass
• Dimmable: No
• IP Rating: IP20
• Beam Angle: 160 degrees
• Power Factor: 0.9
• Location Rating: Damp
• Indoor/Outdoor Use: Indoor, Outdoor
• Technology: LED
• Color Temperature: Cool White
• Average Rated Life: 50000 hours
• CCT: 4000K
• Operating Temperature: -20C to +45C (-4F to +113F)
• Finish: Frosted
• Lumens: 2500
• Shape: T8
• Rated For Enclosed Fixture: Yes
• FCC Compliant: Yes
• Fluorescent Equivalent: 63W
• Ballast Type: Ballast Bypass
• Surge Protection: 1.5KV
• CRI: 82
• Base Type: R17d HO/VHO Recessed Double Contact
• Lamp Type: Linear LED
• THD: 25%
• Tube Guard Use: Yes
• CCT Selectable: No
• Wattage Selectable: No
• Lens Finish: White

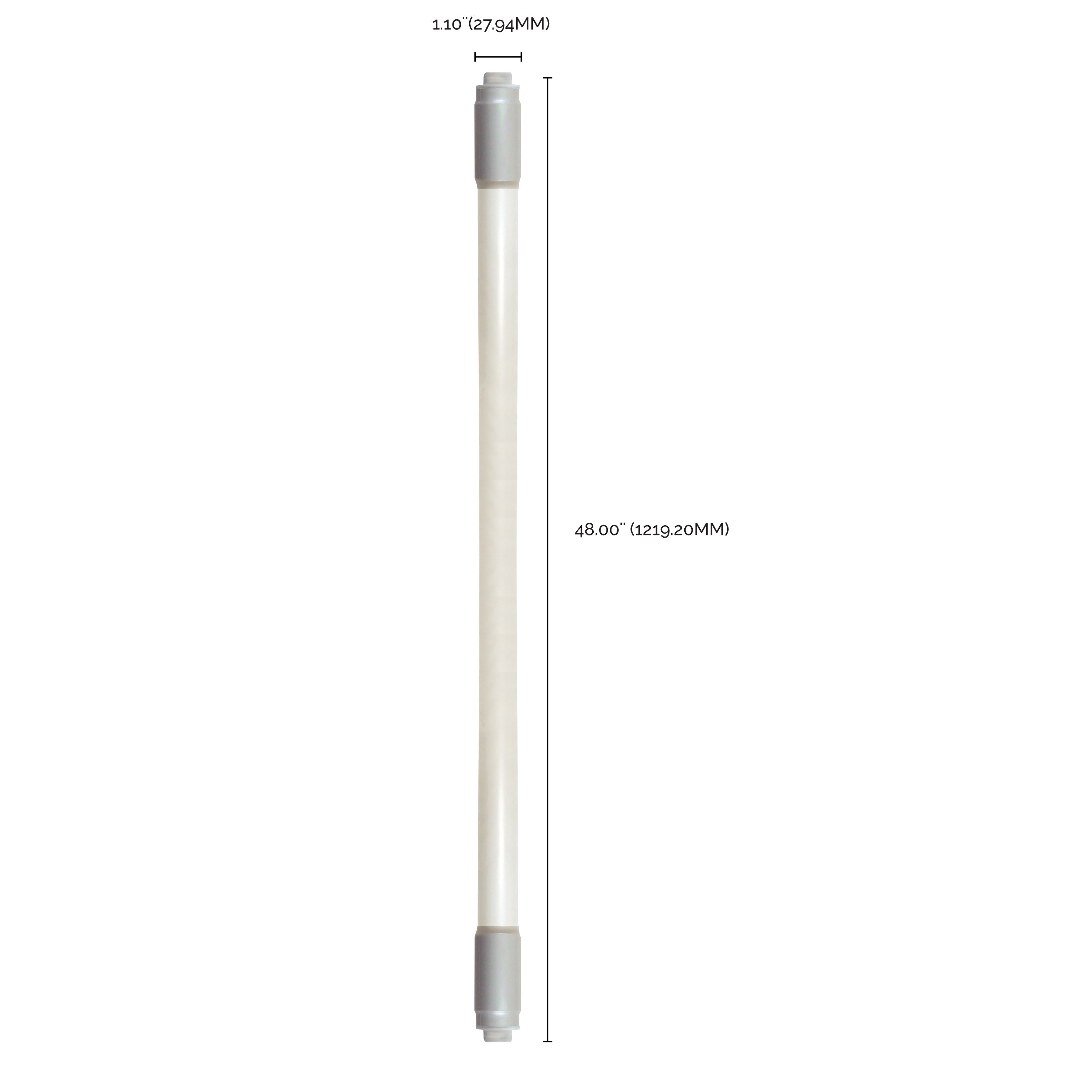

• Nominal Length: 48.0 inches
• Operating Position: Universal
• Shatter Proof Type: PET Coated
• Incandescent Equivalent: 90W
• Operating Frequency: 50/60Hz
• MOL: 46.0 inches
• NSF Approved: Yes
• ROHS Compliant: Yes
• Safety Listing: cRUus - Recognized Component, cULus - Certified, cULus - Classified
• Wiring: Double Ended
