Product Description

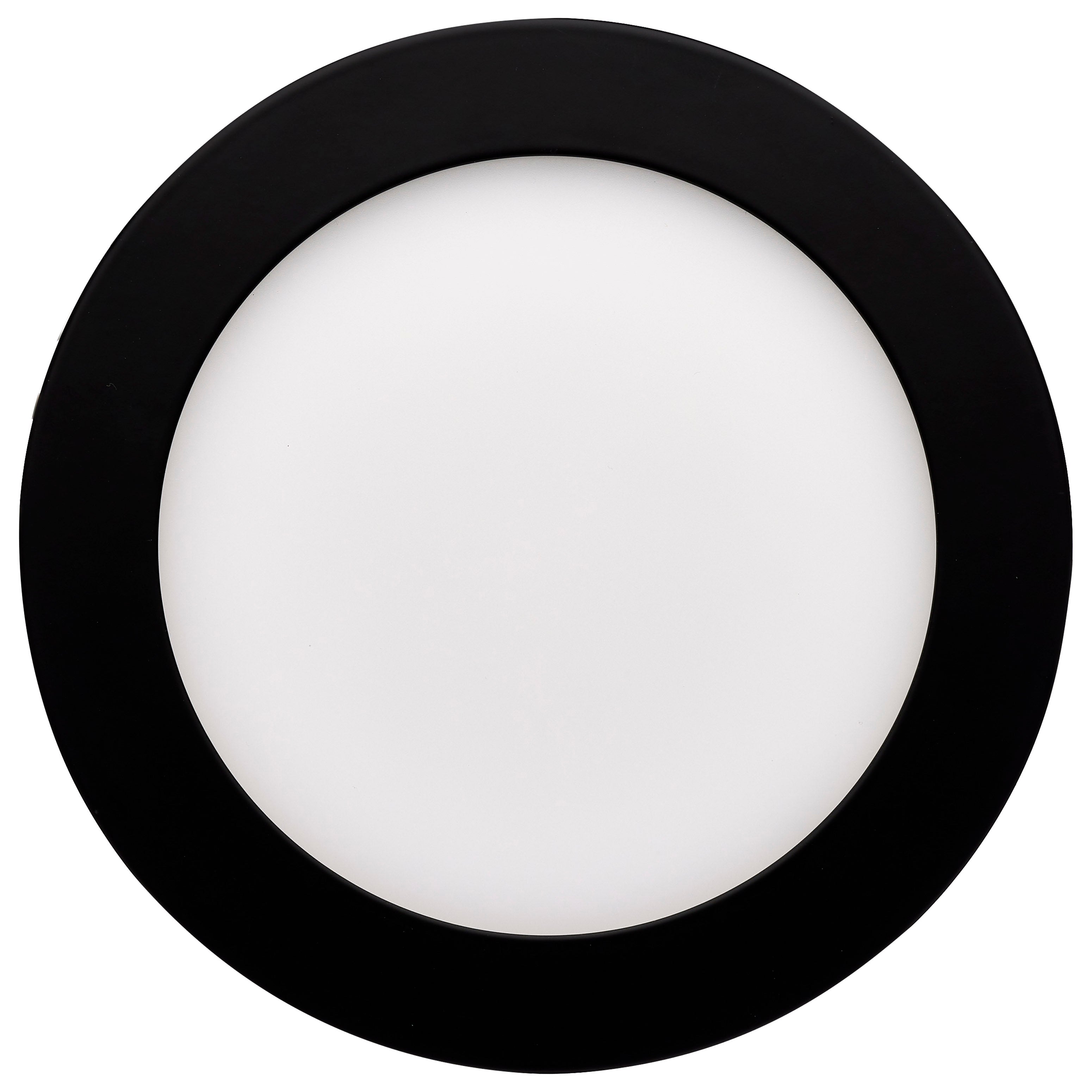

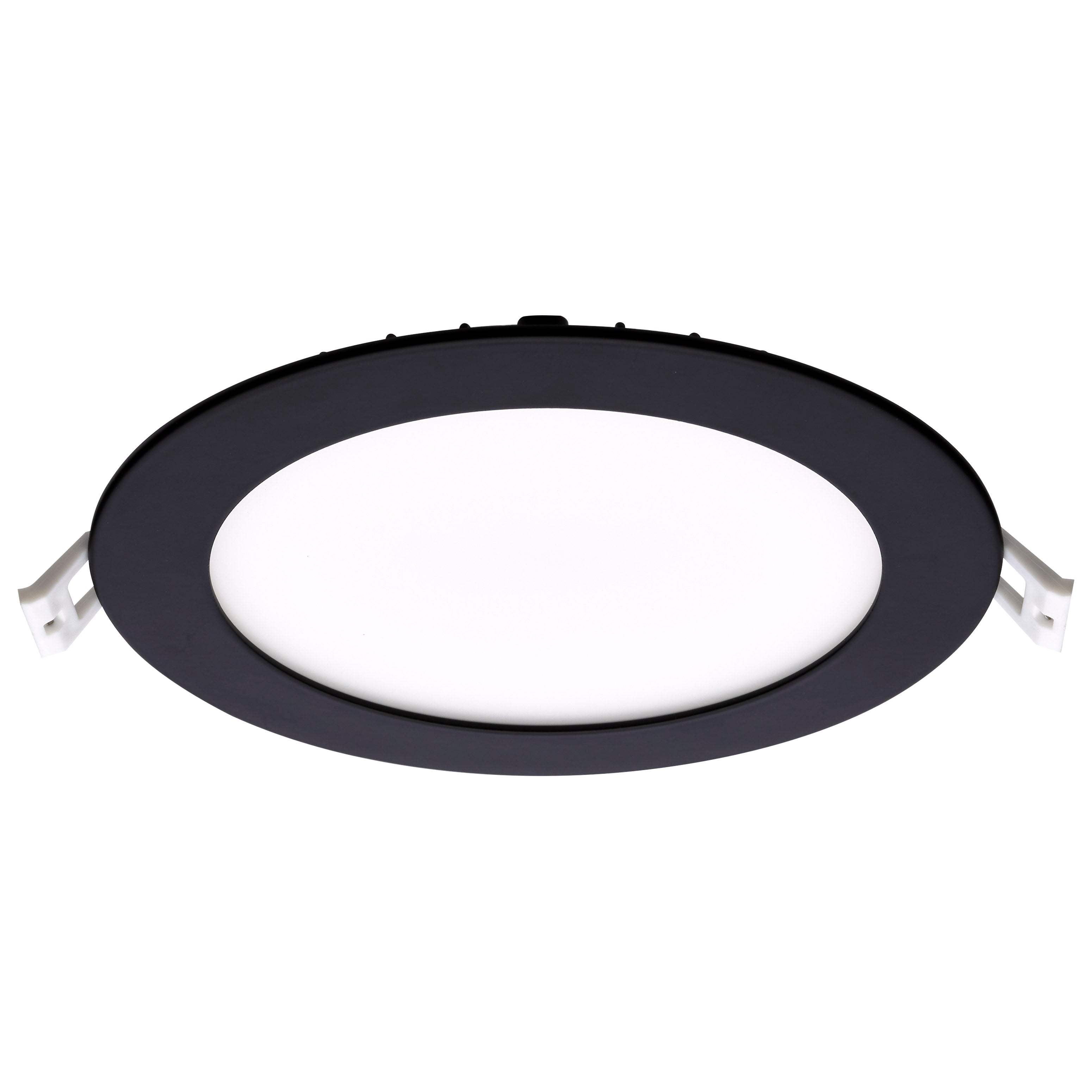

The SATCO S11875R1 is a 12 Watt LED Direct Wire Downlight designed for both indoor and outdoor applications. This 6-inch, round fixture features CCT selectable color temperatures (2700K/3000K/3500K/4000K/5000K) and a remote driver for versatile installation. It provides 1050 lumens of light, equivalent to a 75W incandescent, with a 110-degree beam angle. The downlight is dimmable and suitable for wet locations and clothes closets, offering built-in 2.5KV surge protection.
- 6-Inch, CCT Selectable, Round fixture with Remote Driver
- Dimmable, 50000 Hours Rated, 90+ CRI, and 110-degree beam angle
- Wet Location Rated, IC Rated, Energy Star Certified, and T24/JA8 Compliant
Product Highlights
This SATCO S11875R1 downlight offers CCT selectable lighting, dimmability, and is suitable for wet locations, making it versatile for various indoor and outdoor settings.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11875R1
-
Country of Origin: Vietnam
Technical Specifications
-
Brand: SATCO
-
MPN: S11875R1
-
Product Type: Direct Wire LED Downlight
-
Category: Recessed
-
Collection: ColorQuick
-
Technology: LED
-
Lamp Type: Integrated LED
-
Bulb Included: Integrated LED
-
Lamp Base: Integrated
-
Wattage: 12W
-
Incandescent Equivalent: 75W
-
Lumens: 1050
-
Lumens Per Watt: 87.50 LPW
-
Voltage: 120V
-
Electrical Amperage: 0.120A
-
Operating Frequency: 60Hz
-
Power Factor: >0.9
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Light Color: Warm White to Natural Light
-
Color Rendering Index: 90+
-
Dimmable: Yes
-
Dimming Type: Linear Dimming, Phase cut
-
Dimmable Function: Line Voltage; 120V Only
-
Dimmer Range: 100 to 10 percent
-
Average Rated Hours: 50000
-
Beam Angle: 110
-
Light Direction: Downwards
-
Shape: Round
-

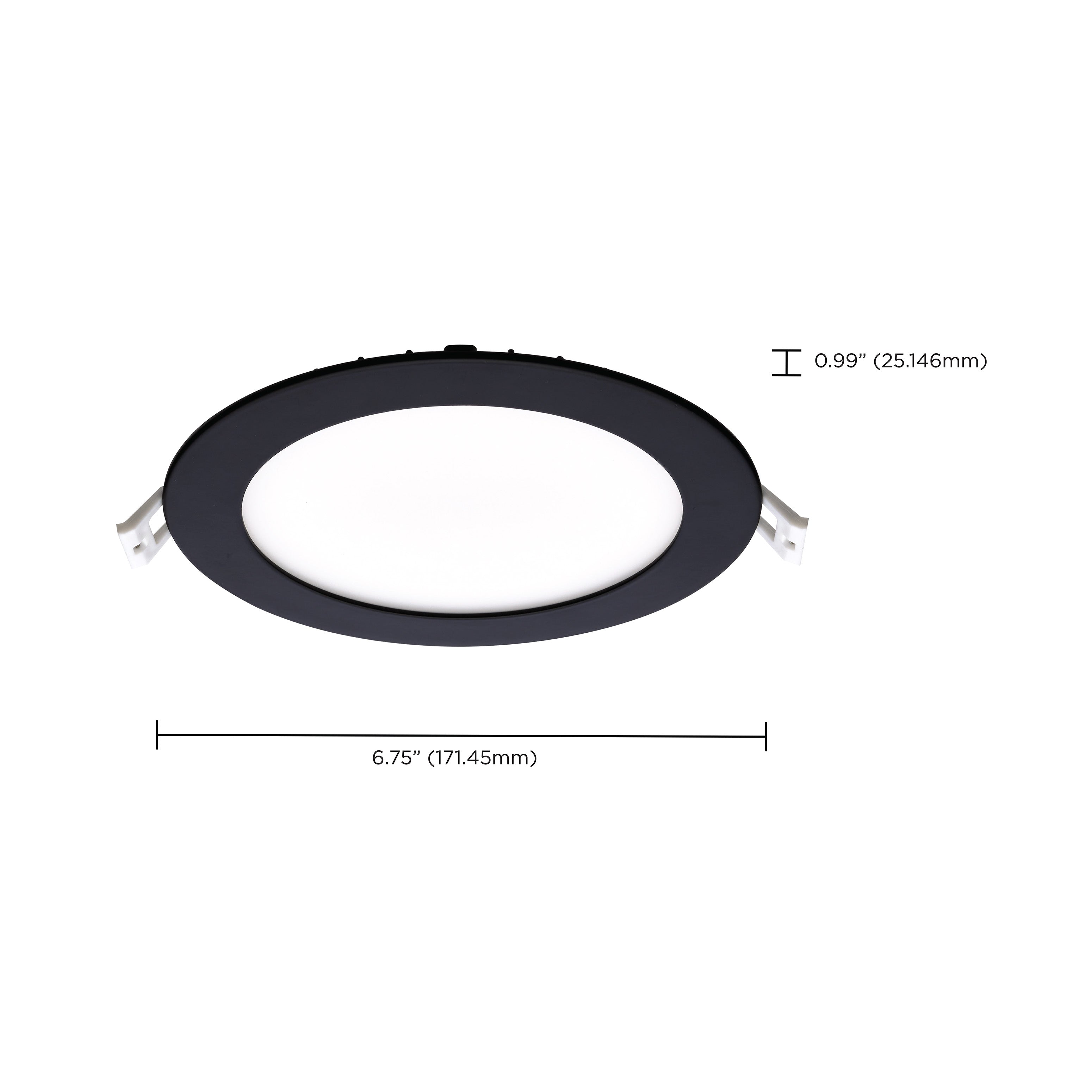

Diameter: 6.75
-
Height: 0.99
-
Width: 6.75
-
Material: Aluminum
-
Finish: Black
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Operating Temperature: -20C to +45C
-
Indoor Outdoor: Indoor and Outdoor
-
Location Rating: Wet
-
Air Tight: Yes
-
IC Rated: Yes
-
Sloped Ceiling Compatible: Yes
-
Closet Rated: Yes
-
Connection: Hardwire
-
Surge Protection: Built-in surge protection - 2.5KV
-
Safety Listing: cETLus Listed
-
FCC Compliant: Yes
-
RoHS Compliant: Yes
-
Energy Star: Yes
-
T24 Compliant: Yes
-
CA Regulations: California T24 2016 - 2025 JA8 Listed
-
Title 20: Exempt
-
Wattage Selectable: No
-

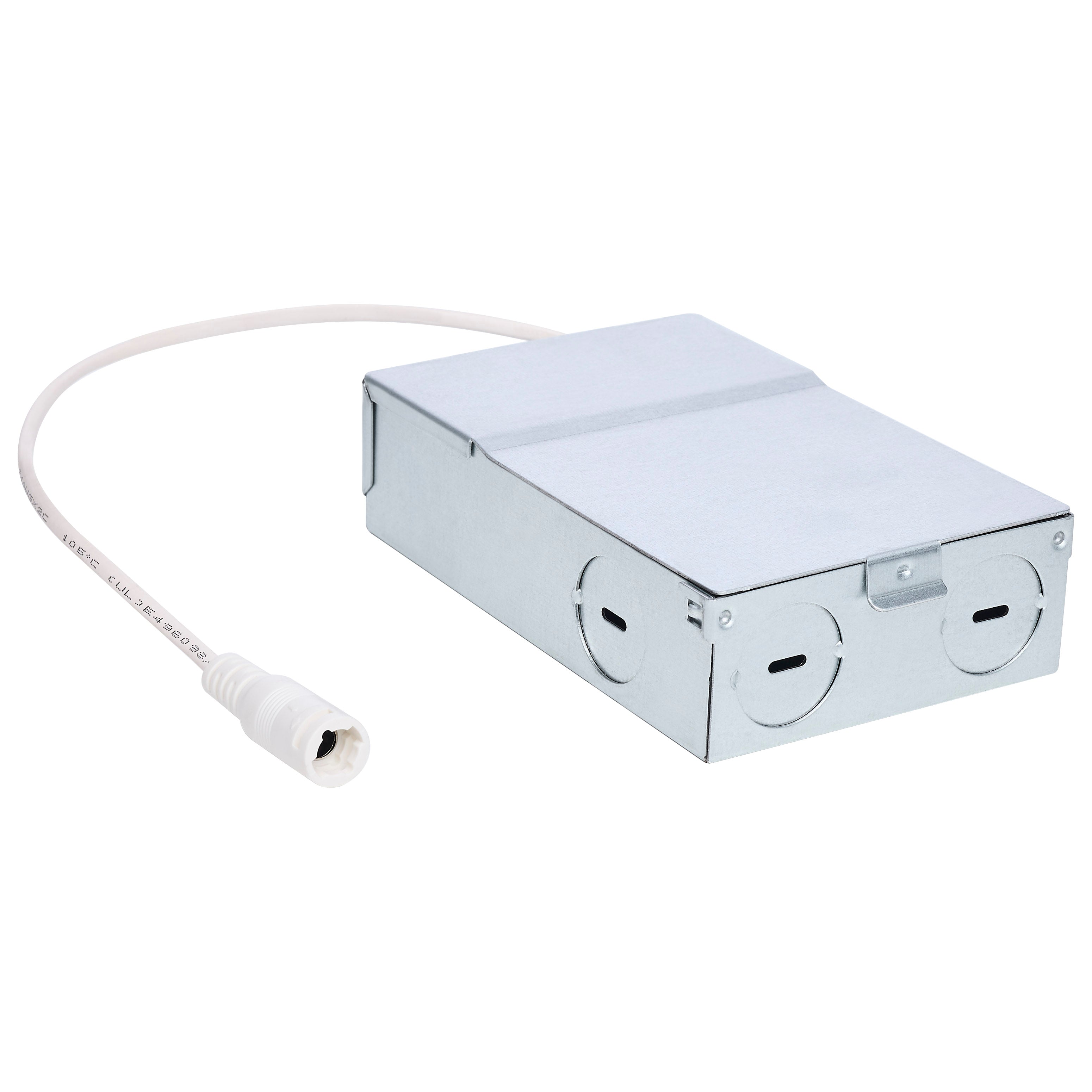

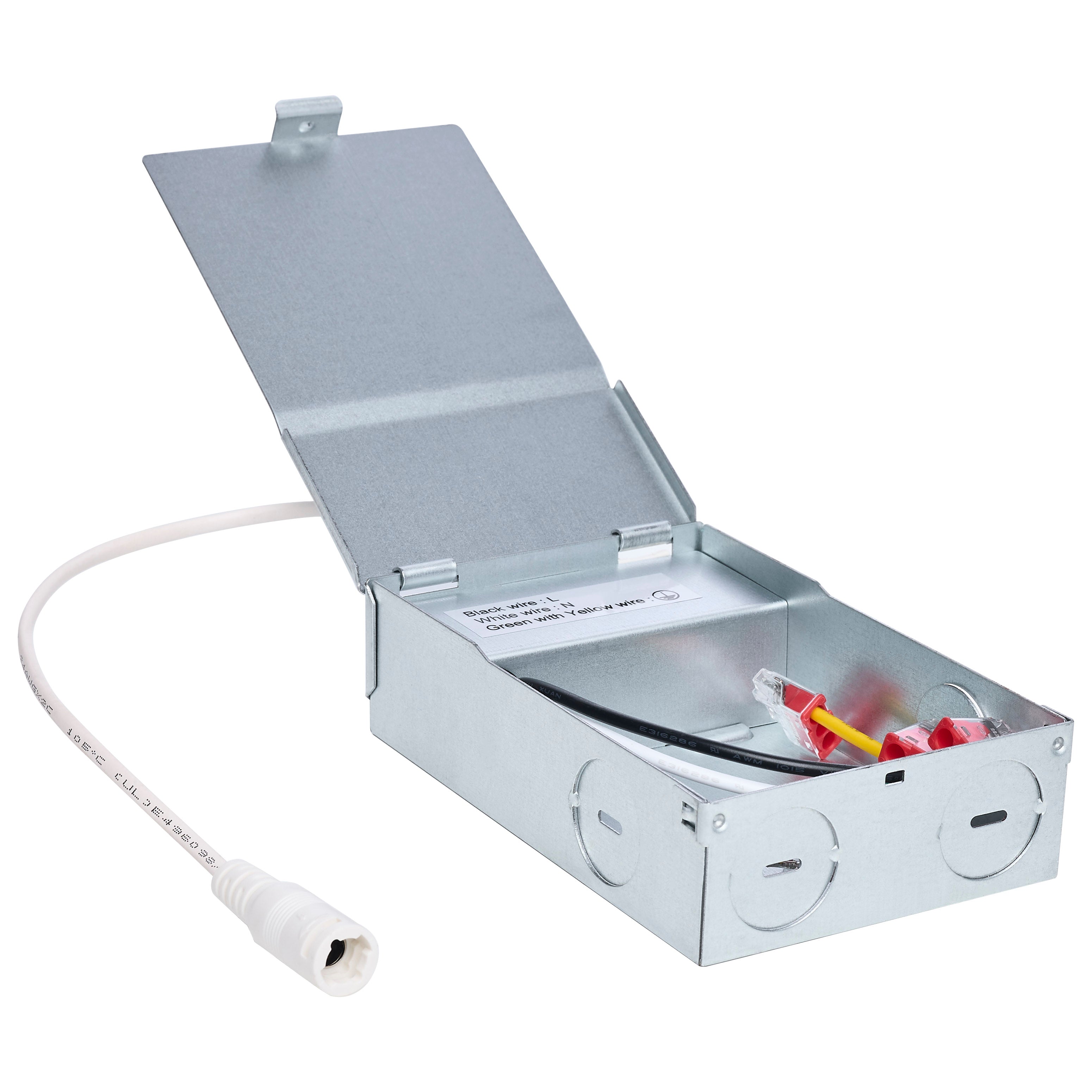

Has Driver: Yes
-
Replaceable Light Source: No
-
ES Category: Downlight Recessed
-
Residential Use: Yes
-
Commercial Usage: Yes
