Product Description

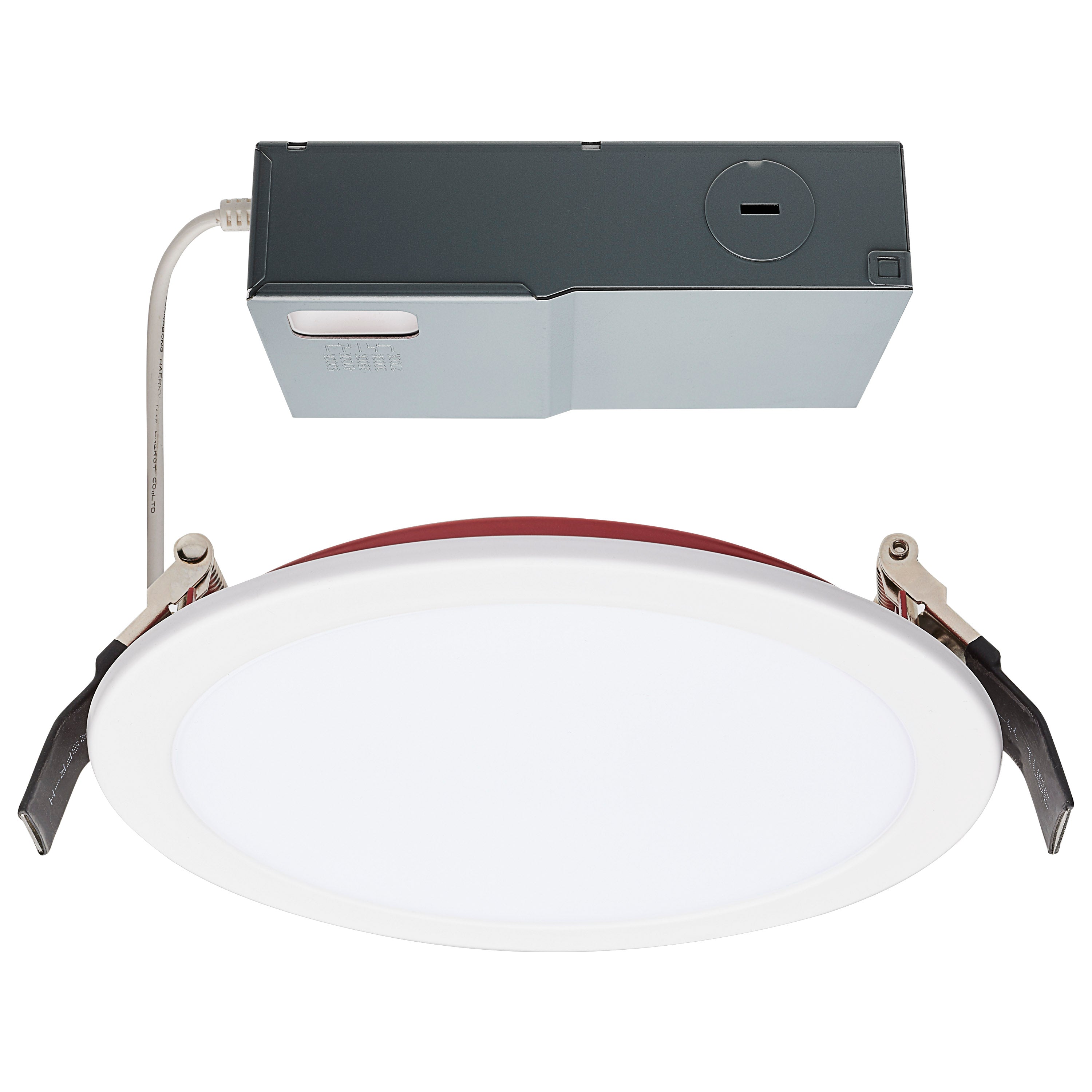

The SATCO S11866 is a 13 Watt LED Fire Rated 6 Inch Direct Wire Downlight. This round, CCT selectable fixture operates at 120 Volts and is dimmable, offering versatile lighting solutions. It is designed for indoor use, providing 1050 lumens with a 90+ CRI, ensuring high-quality illumination. The downlight is 2HR fire rated, tested to comply with UL 263/ASTM E119/CAN-ULC S101-07, and has a 50,000-hour rated life.
- CCT Selectable for adjustable color temperature
- Dimmable for customized light levels
- 2HR Fire Rated for enhanced safety
Product Highlights
Energy Star Certified, IC Rated, and Wet Location Rated for broad application.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11866
-
Country of Origin: Cambodia
Technical Specifications
-
Bulb Type: Integrated LED
-
Overall Diameter: 6.81 inches
-
Material: Aluminum / Steel
-
Fixture Type: Remote Driver LED Downlight
-

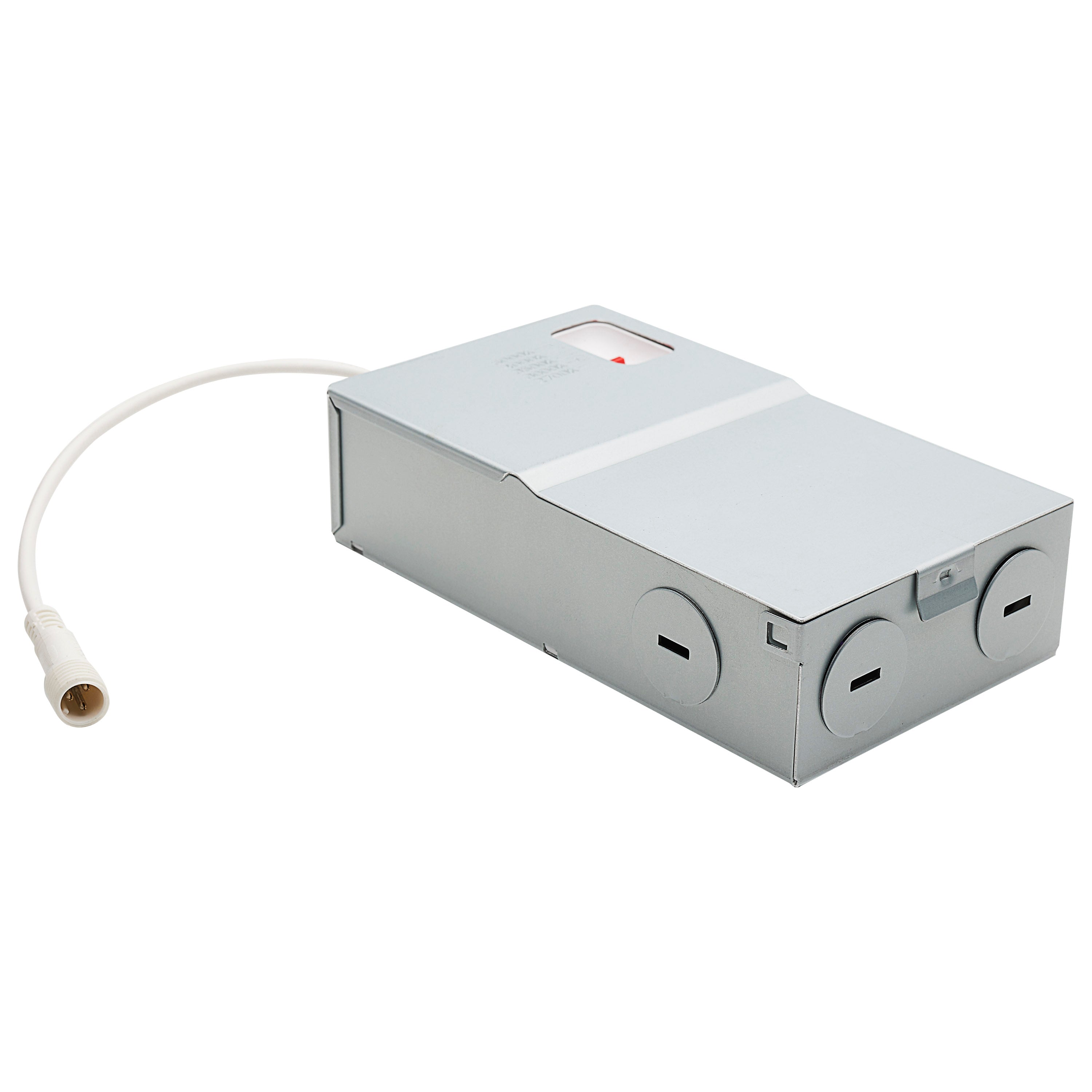

Driver Dimensions: 4.50 x 3.00 x 1.25 inches
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Fire Rating: 2HR (UL 263/ASTM E119/CAN-ULC S101-07)
-
Current: 0.108A
-
Lens Finish: Frost
-
Lens Material: Polycarbonate (PC)
-
Power Factor: >0.9
-
Sloped Ceiling Compatible: No
-
Location Rating: Indoor
-
Technology: LED
-
Lamp Count: 1
-
Incandescent Equivalent: 75W
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 hours
-
Beam Angle: 110 degrees
-
CRI: 90+
-
Dimming Type: 120V Phase Cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -4F to +104F (-20C to +40C)
-
Lumens: 1050
-
Input Voltage: 120V
-
Wattage: 13W
-
Fixture Shape: Round
-
Recessed Diameter: 6 inches
-
Product Category: Recessed - Direct Wire
-
Downlight Type: Fire Rated
-
Height: 0.69 inches
-
cULus Certified: Yes
-
Wet Location Rated: Yes
-
Connection Type: Direct Wired
-
Mounting Type: Surface Mount/Canless
-
IC Rated: Yes
-
Energy Star Certified: Yes
-
FCC Compliant: Yes
-
ROHS Compliant: Yes
-
California T24/JA8 Compliant: Yes
