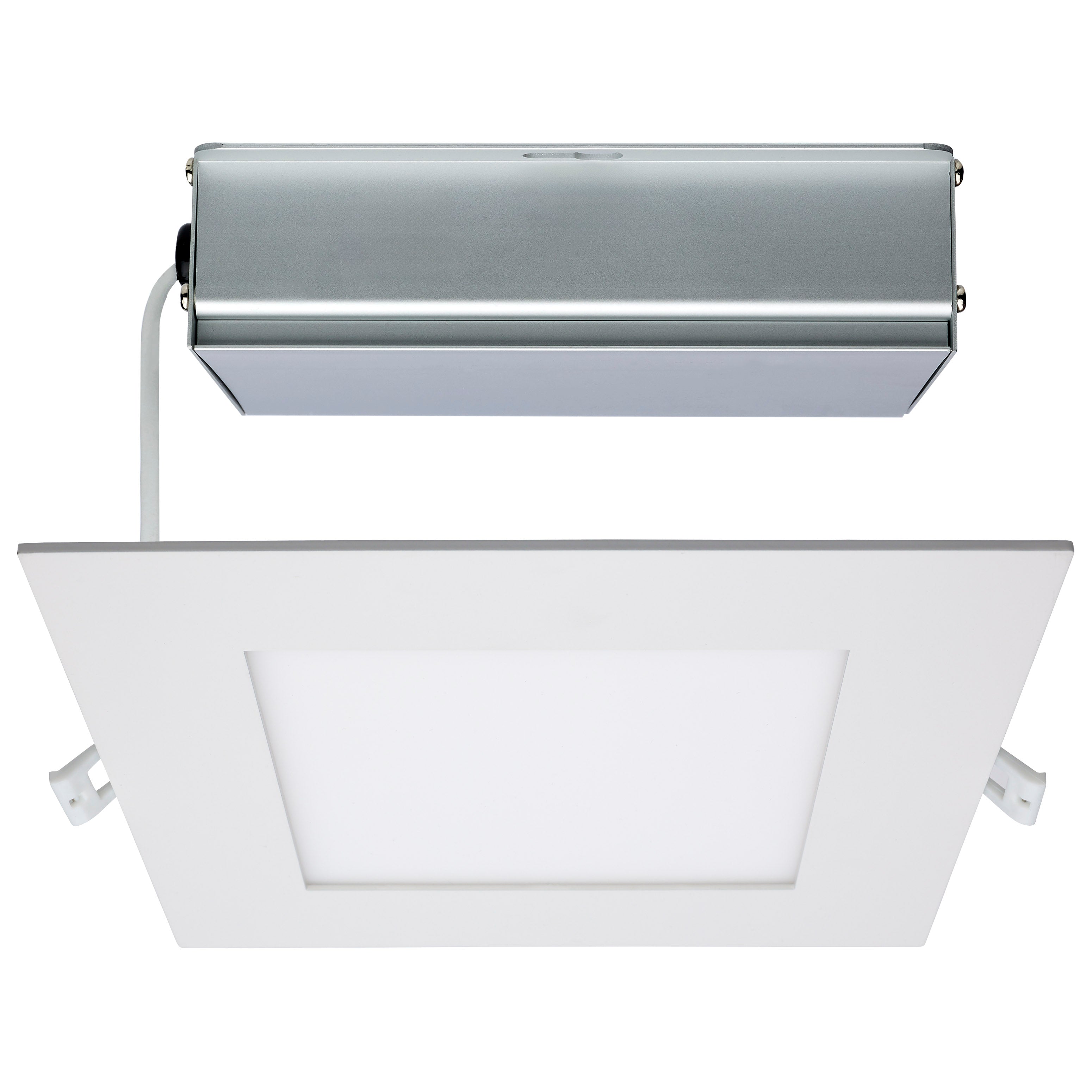

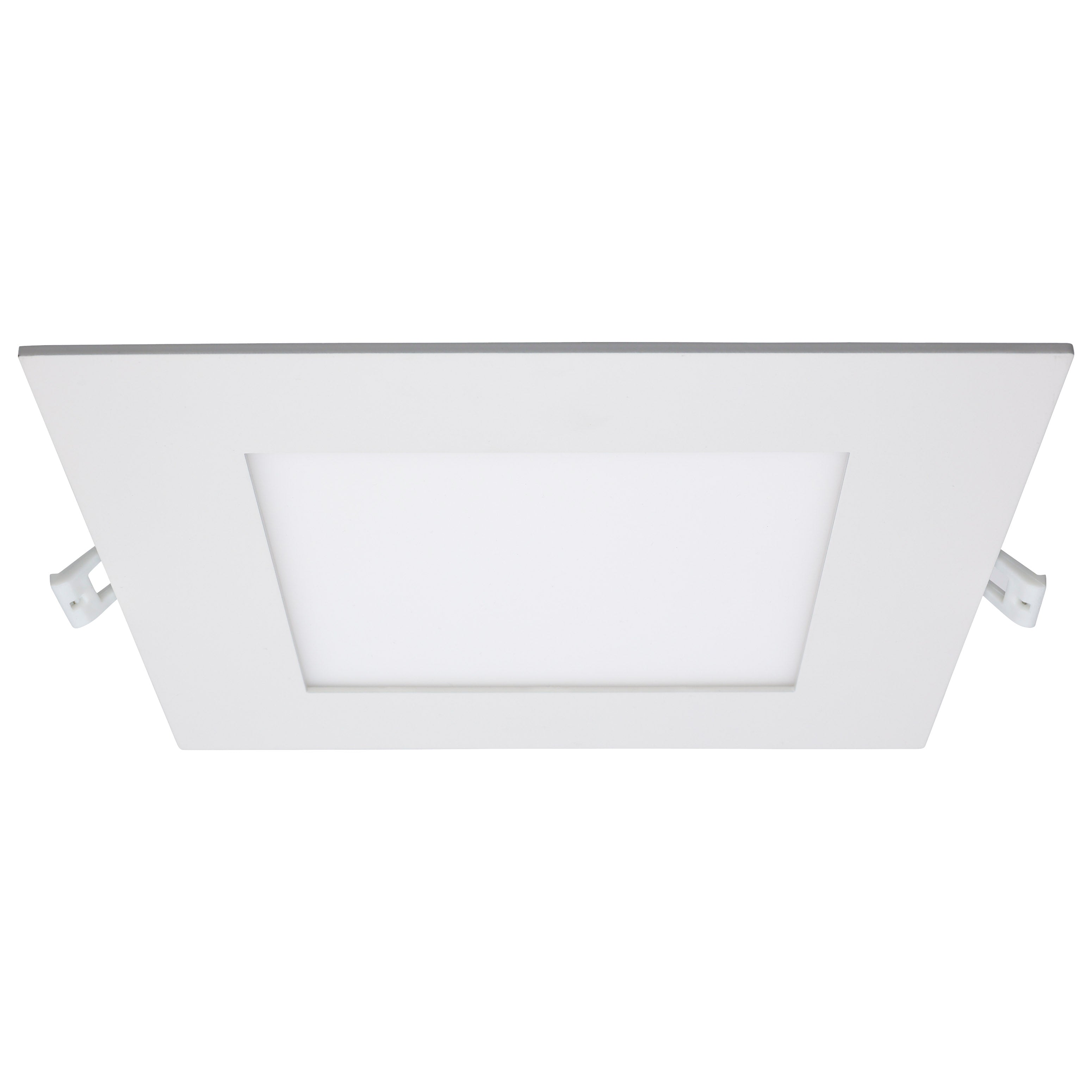

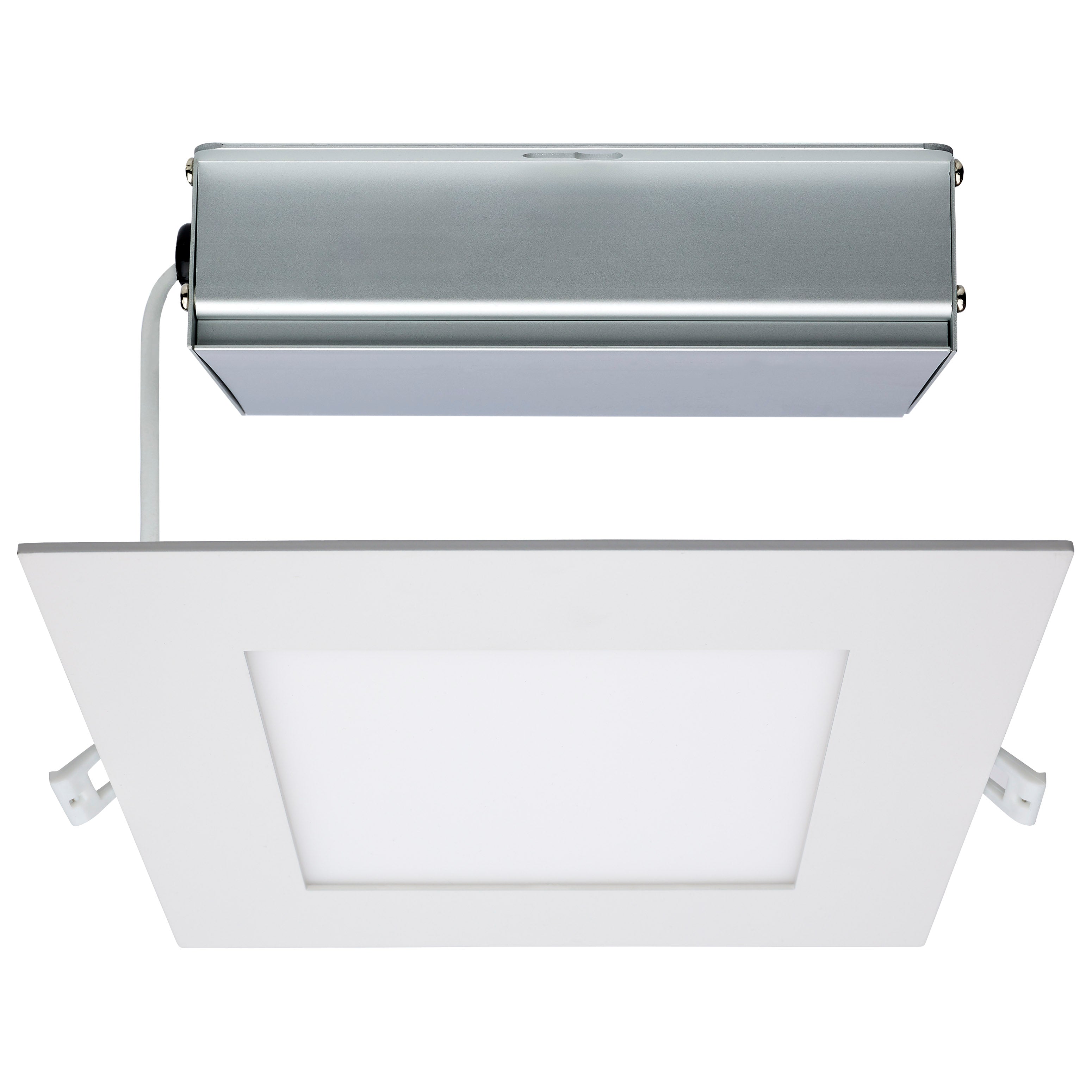

Satco S11831 led direct wire downlight edge-lit 24 watt 8 inch cct selectable 120 volt dimmable square remote driver

Product Description

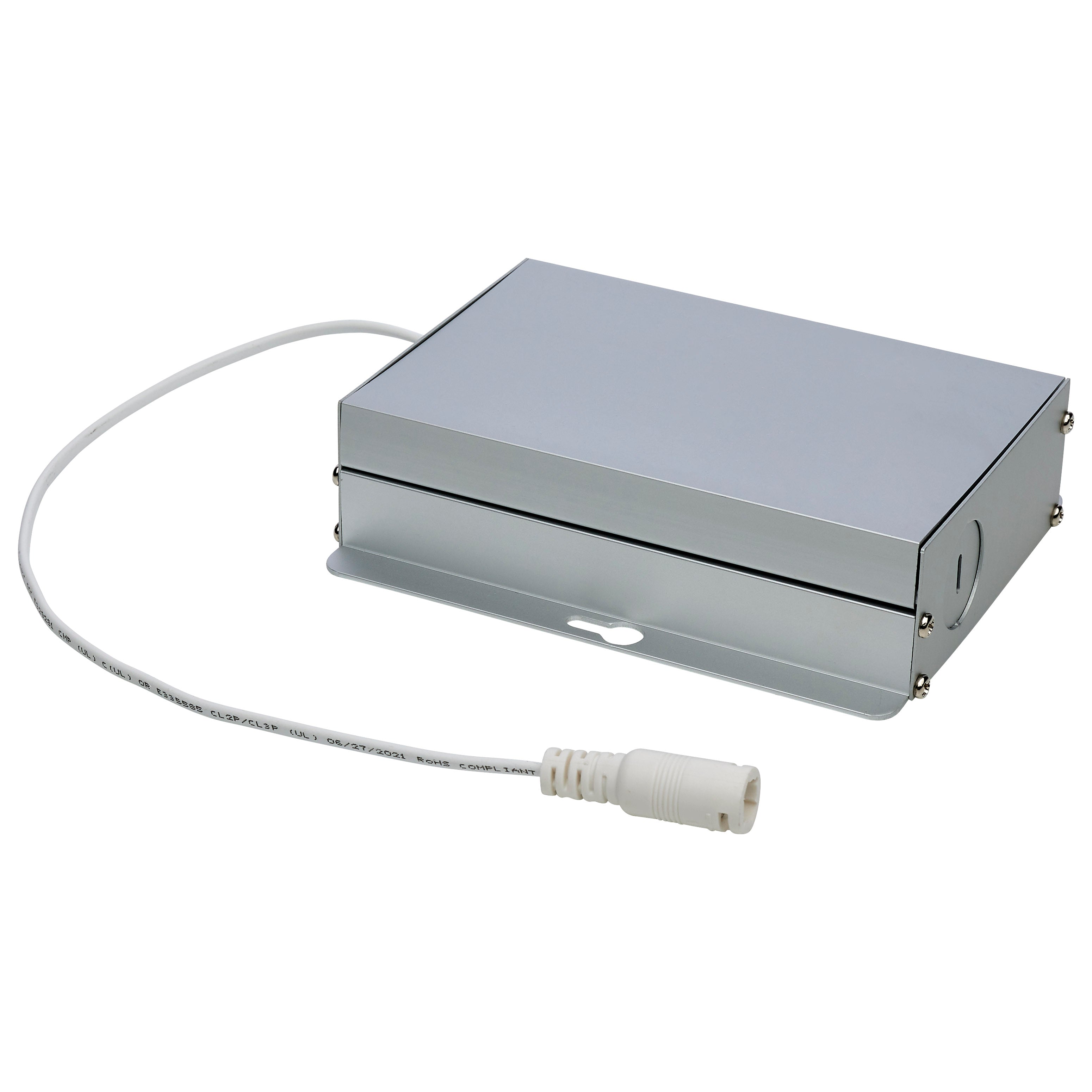

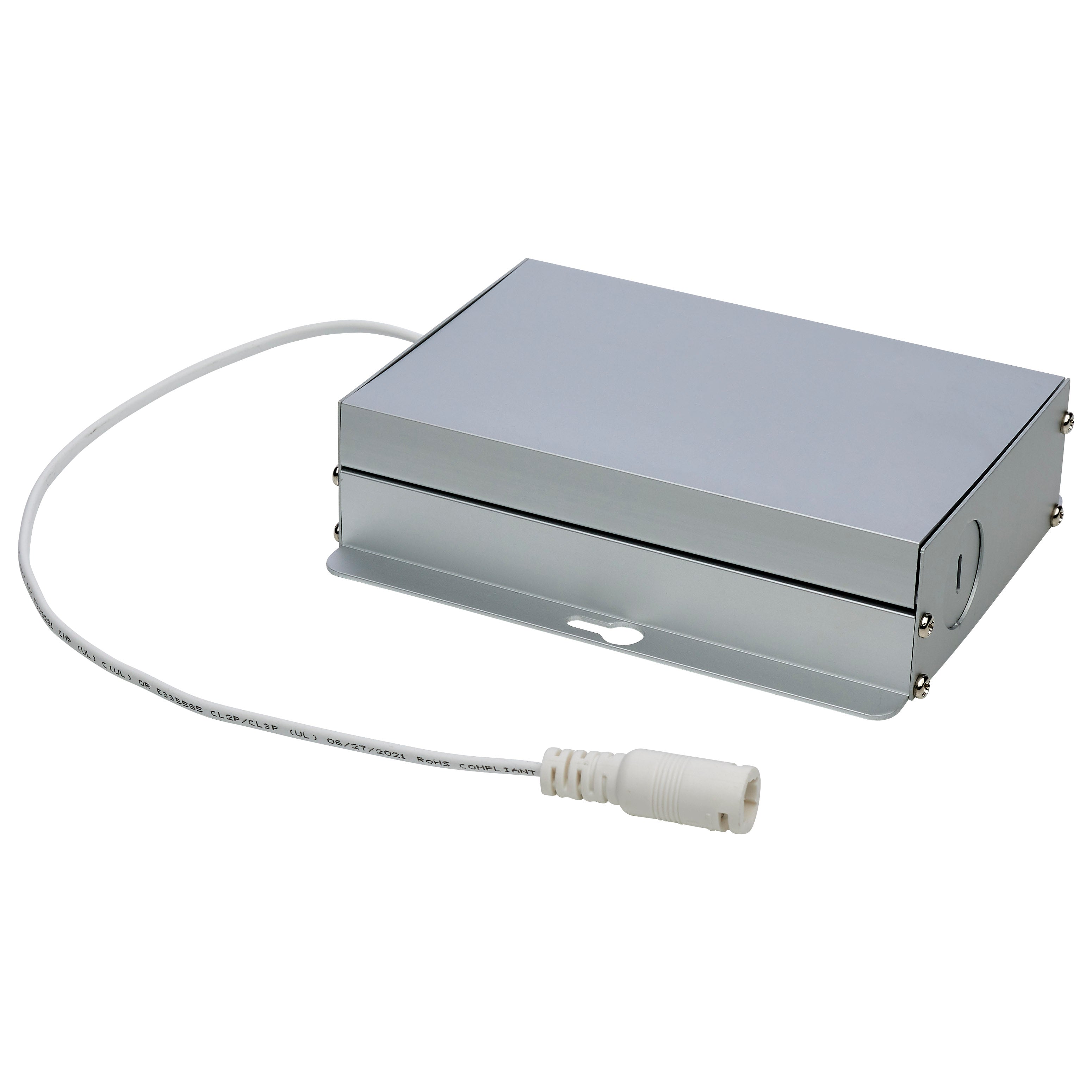

The Satco S11831 is a 24 Watt LED Direct Wire Downlight designed for recessed lighting applications. This edge-lit, 8-inch square fixture features CCT selectable color temperatures and operates on 120 Volts. It is dimmable and includes a remote driver for flexible installation. Constructed from aluminum with a poly methyl methacrylate lens, it delivers 1,650 lumens with a 108-degree beam spread. It is suitable for indoor wet locations and has an IP20 rating.

• CCT Selectable and Dimmable (120 Volt) functionality.

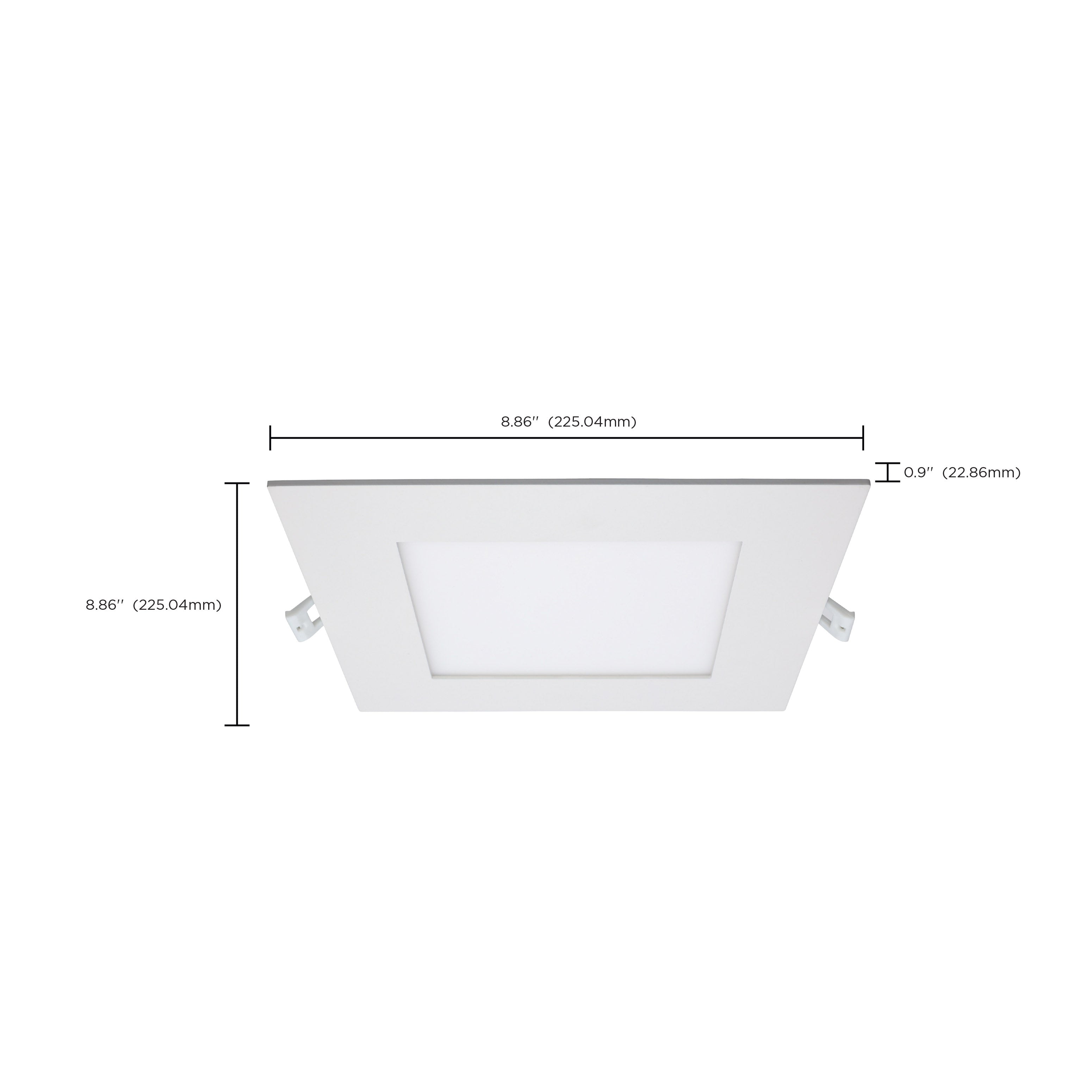

• Edge-lit 8-inch square design with 108-degree beam angle, delivering 1,650 lumens.
• Durable aluminum construction, IP20 rated, suitable for wet locations, with a 50,000-hour average rated life.

Product Highlights

This 24W LED downlight offers CCT selectable lighting, dimmable functionality, and a square edge-lit design for versatile indoor applications.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S11831
• Country of Origin: China

Technical Specifications

• Brand: Satco
• Fixture Type: Direct Wire LED Downlight
• Style: Utility
• Lumens: 1650
• Input Voltage: 120V
• Wattage: 24W
• Material: Aluminum
• Dimmable: Yes
• IP Rating: IP20
• Beam Angle: 108 degrees
• Lens Color: Frost
• Shape: Square
• Power Factor: 0.9
• Location Rating: Wet
• Lens Material: Poly Methyl Methacrylate
• Indoor/Outdoor Use: Indoor
• Technology: LED
• Color Temperature: Cool White, Warm White
• Rated Life: 50000 hours
• Correlated Color Temperature: 2700K
• Operating Temperature: -20C
• Incandescent Equivalent: 85W
• Application: Recessed Lighting
• Mounting Type: Ceiling
• Certifications: cETLus, Energy Star Certified, FCC Compliant, ROHS Compliant, California T24 Listed, T24/JA8 Compliant
• Total Harmonic Distortion: <20%

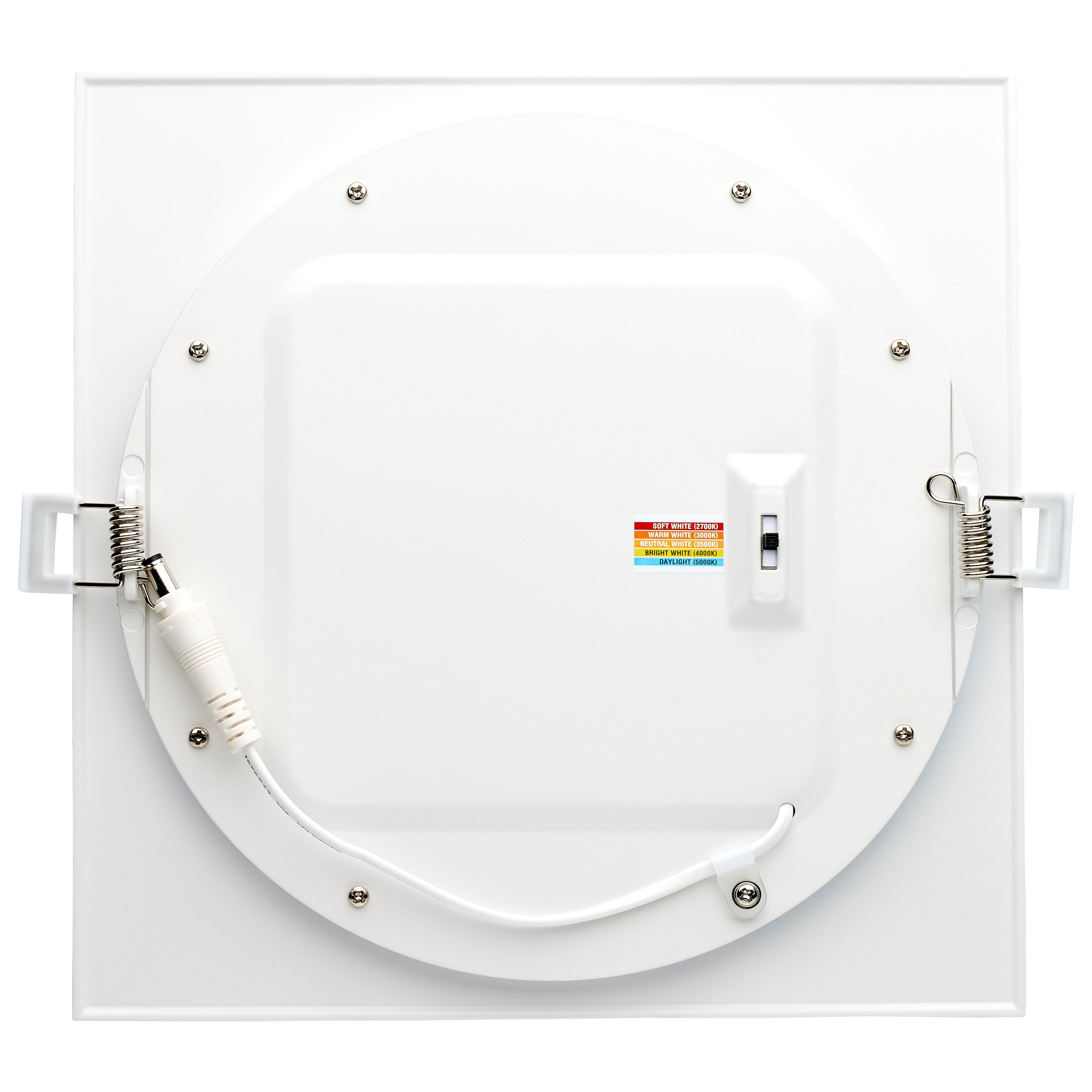

• CCT Selectable: Yes
• Wattage Selectable: No
• Can Size: 8 inch
• Current: 0.200A
• Sloped Ceiling Compatible: No
• CRI: 90+
• Dimming Type: 120V only, Phase cut
• Operating Frequency: 60Hz
• Air Tight: Yes
• IC Rated: Yes
• Size: 8 inch
• Installation Type: Flush Mount
