Satco S11801R1 Whit 9W Led Dwnlght Retrofit

Product Description

The SATCO S11801R1 LED downlight retrofit is designed to convert traditional recessed lighting to LED. This 9W downlight is suitable for 5-6 inch round fixtures and includes an E26 base adapter for easy installation. It features a selectable color temperature, dimming capabilities, and delivers exceptional color rendering for various environments.

• 9 Watt LED Downlight Retrofit
• 5-6 Inches, CCT Selectable
• Dimmable, Wet Location Rated, 90+ CRI

Product Highlights

This 9W LED downlight retrofit is CCT selectable, dimmable and has a 50,000 hours rated life and a 5-year warranty.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S11801R1
• Country of Origin: China

Technical Specifications

• Model#: S11801R1
• Manufacturer Name: Satco
• SKU: SS11801R1
• Company: SATCO
• Bulb Included: Integrated
• Diameter: 7.4
• Dimmable Text: Forward or Reverse Phase; 120V only
• Material: Steel
• Fixture Type: Round

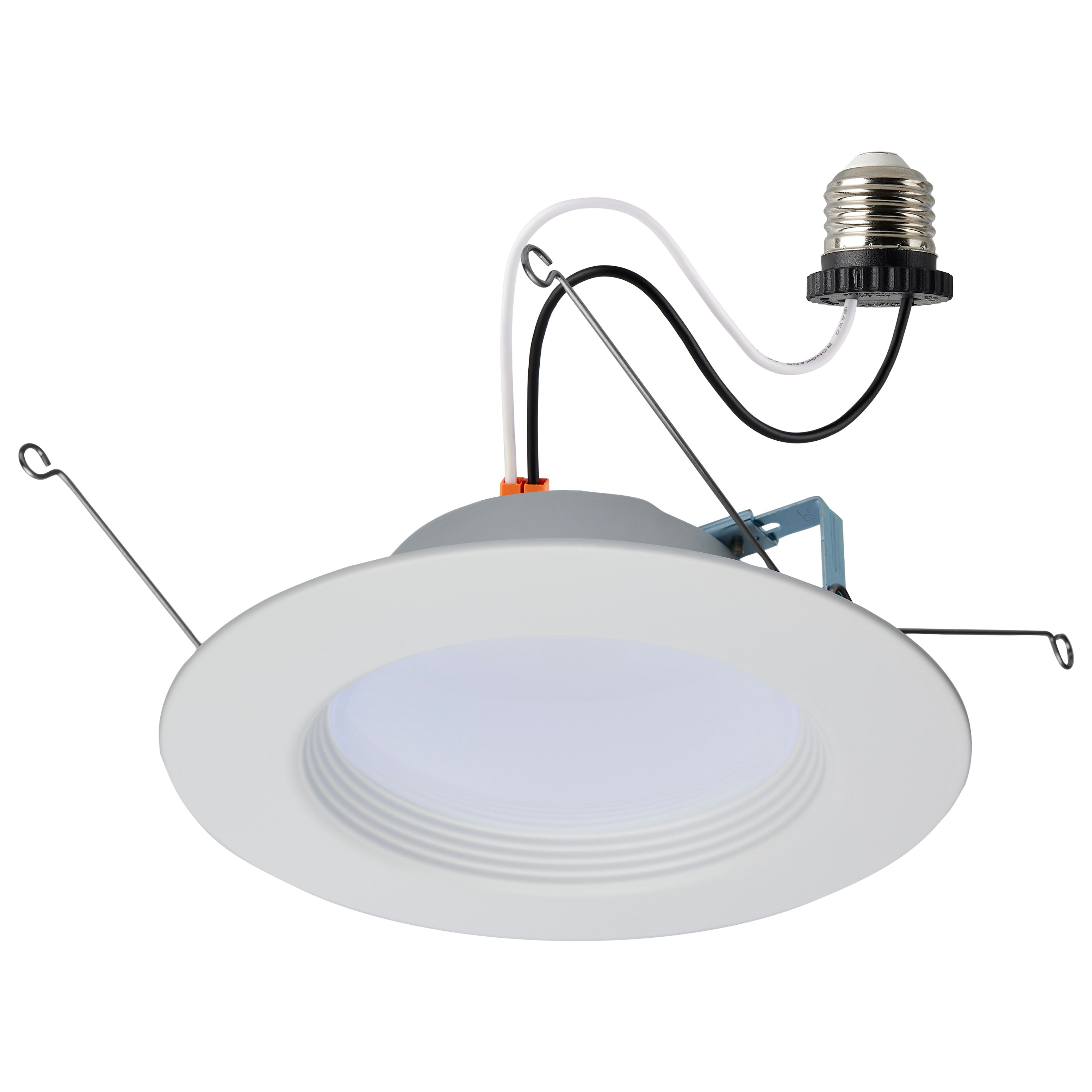

• Includes: E26 Adapter included (S9001)
• Status: Active
• Style: Utility
• Surge Protection: Built-in surge protection - 2.5KV
• CCT Selectable: Yes
• Wattage Selectable: No
• Can Size: 5-6 in.
• Finish Family: White
• Amps: 0.075A
• Has Camera: No
• IOT Enabled: No
• Lens Finish: Frost
• Lens Material: Polycarbonate (PC)
• Power Factor: 0.9
• SDS Class: LED_Fixture
• Indoor Outdoor: Indoor
• Product Technology: LED
• Incandescent Equivalent: 65W
• Color Temperature: 2700K/3000K/3500K/4000K/5000K
• Dimmable: Yes-Dimmable
• Hours Rated: 50000
• Beam Angle (degree): 90
• CRI: 90+
• Dimming Type: 120V only, Phase cut
• Operating Frequency: 60Hz
• Operating Temp: -20C (-4F) to +40C (+104F)
• Lumens: 800 Lumens
• Volts: 120v
• Watts: 9W
• Lamp Base: Medium Adapter
• Finish: WHITE
• ANSI Base: E26 Adapter
• Lamp Type: Integrated LED
• Fixture Shape: Round
• Brand Category: Retrofit
• Brand Product Description: 9 Watt Led Downlight Retrofit - 5-6 Inches - Cct Selectable - Round - White Finish - 120 Volt
• UPC: 045923947766
• Color Rendering Index: 90
• Lamping Category: LED
• Lamping Features: Bulb Angle: 90 Bulb Color Temp: Warm White to Natural Light Bulb Spread: 90 Electrical Amperage: 0.075A
• Socket: Integrated
• Wattage Max: 9.00
• Height: 2.32
• Weight: 0.63
• Width: 7.4
• Country of Origin: China
• Energy Star: Yes
• Install Position: Downlight
• Prop 65: Yes
• Title 20: Yes
• Title 24: Yes
• UL Ratings: cETLus Wet
• Features: 5 CCT Selectable White Trim 90-Degree Beam Angle E26 Adapter Included 90 CRI Wet Location Rated 50,000 Hour Life Dimmable Down to 10 Suitable for Bathroom Applications ENERGY STAR Certified
• Prop 65 Chemicals: Lead
• Hardwired Fixture: Y
• Glass Features: Polycarbonate (PC) Frost
• Product Category: Recessed - Retrofits
• Brand: Satco | Nuvo
• Manufacturer Part Number: S11801R1
• Input Voltage: 120V
• Downlight Diameter: 5", 6"
• Downlight Type: Standard Residential
• Rated Hours: 50,000 Hours
• Special Features: CCT Selectable, Energy Star Rated, Wet Location Rated
• Light Output (Lumens): 800 lumens
• Lifespan: 50, 000 hours
• Amperage: 0.075 Amp
• Applications: Recessed Lighting
• Average Rated Life: 50000 hr
• Beam Spread: 90
• Correlated Color Temp: 2700 K
• Dimmable?: Yes
• Technology Type: LED
• Type: Downlight Retrofit
• Wet Location: Wet
• 12-Digit UPC: 045923947766
• GTiN: 00045923947766
• Product UPC: 04592394776
• Input Volts: 120V
• Lumens/Watt: 89
• Certifications: cETLus, EnergyStar, FCC, Title20, Title24, Wet Location, RoHS
• Life (hrs): 50,000 Hours
• Diameter (in): 7.41"
• Length (in.): 3.25"
