Product Description
The SATCO S11757 40T8/LED/96-CCT/BP/R2PC/1PK is a 24/32/40 Wattage Selectable, 8 Foot LED with Fa8 Base and 120-277 Volt. This 2-piece lamp features field-adjustable power settings and delivers up to 5500 lumens. It is a suitable replacement for traditional fluorescent lamps in commercial and industrial applications.

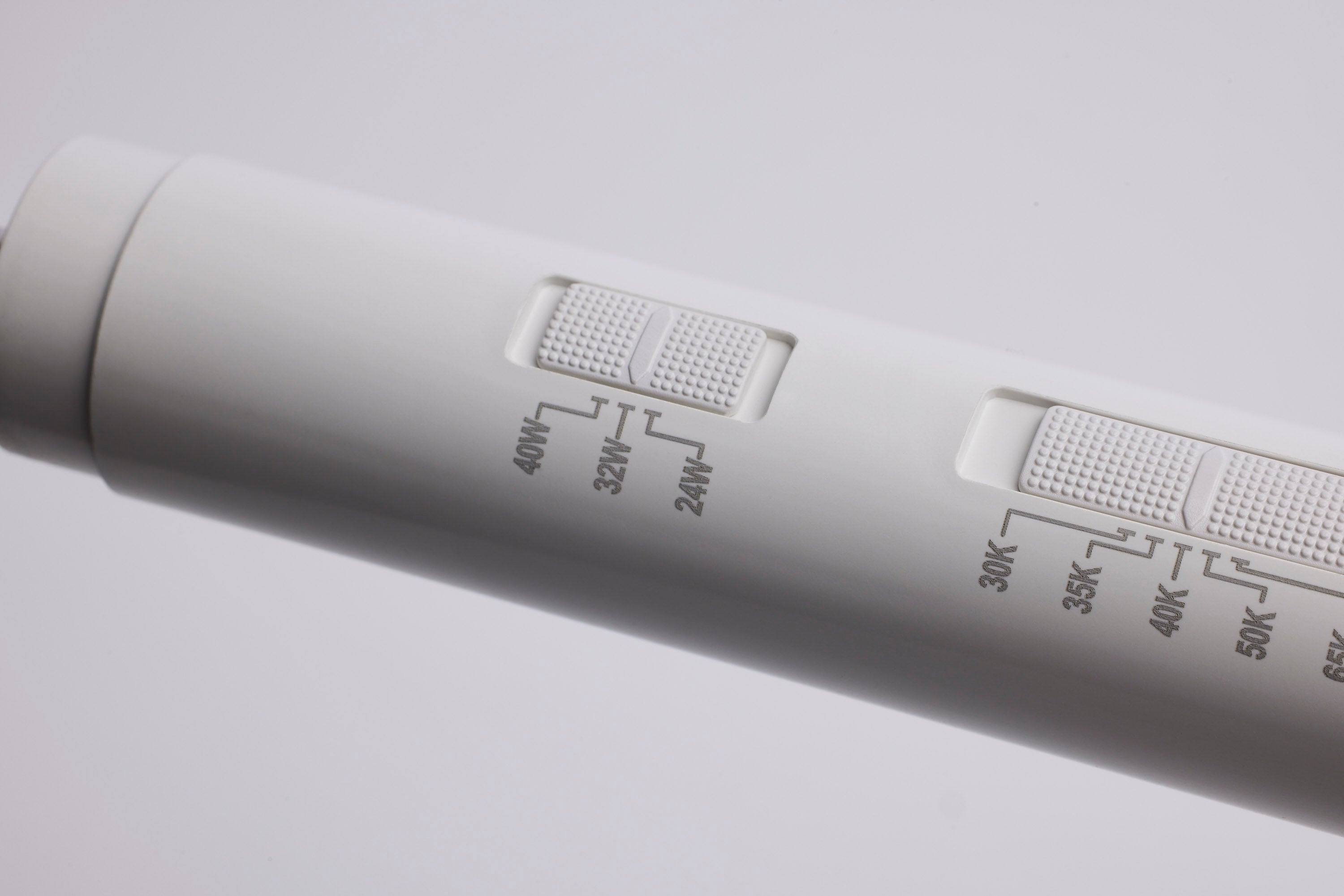

- 24/32/40 Wattage Selectable
- 30/35/40/50/65K CCT Selectable
- 8 Foot LED
Product Highlights

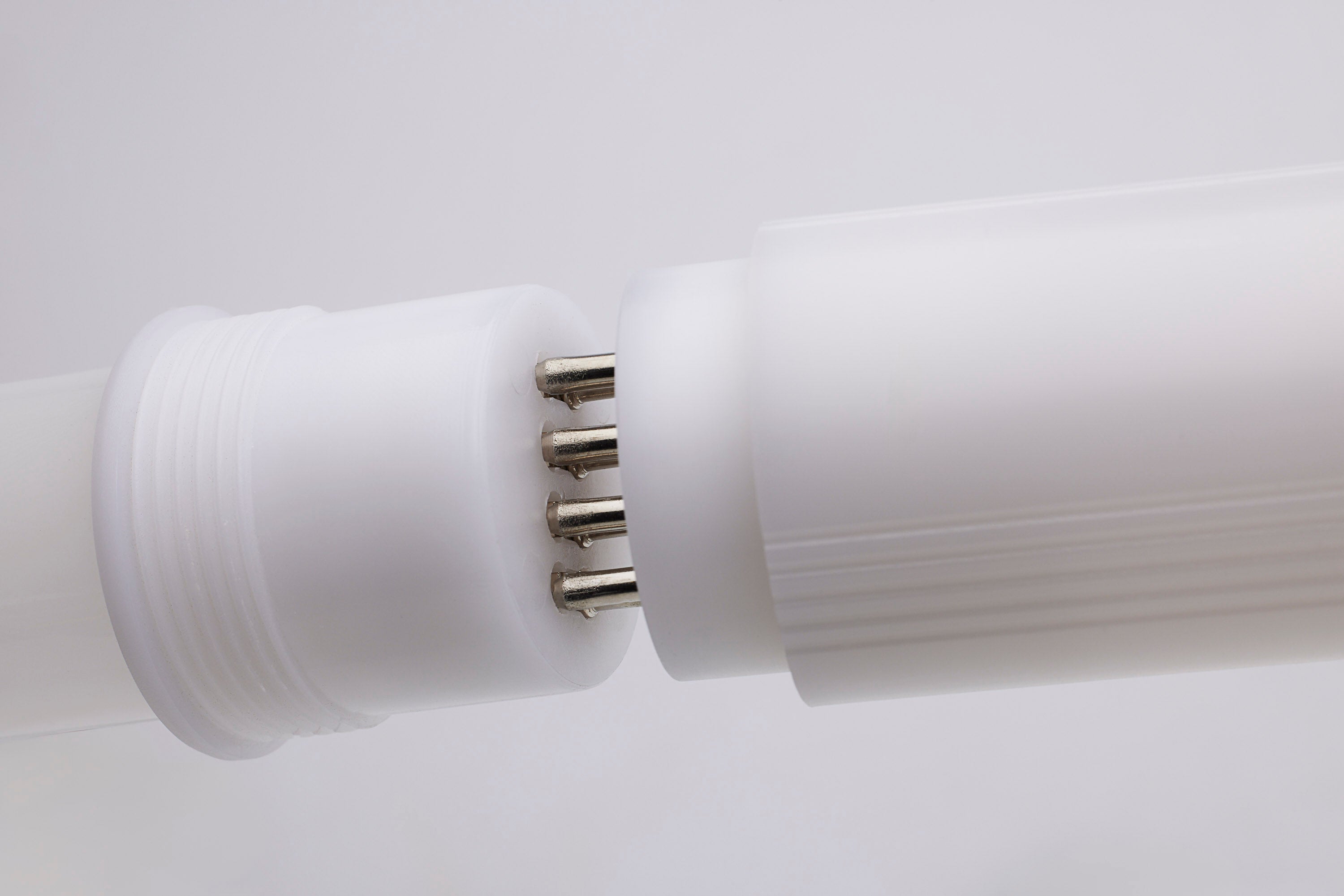

This versatile 2-piece design with interchangeable bases and adjustable power settings makes this 8ft LED lamp ideal for retrofitting existing fixtures or new installations.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11757
-
Country of Origin: China
Technical Specifications
-
Lamp Ballast Type: Type B
-
Ballasting Requirements: Ballast Bypass
-
Lamp Filament: LED
-
Material: Glass / Plastic
-
Fixture Type: Linear
-
Includes: (1) Set R17d Endcaps; (1) C-Clip
-
Status: Active
-
Style: Utility
-
Total Harmonic Distortion: <25%
-
CCT Selectable: True
-
Wattage Selectable: True
-
Finish Family: White
-
Amps: 0.200-0.087/0.267-0.116/0.333-0.144A
-
Has Camera: False
-
IOT Enabled: False
-
Nominal Length: 96.0
-
Power Factor: 0.9
-
SDS Class: LED_Lamp
-
Shatter Proof Type: PET Coated
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Fluor Equiv: 59W/86W/96W
-
Incandescent Equivalent: 100W
-
CCT (Kelvin Temp): 3000K/3500K/4000K/5000K/6500K
-
Hours Rated: 50000
-
Beam Angle (degree): 210
-
Color Temp: Soft White to Daylight
-
CRI: 80+
-
Operating Frequency: 50/60Hz
-
Operating Temp: -20C (-4F) to +45C (+113F)
-
Lumens: 3500L/4400L/5500L
-
Volts: 120V-277V
-
Watts: 24W/32W/40W
-

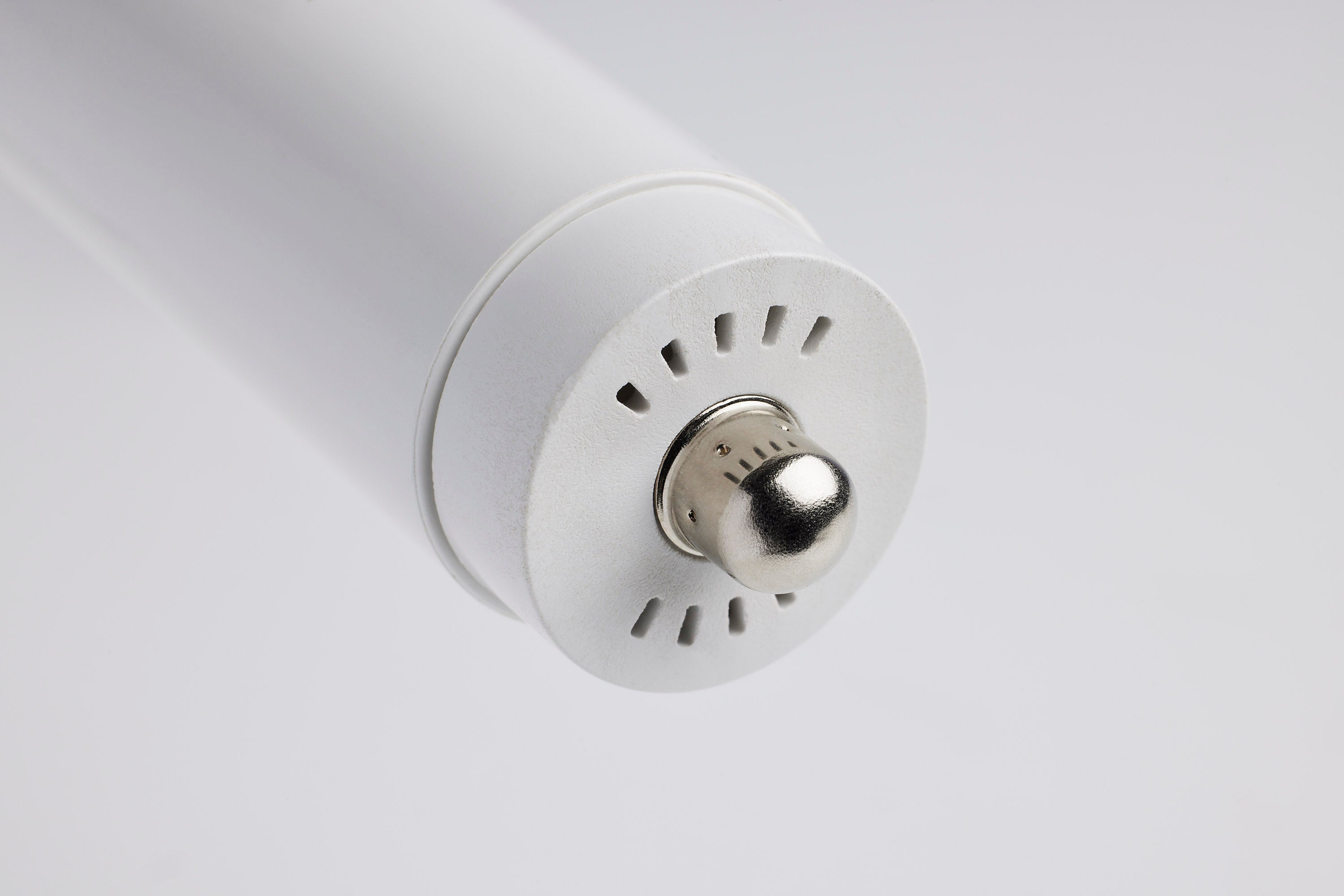

Lamp Base: Single Pin
-
Finish: WHITE
-
Housing Color: White
-
ANSI Base: Fa8
-
Lamp Type: T8
-
MOD Lamps: 1.0
-
MOL: 93.75
-
Rated For Enclosed Fixture: True
-
Length/Depth: 96 in
-
Width/Diameter: 1 in
-
Height: 1.25 in
-
Bulb: T8
-
Lamp Color: 3000K, 3500K, 4000K, 5000K, 6500K, Selectable CCT
-
Color Rendering: 82 CRI
-
Delivered Lumens: 5500
-
Enclosed Rated: Yes
-
Total Wattage: 40W
-
Bulb Hours: 50000
-
Bulb Kelvin: 3000K/3500K/4000K/5000K/6500K
-
Bulb Shape: T8
-
Diameter: 1
-
Beam Spread: 210
-
Bulb ANSI Base: Fa8
-
Bulb Base: Single Pin
-
Bulb Finish: White
-
Ballast Bypass Direct: Ballast Bypass
-
CEC Terse: Lawful for sale in California
-
Color Temprature: Soft White to Daylight
-
DLC Approved: Yes
-
DLC Classification: Standard
-
DLC ID: S-J3JX31
-
DLC Primary Use: Internal Driver/Line Voltage (UL Type B) Lamps
-
Efficacy: 145.83/137.50/137.50 LPW
-
Enclosed Fixture Use: Yes
-
Enclosure Rating: Not for use in fully enclosed vapor tight fixtures
-
FCC Compliant: Yes
-
Has Emergency Battery: No
-
JA8 Compliant: No
-
Lamp Ballast Type A/B/C: Type B
-
Lamp End Type: Double Ended
-
Location Rating: Damp
-
NSF Approved: Yes
-
Order In Multiples Of: 10
-
Pack Type: Box
-
Quantity In Pack: 1
-
RoHS Compliant: Yes
-
Shatter Proof Text: PET Coated
-
Short Description: 40T8/LED/96-CCT/BP/R2PC/1PK
-
Technology: LED
-
Title 20 Compliant: Exempt
-
Title 24 Compliant: No
