Satco S11754 T8 LED 30 watt 72 inches

Product Description

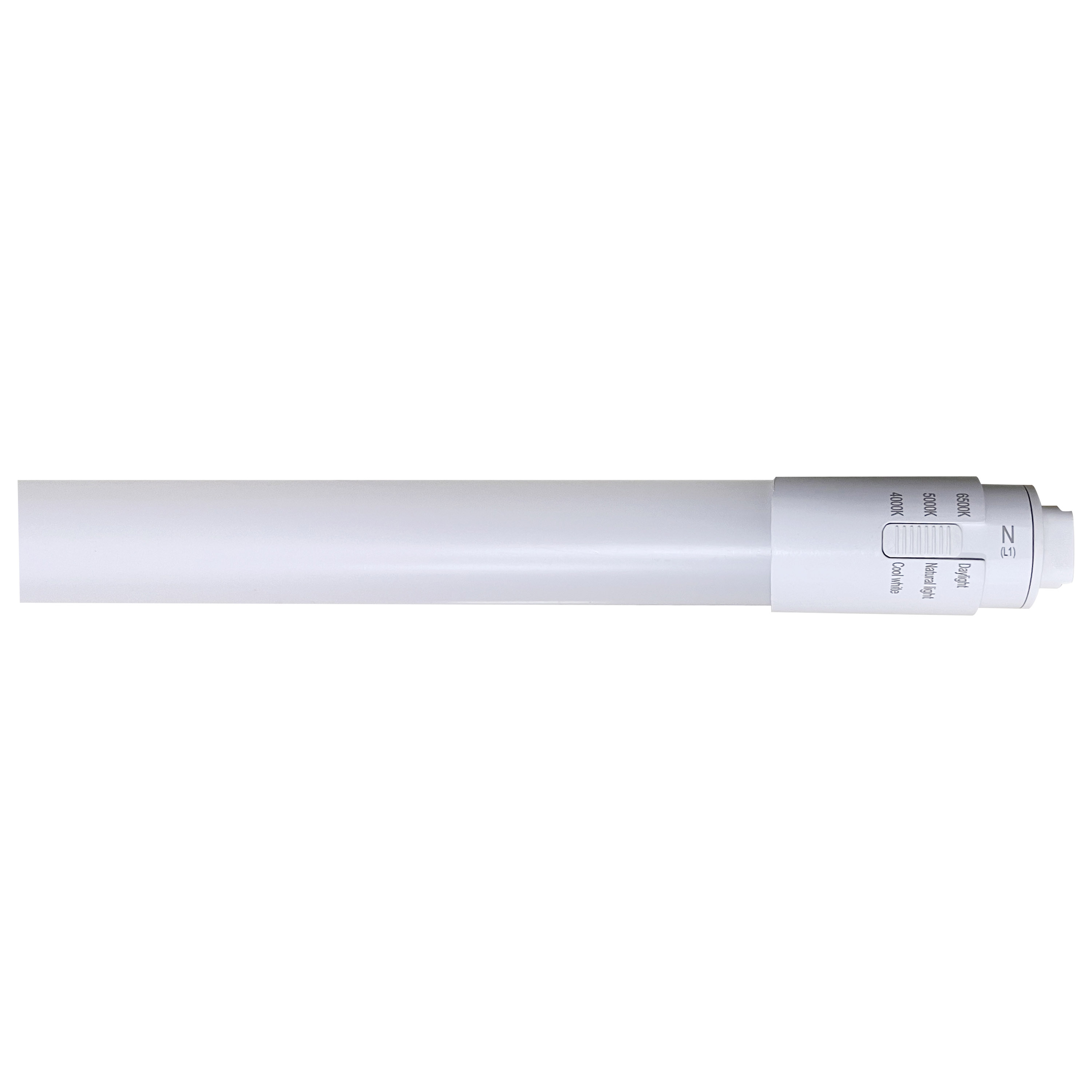

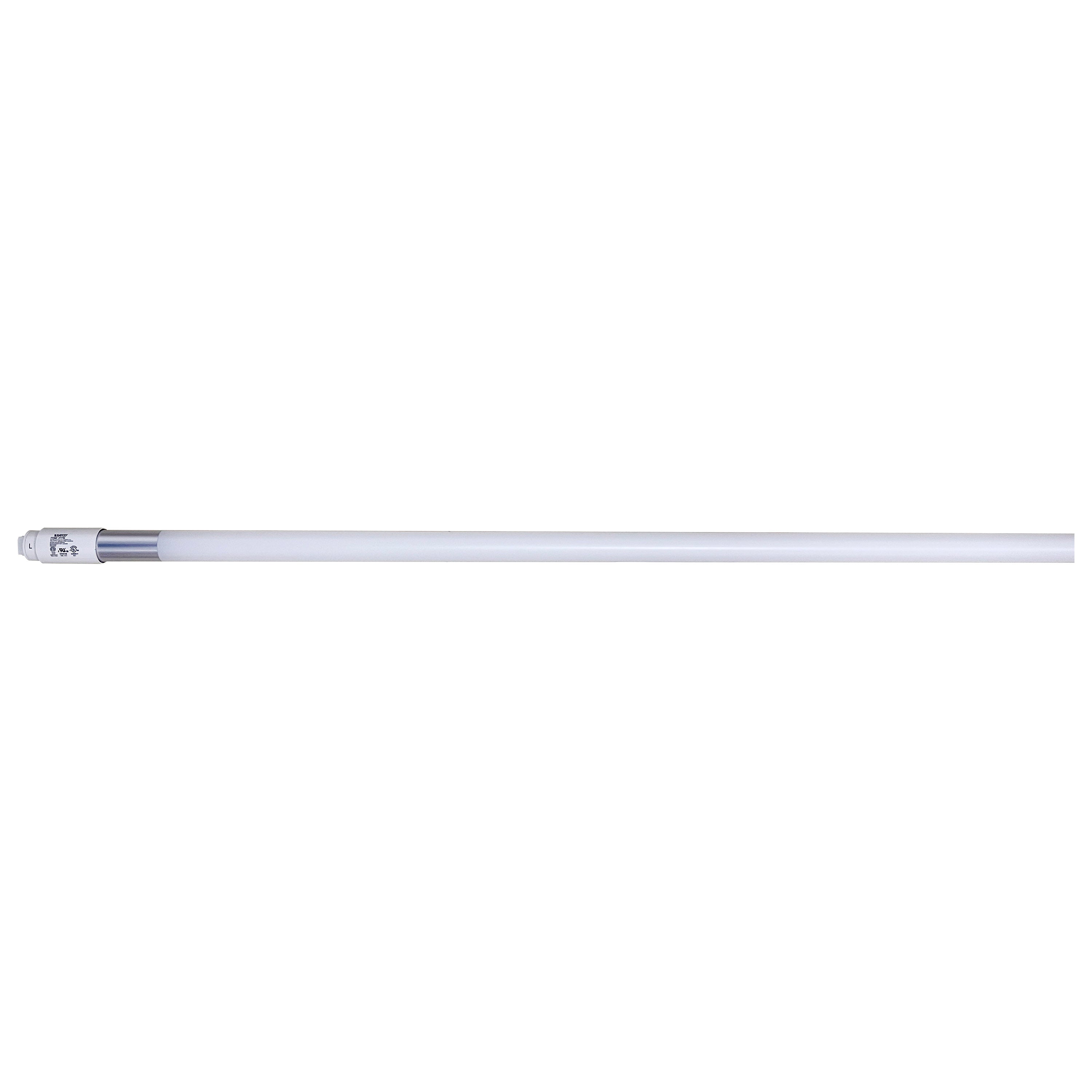

The SATCO S11754 T8 LED lamp is a 30-watt, 72-inch linear light designed for ballast bypass (Type B) installations. It features CCT selectable technology, offering multiple color temperatures, and a Recessed Double Contact HO/VHO base. This PET shatterproof coated lamp operates on 120-277 volts and is rated for damp locations and enclosed fixtures, providing a 180-degree beam angle.

• Recessed Double Contact HO/VHO Base for secure installation.
• CCT Selectable (4000K/5000K/6500K) for customizable lighting.
• PET Shatterproof Coated glass/plastic construction for durability.

Product Highlights

This 30W T8 LED lamp offers CCT selectable lighting, ballast bypass installation, and a durable PET shatterproof coating, ideal for various indoor applications.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S11754
• Country of Origin: China

Technical Specifications

• Brand: SATCO
• Ballast Type: Type B
• Ballast Requirement: Ballast Bypass
• Light Source Type: LED
• Material: Glass / Plastic
• Fixture Type: Linear
• Surge Protection: 1KV
• Total Harmonic Distortion (THD): <25%
• CCT Selectable: Yes
• Wattage Selectable: No
• Finish: White
• Amperage: 0.250-0.108A
• Lens Finish: Frost
• Lens Material: Glass
• Length: 72 inches
• Operating Position: Universal
• Power Factor: 0.9
• Shatter Proof Type: PET Coated
• Location Use: Indoor
• Fluorescent Equivalent: 87W
• Incandescent Equivalent: 125W
• Color Temperature (CCT): 4000K/5000K/6500K
• Rated Life: 50000 hours
• Beam Angle: 180 degrees
• CRI: 83
• Operating Frequency: 50/60 Hz
• Operating Temperature: -20C to +45C
• Lumens: 4100-4300L
• Input Voltage: 120-277V
• Wattage: 30W
• Lamp Base: Recessed Double Contact HO/VHO
• ANSI Base: R17d
• Lamp Type: T8
• Rated For Enclosed Fixture: Yes
• IP Rating: IP20
• Location Rating: Damp
• Certifications: ['FCC Compliant', 'NSF Approved', 'RoHS Compliant', 'cRUus Recognized Component', 'cULus Certified', 'cULus Classified', 'cETLus Listed']
• Features: Frosted, Non Dimmable
• Efficiency: 84.21 lm/W
• Diameter: 1 inch
• Lamp End Type: Double Ended
