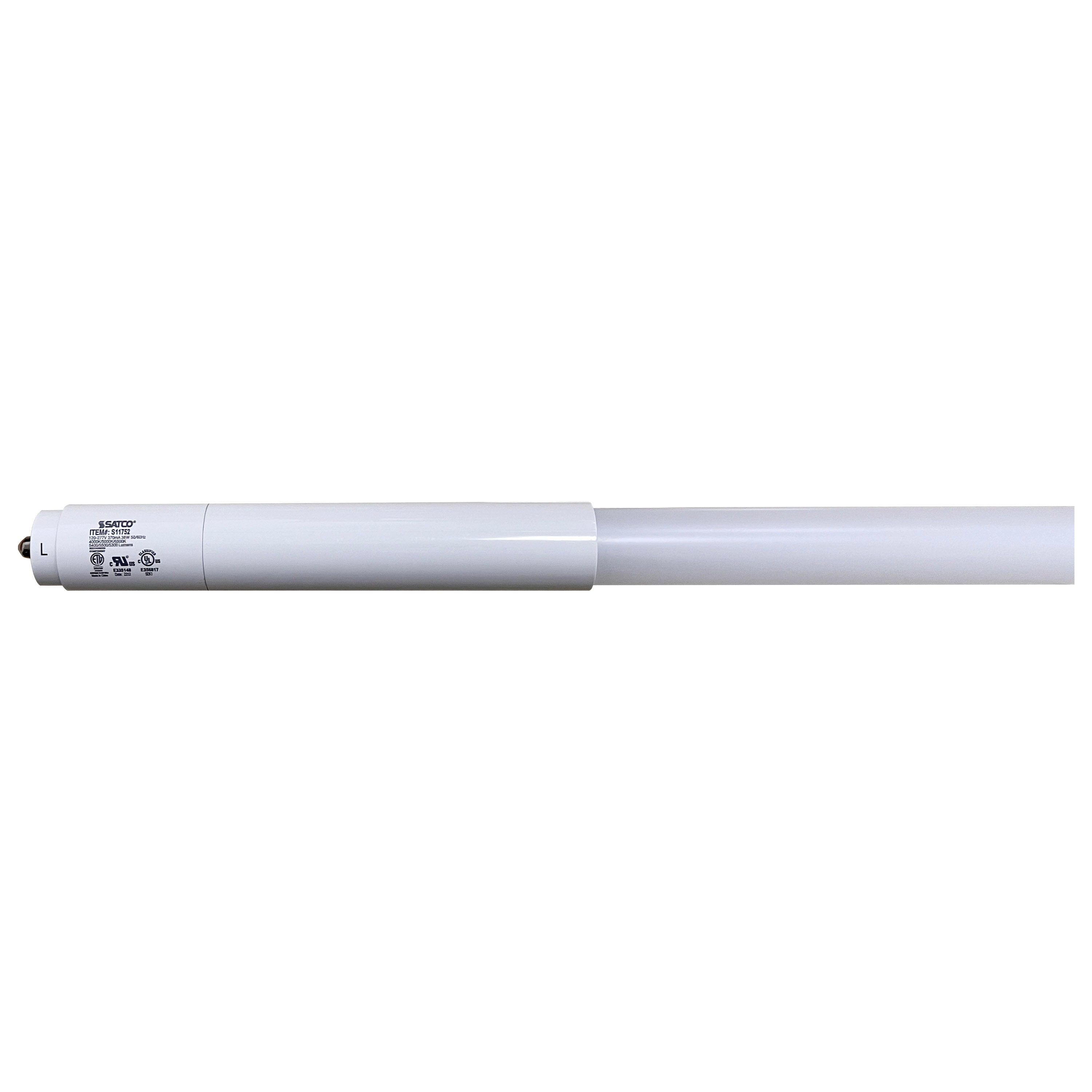

Satco S11752 LED Lamp 38 W (96 in) Replacement 20847252

Product Description

The SATCO S11752 LED lamp features a 38 W wattage and is a direct replacement for fluorescent T8 or T12 lamps. This linear lamp has a Fa8 single pin base, T8 shape, and provides between 5300 and 5500 Lumens. It has a 50000-hour average life and a selectable color temperature of 4000K, 5000K, or 6500K.

• Glass/Plastic Material
• PET Coated Shatter-Proof
• Direct replacement for fluorescent T8 or T12 lamps

Product Highlights

This LED lamp is compatible with S8002 Emergency Driver and is CCT Selectable. It is suitable for enclosed fixtures and provides a spread beam with a 180-degree angle.

Product Information

Standard Information

• Brand: SATCO
• Manufacturer Part Number: S11752
• Country of Origin: CN

Technical Specifications

• Manufacturer Item Status: Active
• Manufacturer Name: SATCO Lighting
• Brand Name: SATCO
• Alternative Part Number: 20847252
• Average Life: 50000
• Average Life UOM: hr
• Ballast Type: Type B Bypass
• Beam Angle: 180
• Beam Angle UOM: deg
• Beam Type: Spread
• Color: Cool White/Daylight
• Color Rendering Index (CRI): 83
• Color Temperature: 5000 Kelvin
• Color Temperature UOM: K
• Country Of Origin: CN
• Designation: 38T8/LED/96-CCT/BP/FA8
• Fixture Type: Enclosed
• IDEA Index ID: 20847252
• Incandescent Equivalent: 150
• Incandescent Equivalent UOM: W
• Lamp Base Type: Fa8 Single Pin
• Lamp Finish: White
• Lamp Type: Linear
• Lumens: 5400, 5500, 5300
• Lumens UOM: Lumens
• Shape: T8
• Type: LED
• Voltage Rating: 120 to 277
• Voltage Rating UOM: V
• Wattage: 38
• Wattage UOM: W
• Lamp Ballast Type: AB
• Ballasting Requirements: Ballast Bypass
• Lamp Filament: LED
• Material: Glass / Plastic
• Status: Active
• Style: Utility
• Surge Protection: Built-in surge protection - 1KV
• Total Harmonic Distortion: <25%
• CCT Selectable: Yes
• Wattage Selectable: No
• Finish Family: White
• Amps: 0.317-0.137A
• Has Camera: No
• IOT Enabled: No
• Lens Finish: Frost
• Lens Material: Glass
• Nominal Length: 96.0
• Operating Position: Universal
• Power Factor: 0.9
• SDS Class: LED_Lamp
• Shatter Proof Type: PET Coated
• Indoor Outdoor: Indoor
• Product Technology: LED
• Fluor Equiv: 59W
• CCT (Kelvin Temp): 4000K/5000K/6500K
• Hours Rated: 50000
• Operating Frequency: 50/60Hz
• Operating Temp: -20C (-4F) to +45C (+113F)
• Volts: 120V-277V
• Watts: 38W
• Lamp Base: Single Pin
• Finish: WHITE
• Housing Color: White
• ANSI Base: Fa8
• MOD Lamps: 1.0
• MOL: 93.88
• Rated For Enclosed Fixture: Yes
• Input Voltage: 120V–277V
• Operation: Type B (Ballast Bypass)
• Base: Single Pin (FA8)
• MOD (Diameter): 1.00 in
• Color Temperature Range: Cool White to Daylight
• Beam Spread: 180°
• Rated Life: 50,000 hours
• THD: <25%
• Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
• Location Rating: Damp
• DLC Approved: Yes (DLC ID: S-QP7NDI)
• Certifications: cRUus, ETLus, cULus; FCC Compliant; NSF Approved; RoHS Compliant
• Energy Star: No
• California Status: Lawful for sale; Title 20/24 Exempt (Base Not Regulated)
• Light Type: LED
• Special Feature: Frosted
• Bulb Shape Size: T8
• Connectivity Technology: Normal bulb
• Controller Type: Push Button
• Power Source: Corded Electric
• Light Source Type: Led
• Light Source Wattage: 38 Watts
• Light Source Operating Life: 50000 Hours
• Material Type: copper
