Product Description

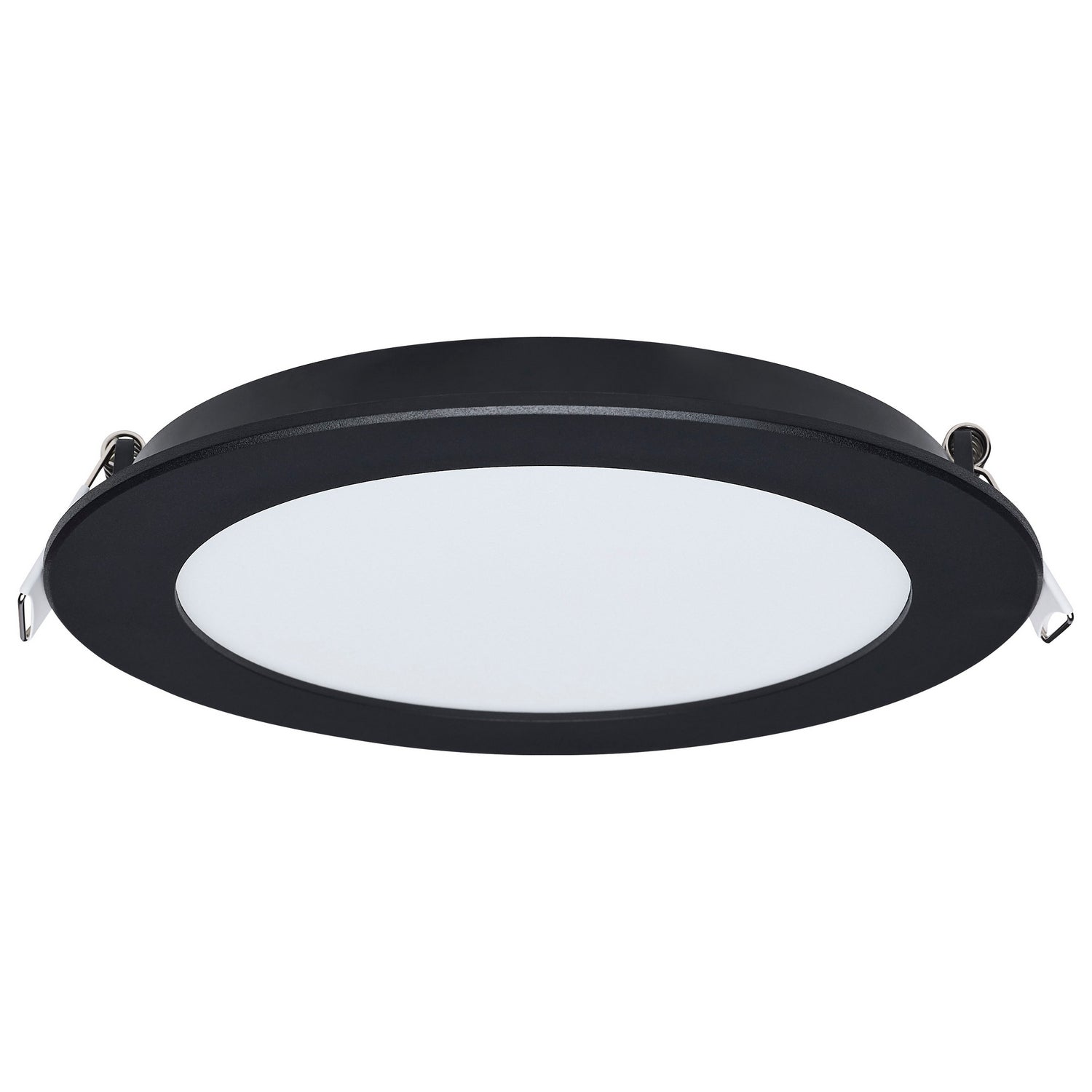

The SATCO S11686 is an 11 Watt LED Direct Wire Performer Series Downlight, designed for versatile indoor lighting applications. This 6-inch round fixture features a remote driver and offers 5 CCT selectable color temperatures (2700K/3000K/3500K/4000K/5000K), providing 1000 lumens of light at 120V. With a 90+ CRI and 50,000-hour rated life, it ensures high-quality, long-lasting illumination. It is dimmable, IC rated, airtight, and IP44 rated for wet locations, making it suitable for bathrooms and closets.
- 5 CCT selectable (2700K/3000K/3500K/4000K/5000K) for adaptable lighting

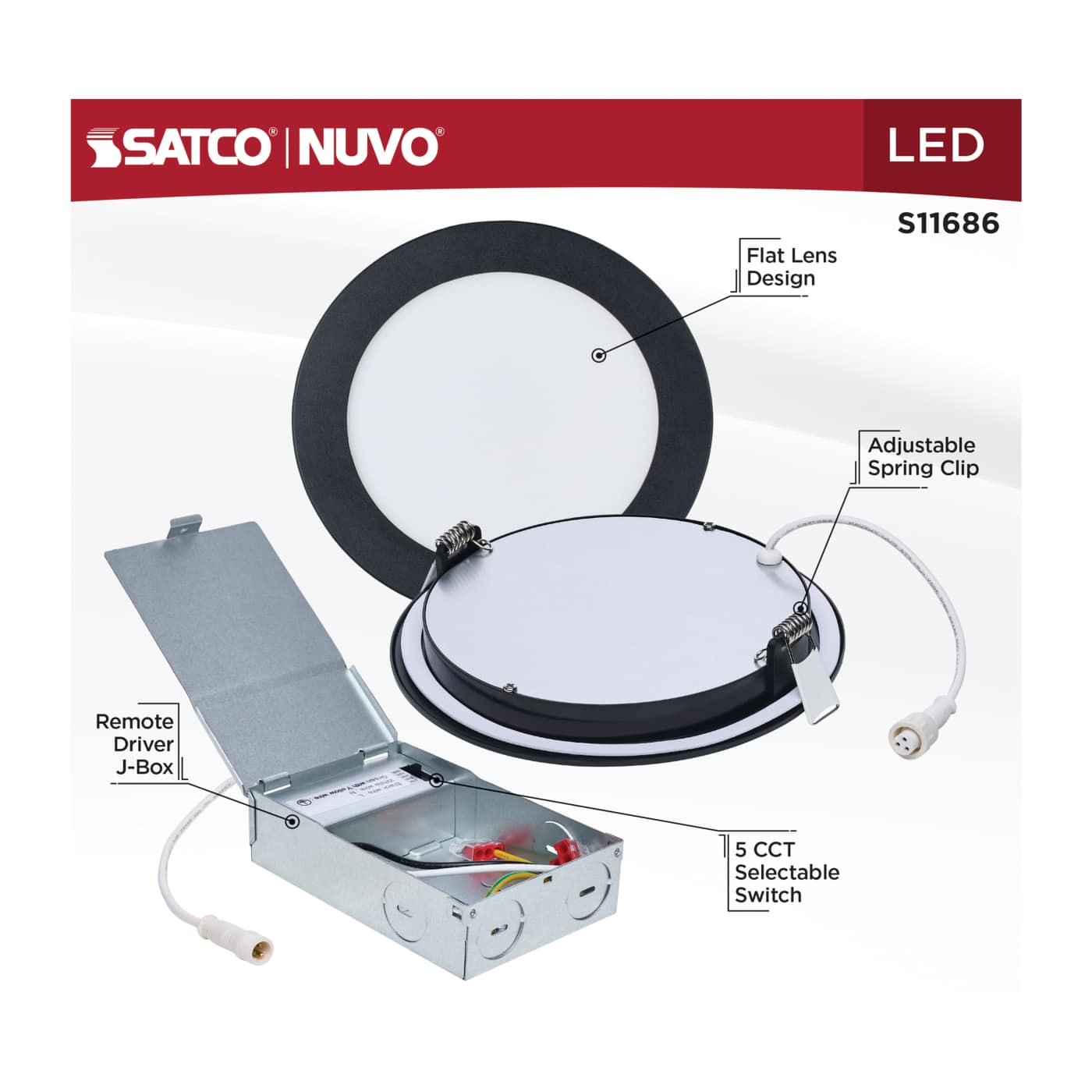

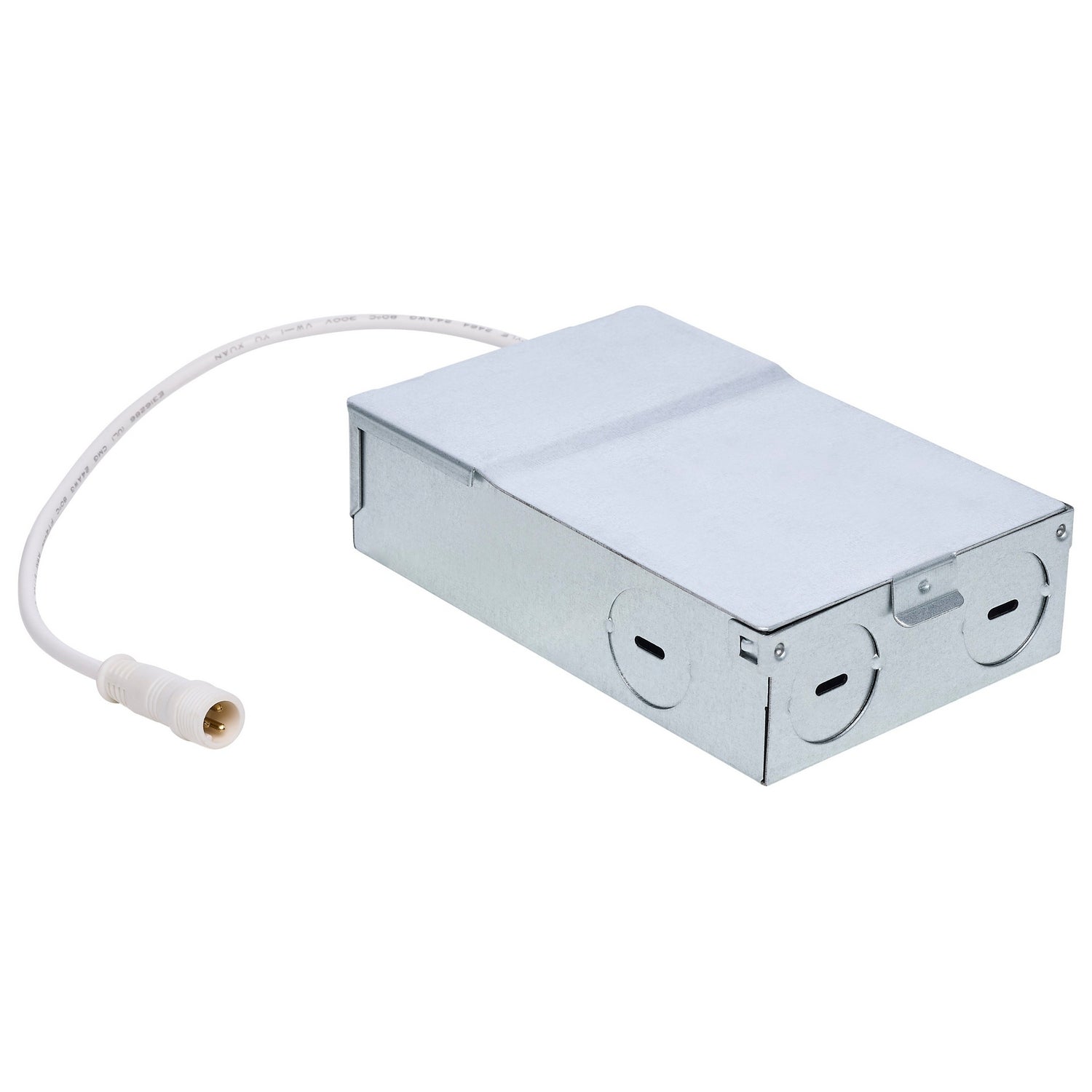

- Integrated LED with remote driver for sleek, low-profile installation
- IC Rated, Air Tight, and IP44 Wet Location rated for diverse indoor environments
Product Highlights
Versatile 11W LED downlight with selectable CCT, dimmable functionality, and wet location rating for diverse indoor applications.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11686
-
Country of Origin: Vietnam
Technical Specifications
-
Company: SATCO
-
Mounting Height: 2.28 inches
-
Bulb Included: Integrated
-

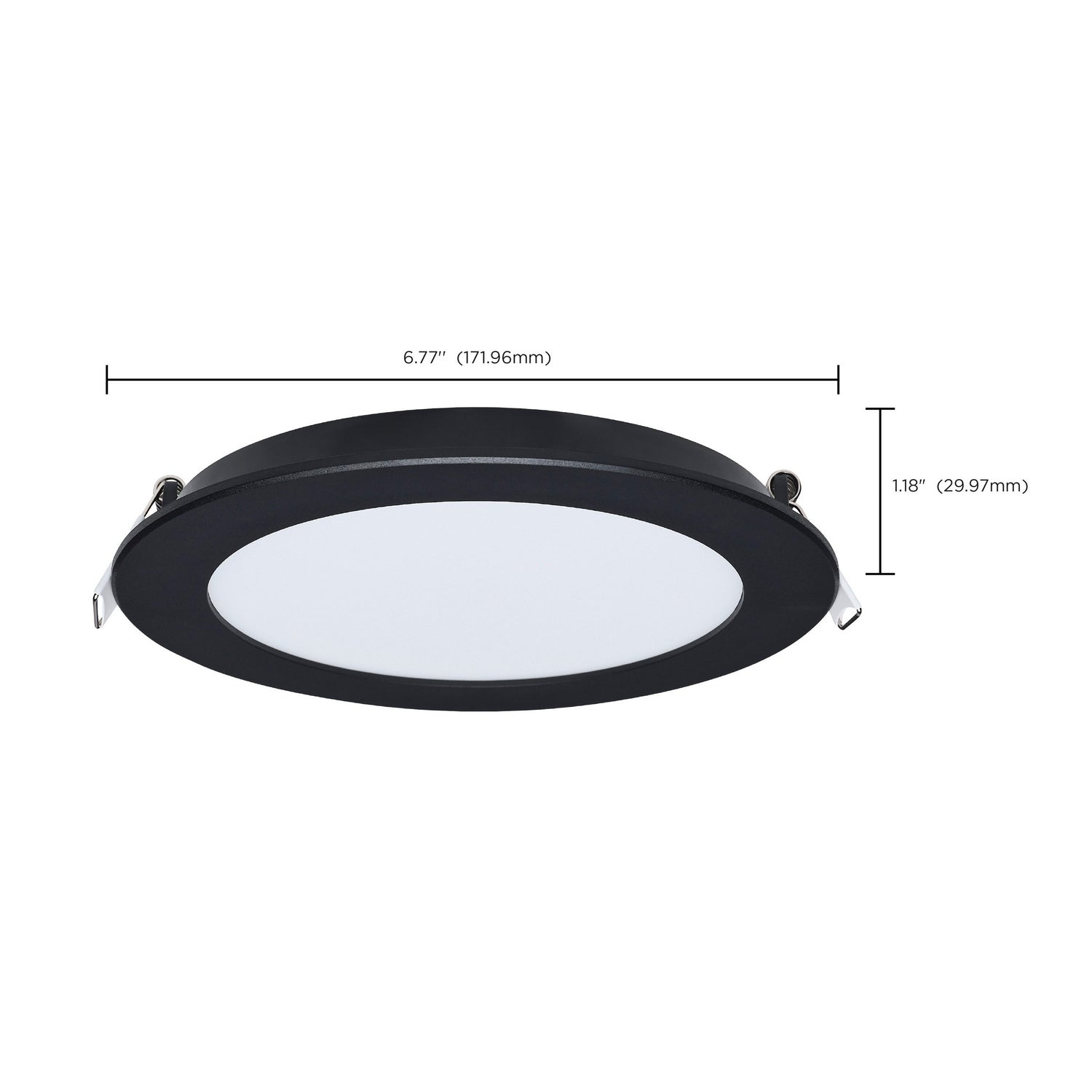

Diameter: 6.77 inches
-
Material: Plastic
-
Fixture Type: Remote Driver LED Downlight
-
Style: Utility
-
Surge Protection: Built-in 2.5KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish: Black
-
Cable Type: FT4 cable between driver and lighting head
-
Amperage: 0.110A
-
Mounting Diameter: 6.18 inches
-
Lens Finish: Matte Frosted
-
Lens Material: Polycarbonate (PC)
-
Power Factor: >0.9
-
Sloped Ceiling Compatible: Yes
-
Indoor/Outdoor Use: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 75W
-
Color Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Life: 50000 Hours
-
Beam Angle: 110 degrees
-
CRI: 90+
-
Dimming Type: Linear Dimming, Phase cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -20C to +40C
-
Luminous Flux: 1000 Lumens
-
Input Voltage: 120V
-
Wattage: 11W
-
Lamp Base: Integrated
-
Fixture Shape: Round
-
Air Tight: Yes
-
IC Rated: Yes
-
IP Rating: IP44
-
Location Rating: Wet
-
Efficacy: 90.91 LPW
-
Clearance Height: 2 inches
-
Connection: Hardwire
-
Dimmable Range: 100 to 10 percent
-
Dimmable Function: 120V only
-
Flicker Free: Yes
-
Trim Material: Plastic (PS)
