Product Description

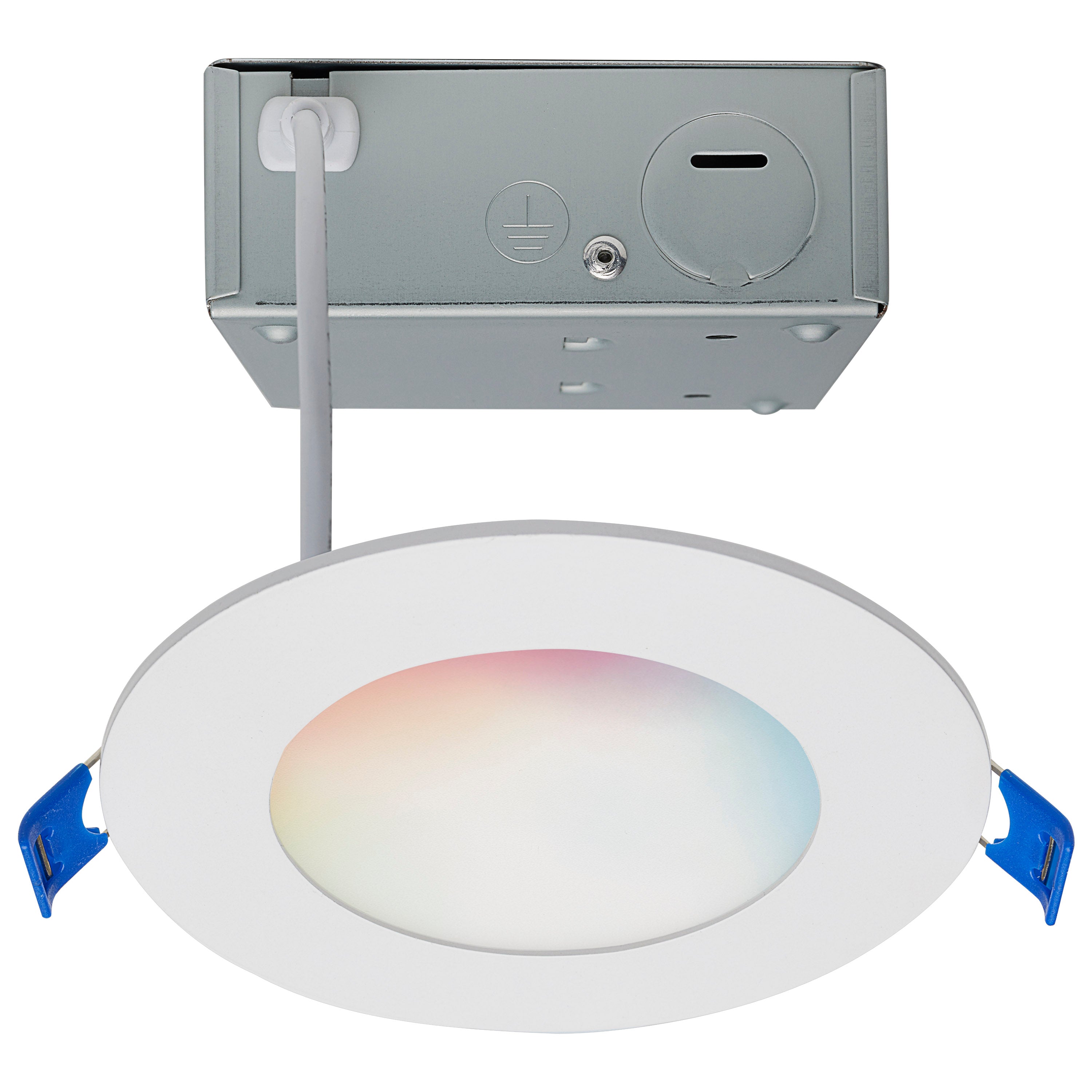

The SATCO S11560 LED slimfit downlight with STARFISH technology is the ultimate choice for smart lighting and ambiance control. This 9W, 120V LED recessed downlight is ideal for transforming residential and multi-family environments. Customize tunable white color temperatures from 2000K to 5000K or choose from millions of colors on the RGB spectrum from your mobile device.
- STARFISH smart enabled product
- Compatible with Google Home, Siri, Alexa, and SmartThings
- Dimmable with app
Product Highlights
This 4-inch round downlight features a flat lens, 90 CRI, and is wet location rated. It supports build scenes, remote access, set schedules and voice control.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: S11560
-
Country of Origin: TH
Technical Specifications
-
Wattage: 9W
-
Voltage: 120V
-
Shape: Round
-
Application: Indoor
-
Dimmable: Yes-Dimmable
-
CCT: 2,000/2,700K,3,000K,3,500K/4,000K,5,000K
-
Type: LED Recessed Downlight
-
Manufacturer Item Status: Active
-
Manufacturer Name: SATCO Lighting
-
Brand Name: SATCO
-
UPC: 045923115608
-
Alternative Part Number: 20730999
-
Average Life: 50000 hr
-
Color Rendering Index (CRI): 90
-
Color Temperature: 2000 to 5000 K
-
Country Of Origin: TH
-
Fixture Wattage: 9 W
-
Housing Material: Aluminum
-
IDEA Index ID: 20730999
-
Lamp Type: LED
-
Lens Type: Polycarbonate
-
Lumens: 540 Lumens
-
Mounting Type: Ceiling
-
Recessed Trim Type: Shower/Ultra Thin
-
Voltage Rating: 120 VAC
-
Model#: S11560
-
SKU: SS11560
-
Starfish Communication Protocol: WiFi-2.4GHz
-
Diameter: 5.0
-
Dimmable Text: Smart-Starfish App only
-
Material: Polycarbonate/Aluminum
-
Fixture Type: Remote Driver LED Downlight
-
Status: Active
-
Style: Modern
-
Total Harmonic Distortion: <30%
-
Starfish Voice Assistants Supported: Alexa, Google Home, Siri, SmartThings
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
Finish Family: White
-
Amps: 0.075A
-
Has Camera: No
-
IOT Enabled: Yes
-
Lens Finish: Frosted
-
Power Factor: >0.9
-
SDS Class: LED_Fixture
-
Starfish Software Supported: Tuya/Starfish App
-
Indoor Outdoor: Indoor
-
Product Technology: LED
-
Incandescent Equivalent: 45W
-
Operating Frequency: 60Hz
-
Operating Temp: -20C (-4F) to +40C (+104F)
-
Lamp Base: Hard-Wired
-
Finish: WHITE
-
ANSI Base: Direct Wire
-
Fixture Shape: Round
-
Hours Rated: 50000
-
Beam Angle (degree): 110
-
Color Temp: Warm to Cool White/Color Changeable
-
CRI: 90+
-
Dimming Type: Smart-Starfish App only
-
Item model number: S11560
-
Item Package Quantity: 1
-
Power Source: Corded Electric
-
Switch Installation Type: Down Lighting
-
Batteries Included?: No
-
Batteries Required?: No
-
Type of Bulb: LED
-
Brand Category: Direct Wire Recessed
-
Brand Product Description: 9W LED DW LP DL 4 in. Rnd - SF IOT Tune Wht and RGB - 120V 90 CRI Wht
-
Lamping Category: LED
-
Lamping Included: Bulbs Not Included
-
Lamping Type: Intergrated LED
-
Wattage Max: 9.00
-
Height: 1
-
Weight: 0.88
-
Width: 5
-
ADA: Yes
-
Energy Star: Yes
-
Prop 65: Yes
-
Title 24: Yes
-
UL Ratings: cETLus Wet
-
Integrated LED: Y
-
SMART Enabled: Y
-
Down Light Fixture: Y
-
Uplight Fixture: N
-
Hardwired Fixture: Y
-
Bulb Average Hours: 50000
-
Supported Bulb Color Temp: Warm to Cool White\Color Changeable 2000-5000
-
Supported Bulb Spread: 110
-
Slope Ceiling Ready: Yes
-
Fixture Slope Mount Included: No
-
Dimmer Range: 100 to 10 percent
-
Dimmer Specifications: Only with Starfish App
-
Electrical Amperage: 0.075A
-
Glass Features: Frost Polycarbonate (PC)
-
Downlight Diameter: 4"
-
Downlight Type: Smart / RGB, Thin / Wafer
-
Rated Hours: 50,000 Hours
-
Special Features: CCT Selectable, Energy Star Rated, IC Rated, RGB Tunable, Wet Location Rated
-
IP Rating: IP65
-
Case Qty: 20
-
EA Height: 5.31
-
Bulb Color: CCT Selectable
-
Avg Rated Hours: 50000Hr
-
Bulb Shape: Circular LED Module
-
Item Type: LED Fixture
-
Ansi Base: Direct Wire
-
Approvals/Ratings: FCC, Energy Star, ROHS Compliant, Title 24 Compliant, ETL Listed, Wet Location
-
LED Features: Yes-Dimmable
-
Size: 4''
-
Lenz Color: Frosted
-
Housing Color: White
-
Beam Spread: 110º
-
MOL: 5.78
-
MOD: 5
