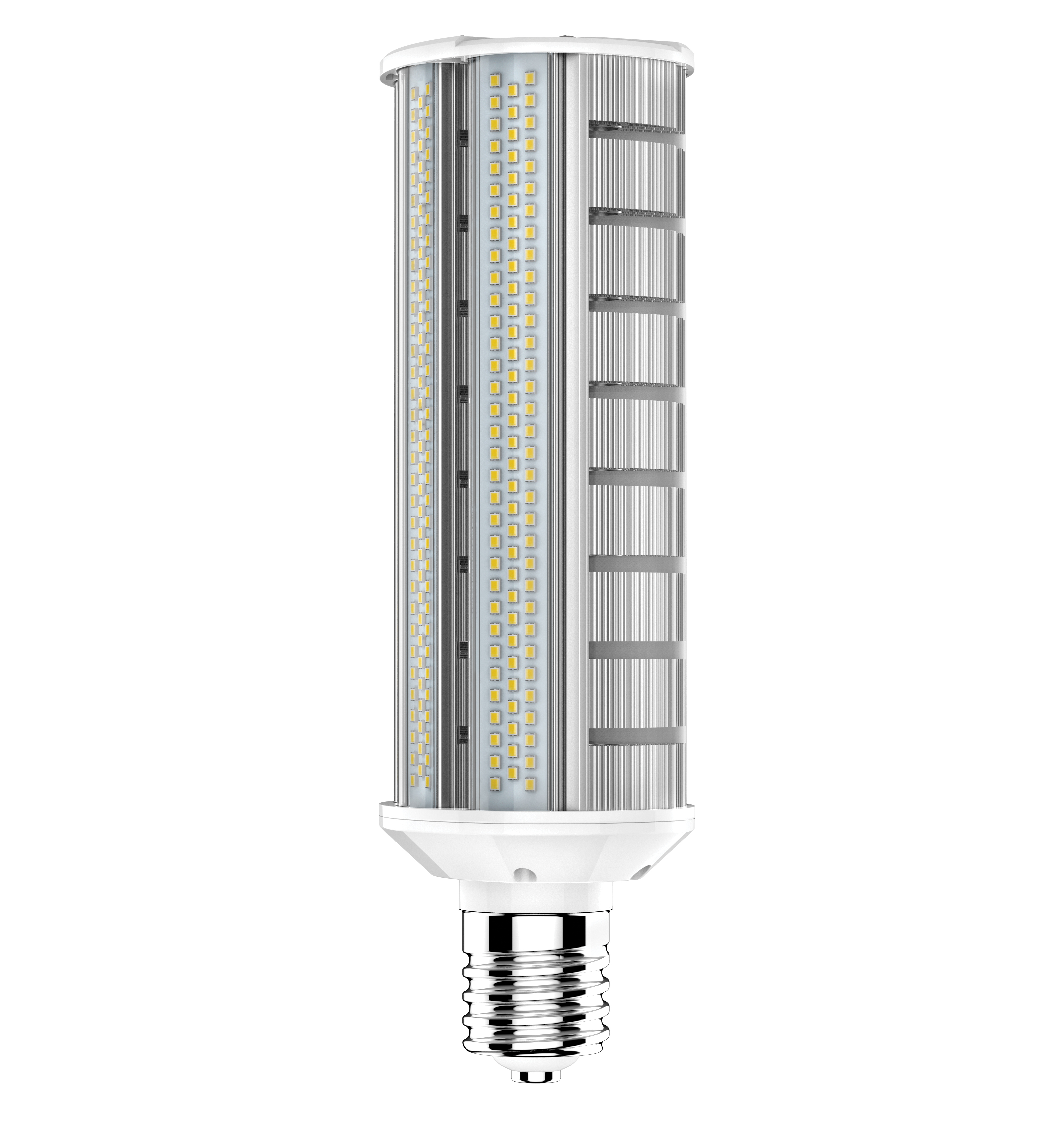

Satco-nuvo S8987 60W Led Mogul Base Lamp 5000K 100-277V

Product Description

The SATCO-NUVO S8987 is a 60-watt LED hi-lumen lamp built for commercial fixture applications requiring a mogul base. It operates as a Type B ballast bypass lamp, meaning it connects directly to line voltage without relying on an existing ballast. The wide input voltage range of 100 to 277 volts makes it suitable for a broad range of commercial electrical systems. Rated at 5000K, it produces a daylight-range color temperature well-suited to warehouses, big-box retail spaces, and similar high-bay environments. Horizontal operation is required for proper lamp performance and longevity.

This lamp is intended for commercial and industrial lighting installations where high-lumen output and energy efficiency are priorities. Typical applications include fluorescent fixture retrofits in warehouses, distribution centers, manufacturing facilities, and commercial office or retail spaces using mogul-base sockets. The Type B ballast bypass configuration suits facilities looking to eliminate ballast maintenance and reduce long-term operating costs. Installation must be performed in horizontal orientation only.

Key Features

• 60-watt LED output in a mogul base form factor for commercial fixtures
• Type B ballast bypass design for direct line-voltage wiring without a ballast
• Wide input voltage range of 100 to 277 volts for versatile commercial electrical compatibility
• 5000K daylight color temperature suited to task and industrial lighting environments
• Horizontal operation rating for proper thermal management and rated lifespan

Compatibility

Designed as a Type B ballast bypass replacement LED lamp for commercial mogul-base fixtures operating between 100 and 277 volts in horizontal orientation.

Installation Notes

This lamp must be installed by a qualified electrician in compliance with the NEC and all applicable local codes. Because this is a Type B ballast bypass lamp, the existing ballast must be removed and the fixture rewired to accept direct line voltage before installation. Disconnect and lock out power to the fixture completely before beginning any wiring work. Confirm horizontal mounting orientation before energizing, as operation outside the rated position can reduce lamp life.

Technical Specifications

• Wattage: 60 watts
• Color Temperature: 5000K
• Base Type: Mogul
• Ballast Type: Type B Ballast Bypass
• Input Voltage: 100-277 volts
• Operating Position: Horizontal only
• UPC: 045923089879

Standard Information

• Brand: SATCO-NUVO
• Manufacturer Part Number: S8987
